Model: 7TS7M
100+ units in stock
Product Information
  1. High resolution multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop

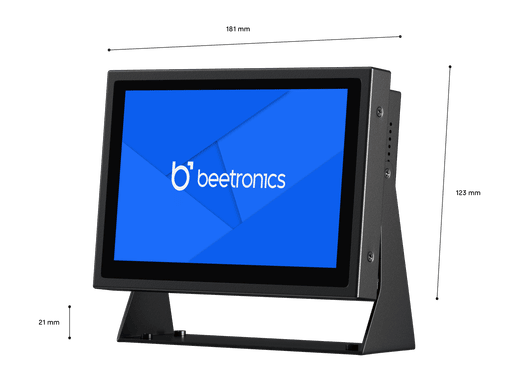

  4. External dimensions: 7.1 x 4.8 x 1.6 inches
Select Display Type
Display Type
Monitor
Touchscreen
CAD $549.00
Order by 11.00 p.m. for Delivery on Monday

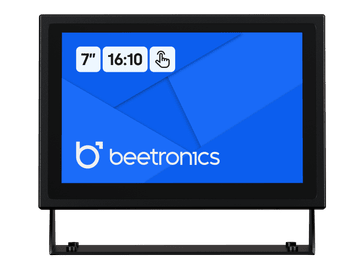

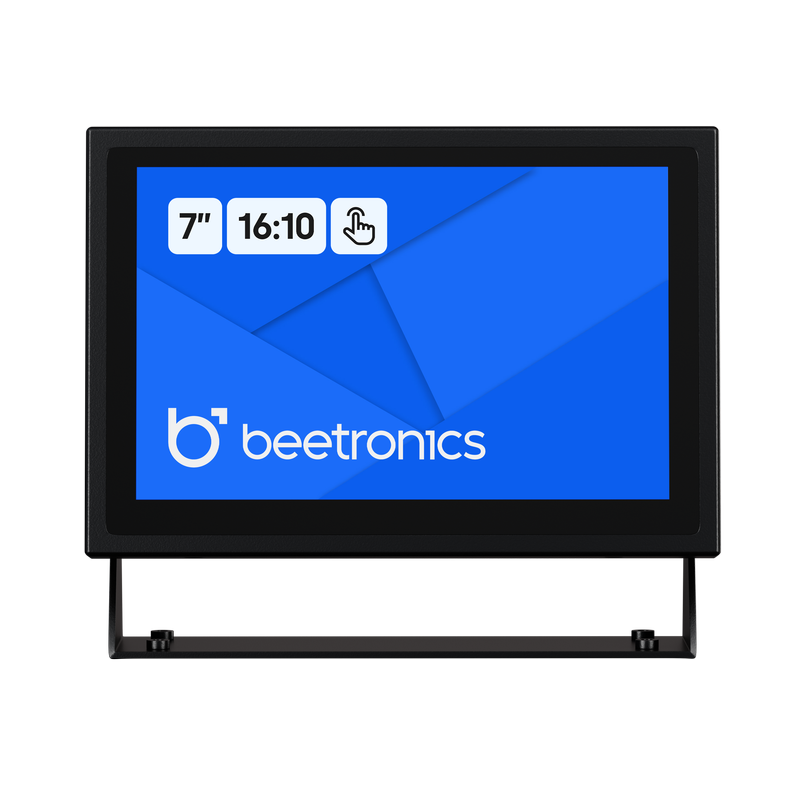

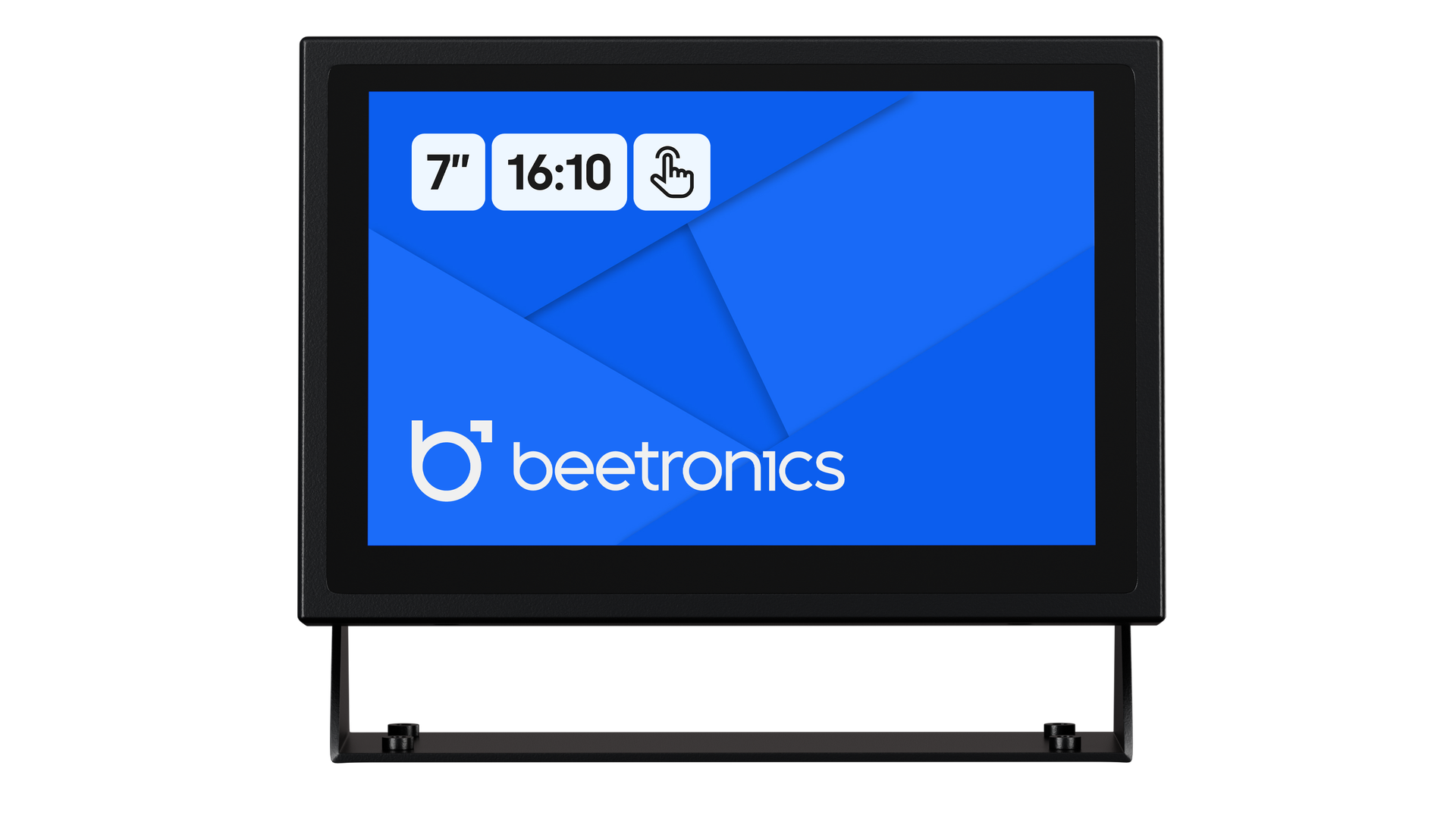

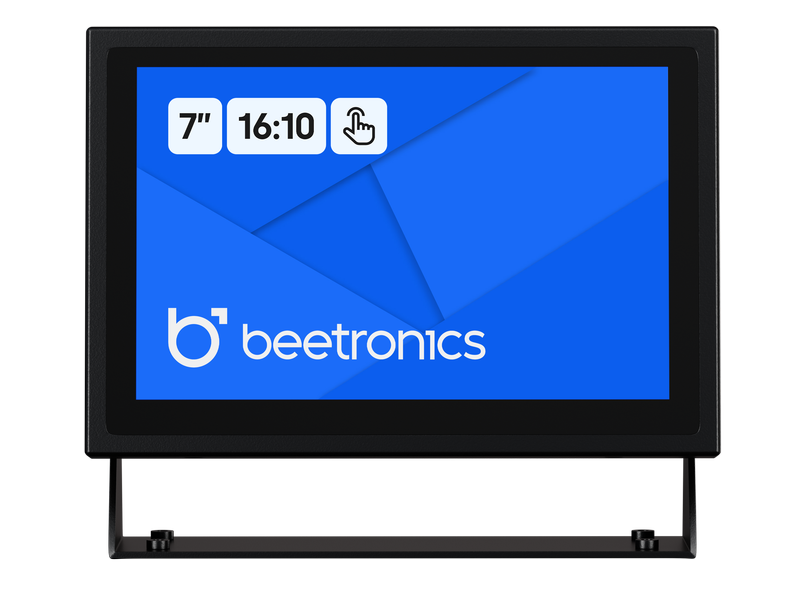

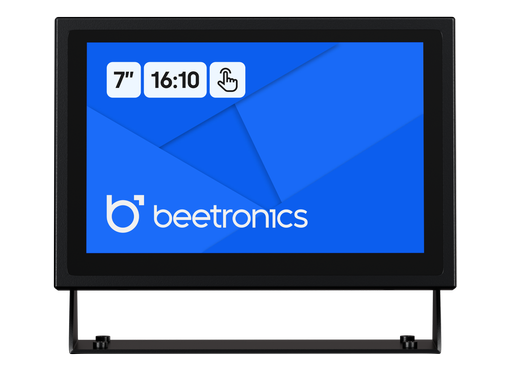

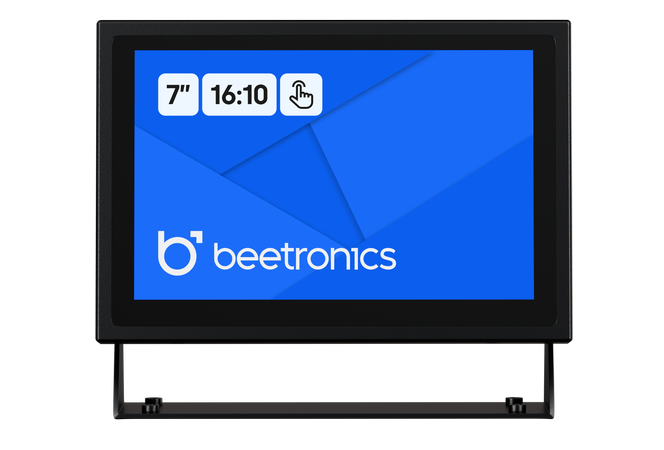

This Full HD 7-inch touchscreen features a reliable multi-touch panel which ensures consistent and precise operation. The 7TS7M delivers best-in-class picture quality with exceptional 178° viewing angles. It is compatible with devices running Windows, macOS, ChromeOS, or Linux. Designed for professional use, this touchscreen monitor is easy to integrate and built for intensive applications.

Product Highlights
7 Inch Touchscreen Metal

Full HD Multi-Touch Panel

Equipped with a native Full HD IPS panel, this touchscreen offers outstanding image quality with vibrant colors and excellent 178° viewing angles. The 7TS7M includes a capacitive multi-touch screen that supports up to 10 simultaneous touch points. This allows for precise operation and enables gestures such as swiping, zooming, and pinching.

7 Inch Touchscreen Metal

Compatible With Windows,
macOS, ChromeOS and Linux

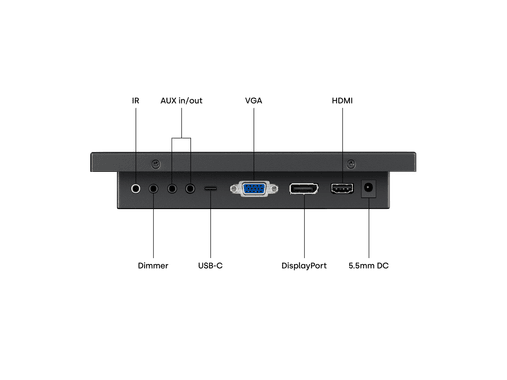

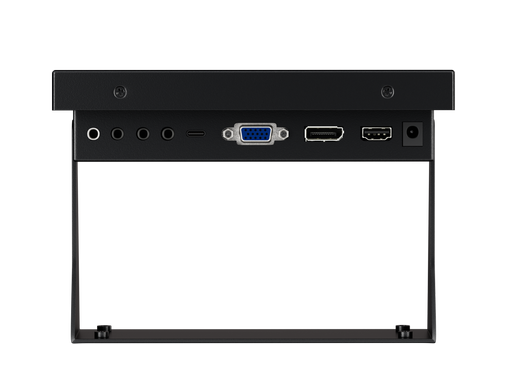

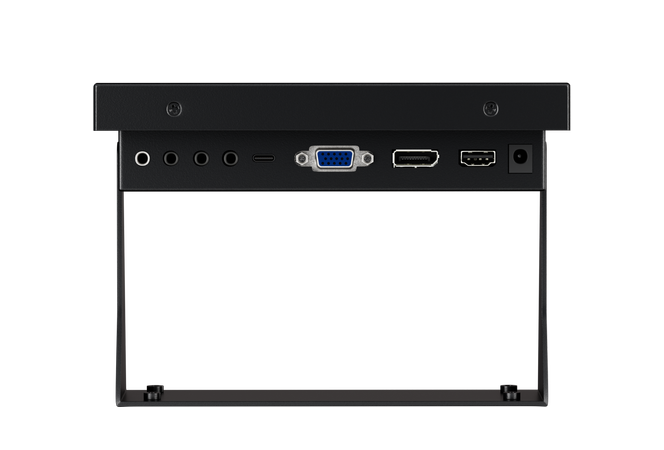

This 7-inch touchscreen monitor is compatible with devices running Windows, macOS, ChromeOS, or Linux operating systems. It offers versatile connectivity options, including HDMI, VGA, RCA, and BNC display inputs. Touch functionality is easily enabled via the included USB-A cable. Once connected, the display is automatically recognized and ready for immediate use.

7 Inch Touchscreen Metal

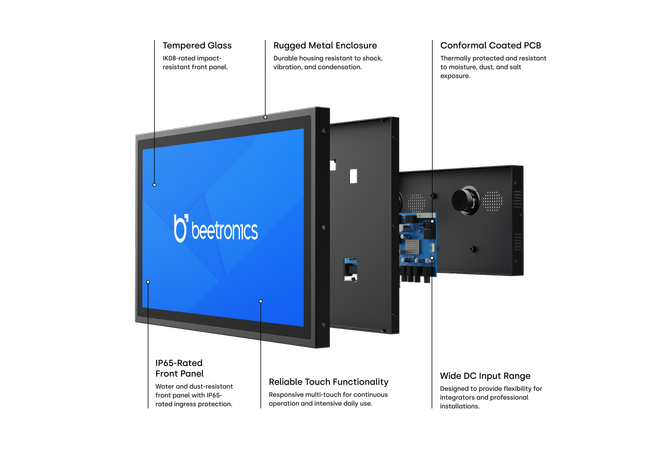

Designed for Professional Use

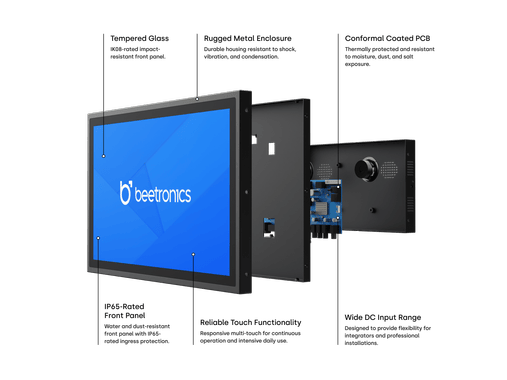

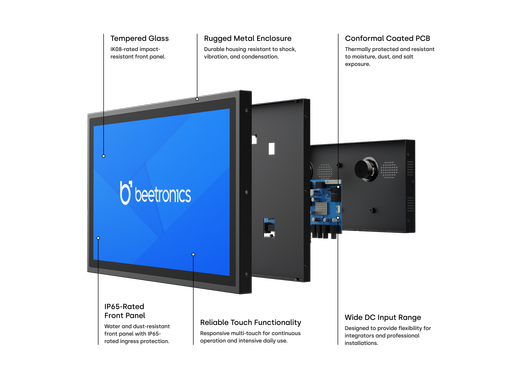

The 7TS7M is built for continuous operation and professional use. It’s crafted with high-quality components to ensure reliable and precise performance, even in the most demanding environments. The IP65-rated front panel protects the screen against water and dust. The touchscreen accepts a wide input voltage range from 9 to 33 volts and features a fully dimmable backlight.

7 Inch Touchscreen Metal

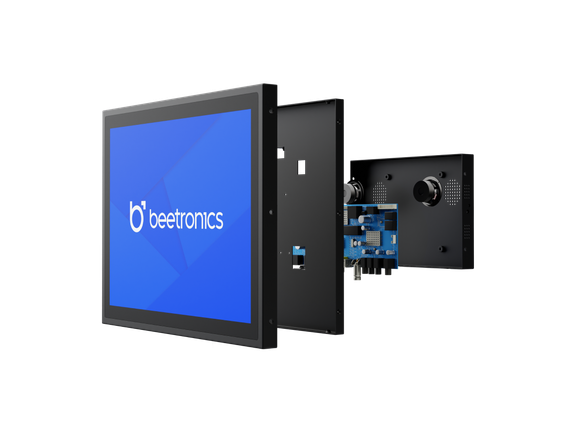

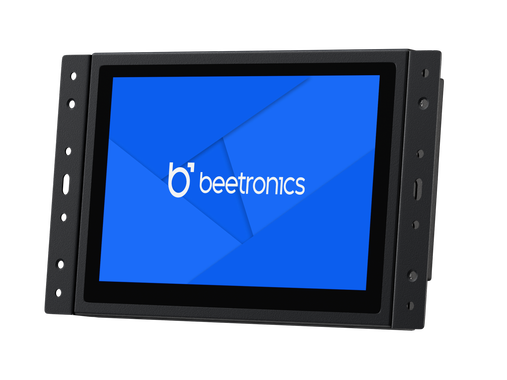

Easy Integration

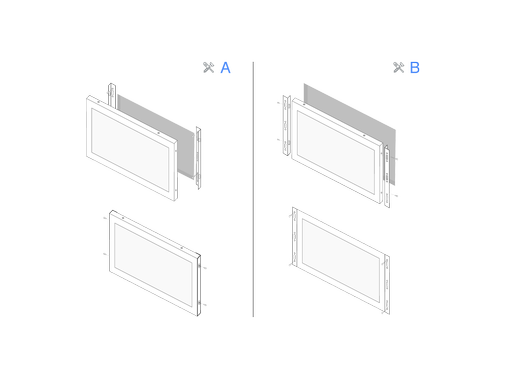

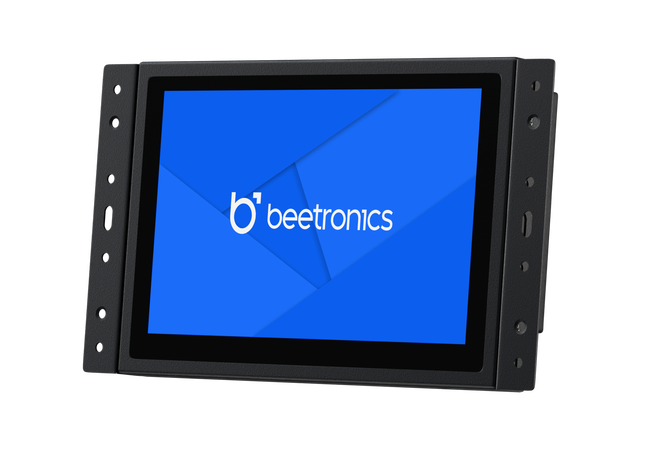

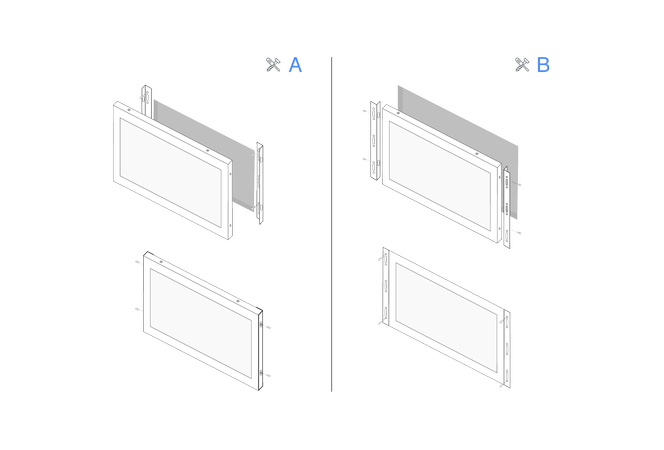

With numerous mounting options, the 7-inch metal touchscreen can be seamlessly integrated into any application. The provided mounting strips and easy-to-disassemble casing allow for various flush mounting options, making it simple to embed the monitor in any environment.

7 Inch Touchscreen Metal

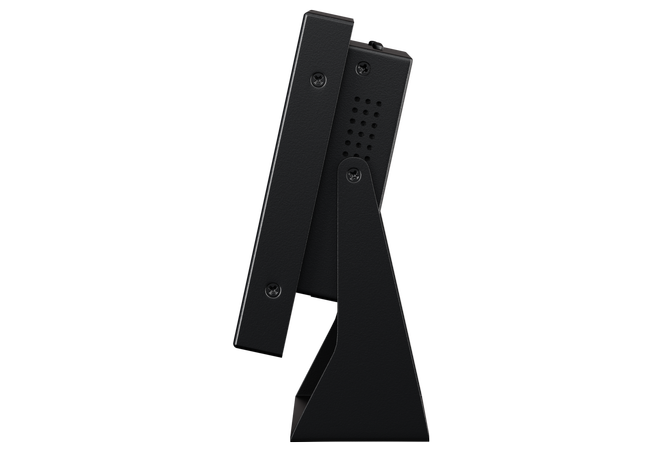

Desktop and Wall Mounting

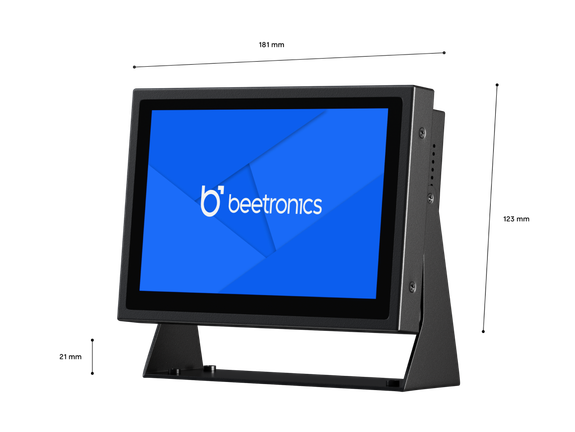

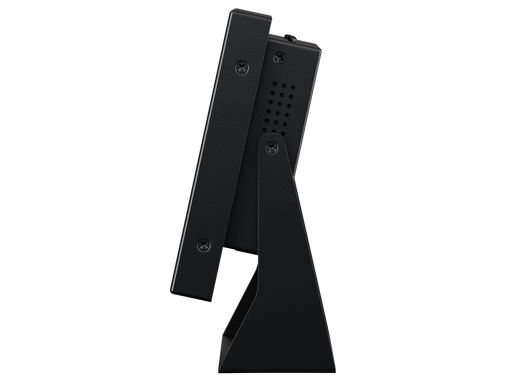

The Beetronics 7TS7M features a fully collapsible stand that can be easily detached to reveal a 75mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
7TS7M
Previous Model
7TS4M
Product Name
7 Inch Touchscreen Metal
Warranty
2 Years
Datasheet
Drivers
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Samsung DeX
All Samsung DeX Versions
Panel
7.0 Inches (179 mm)
IPS-LCD
16:10 (16:9, 4:3 Adjustable)
10 ms
50K
1280 x 800
1920 x 1200 (max), 640 x 480 (min)
217 PPI
LED
350 cd/m2
800:1
178° Horizontal, 178° Vertical
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Stylus, Hand, Glove

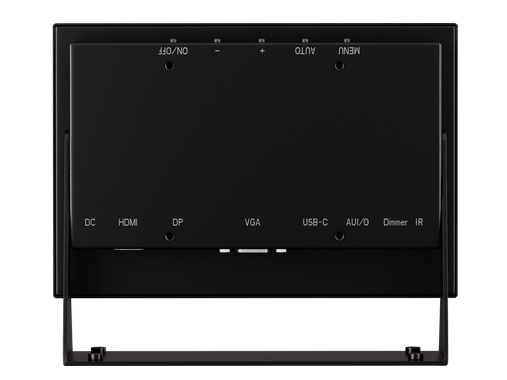

Connectivity
1x
1x
1x
1x Video, Audio, Touch
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
1x
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
7.1 x 4.8 x 1.6 Inches
6.0 x 3.7 Inches
1.5 lbs (2.0 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Landscape, Portrait, Face-up
Power
DC 9-33V
Typical 6.2 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 12V-2A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

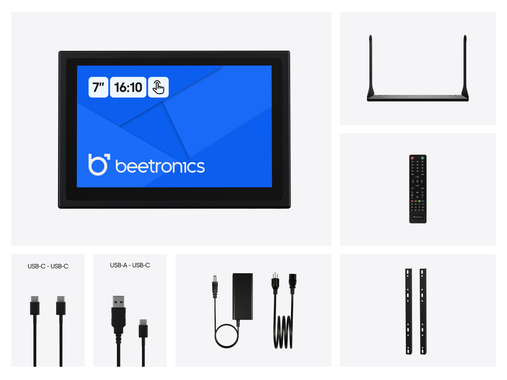

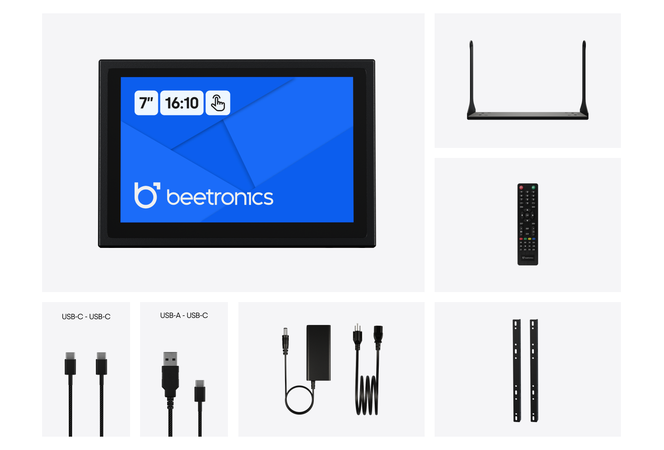

Package Content
Includes
Touchscreen, USB Cable, Remote Control, AC Power Adapter, Stand, Installation Strips, Manual
Downloads
Click to Download Product Documentation.
