Model: 7HD7M
100+ units in stock
Product Information
  1. Excellent image quality (up to Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 6.9 x 4.7 x 1.4 inches
Select Display Type
Display Type
CAD $439.00
Order now for next-business-day shipping

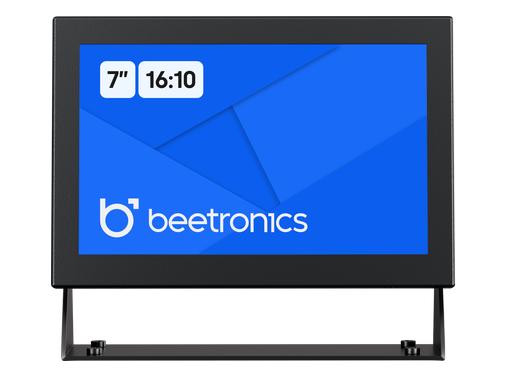

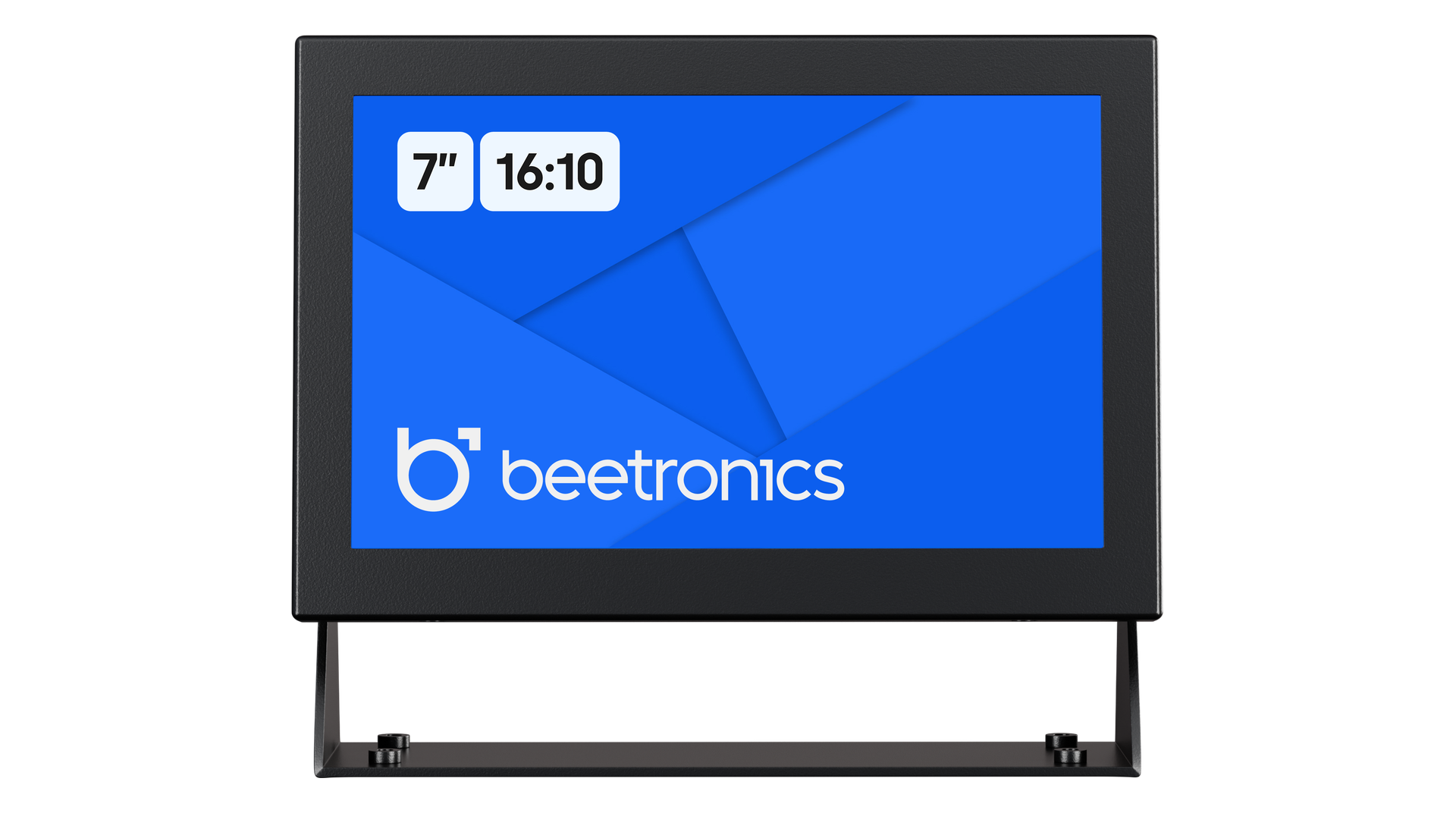

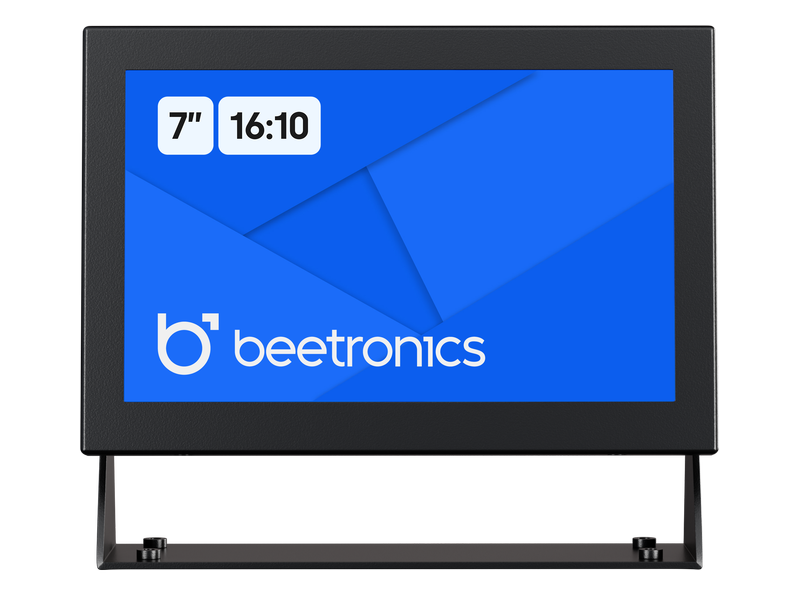

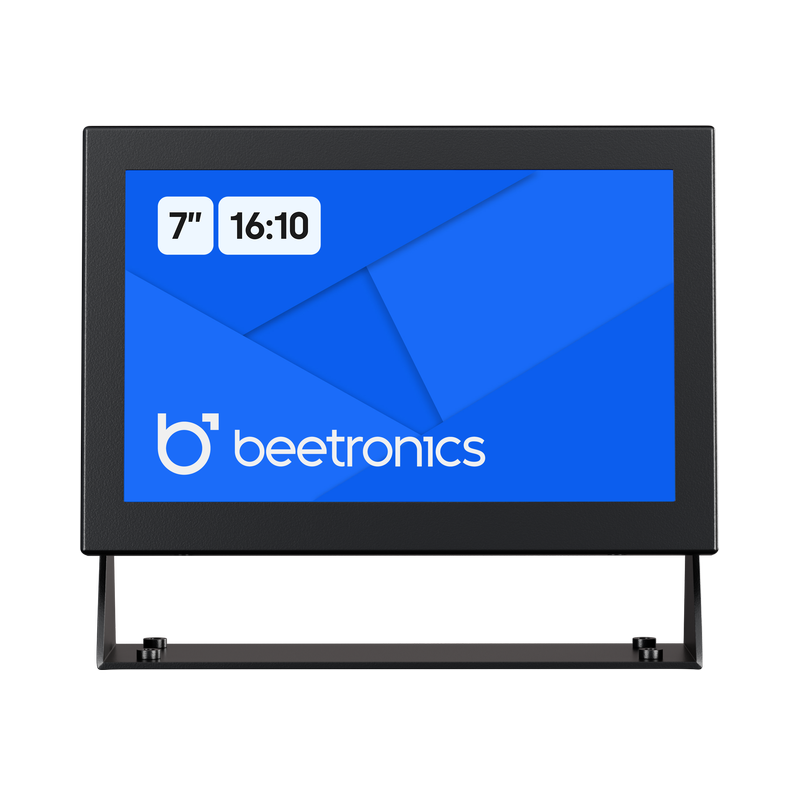

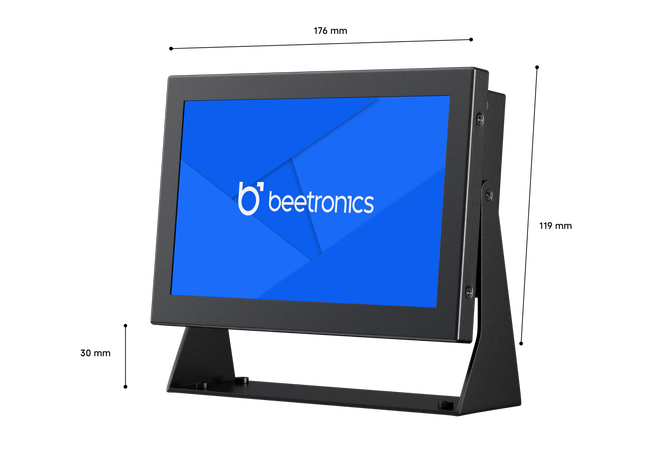

This 7-inch Full HD monitor offers exceptional picture quality with impressive 178° viewing angles. Housed in a robust metal casing, it's perfect for desktop use, flush mounting, or wall installation. The 7HD7M supports a variety of connections, including HDMI, VGA, BNC, and RCA,

Product Highlights
7 Inch Monitor Metal

Exceptional Full HD Picture Quality

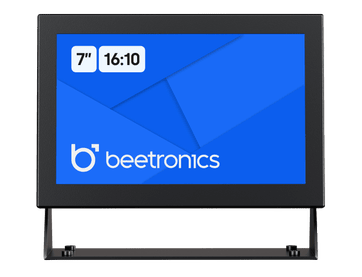

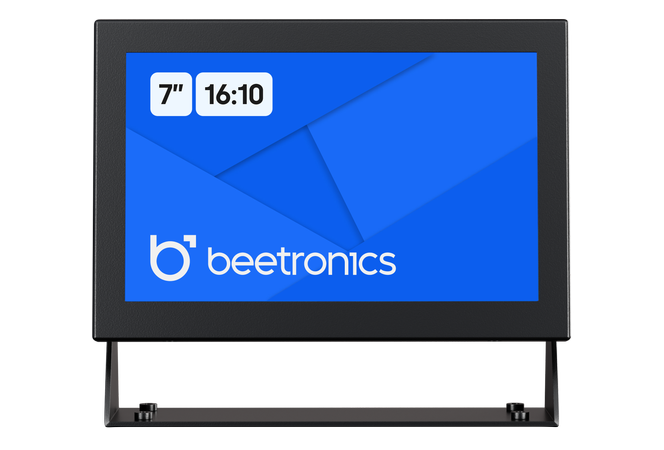

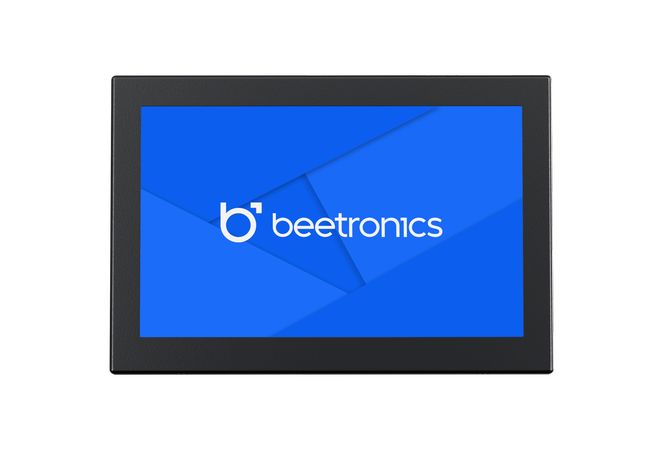

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, colour, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

7 Inch Monitor Metal

Versatile Connectivity

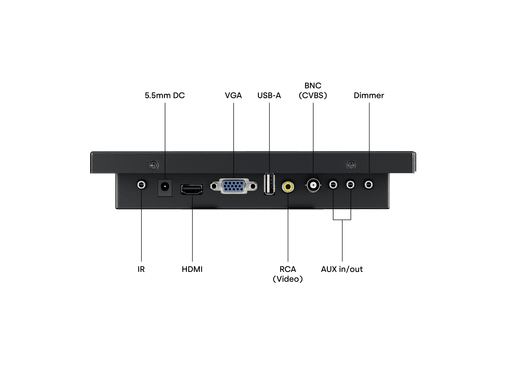

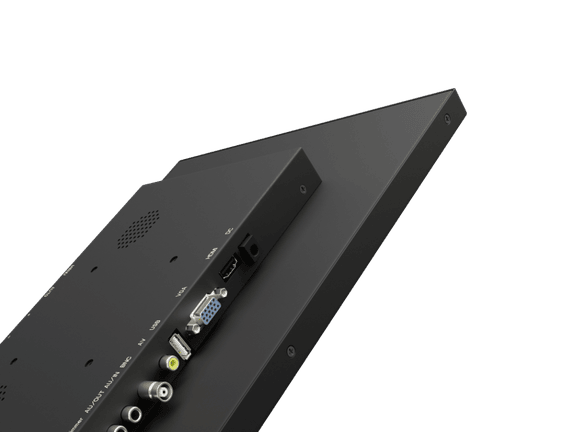

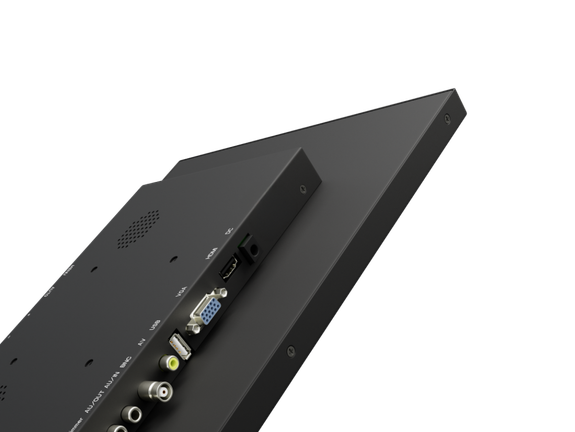

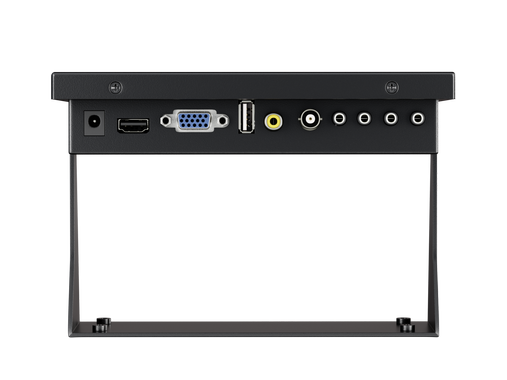

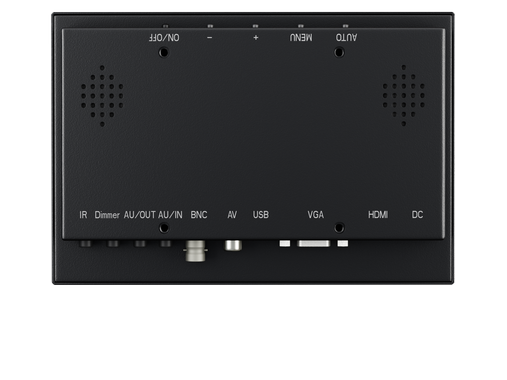

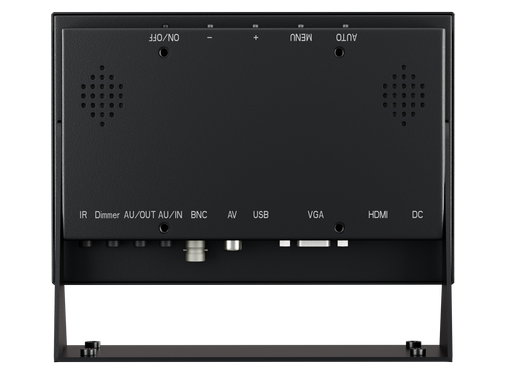

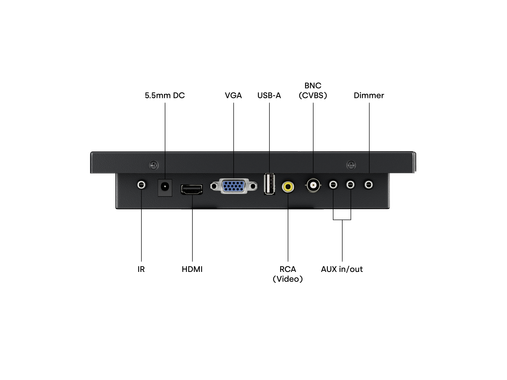

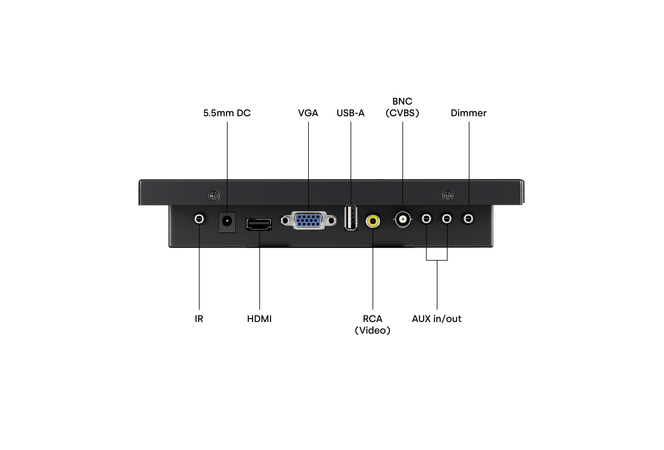

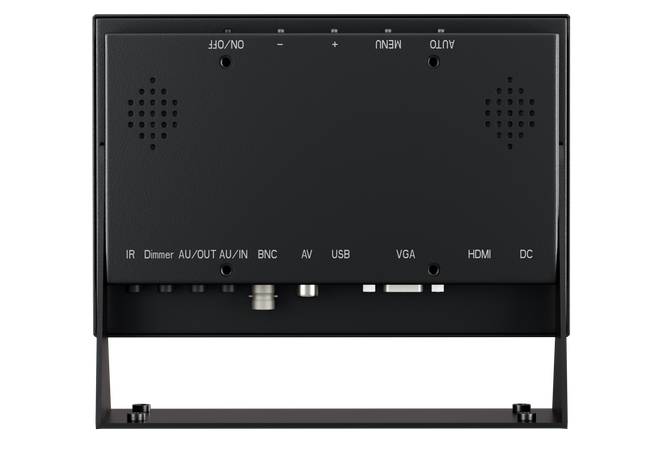

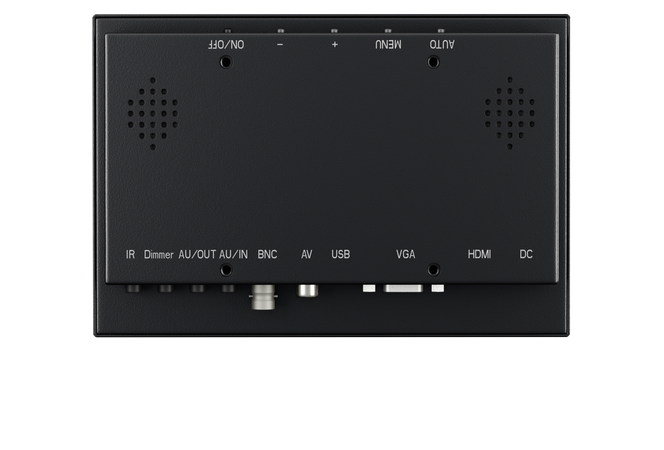

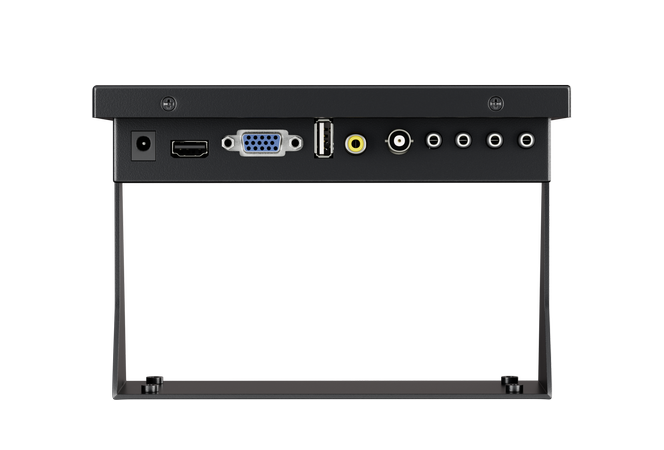

The Beetronics 7HD7M includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

7 Inch Monitor Metal

Designed for Professional Use

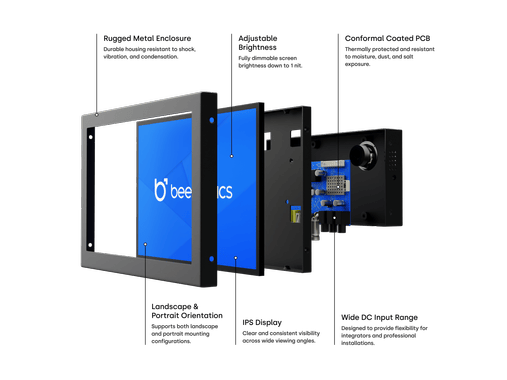

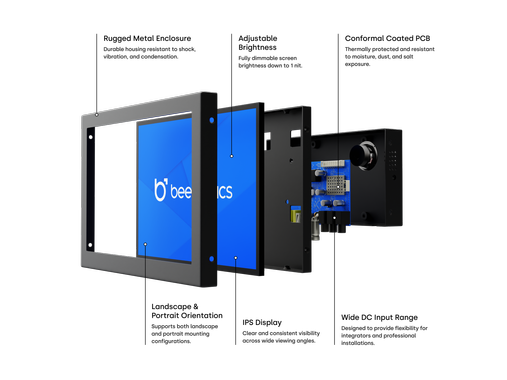

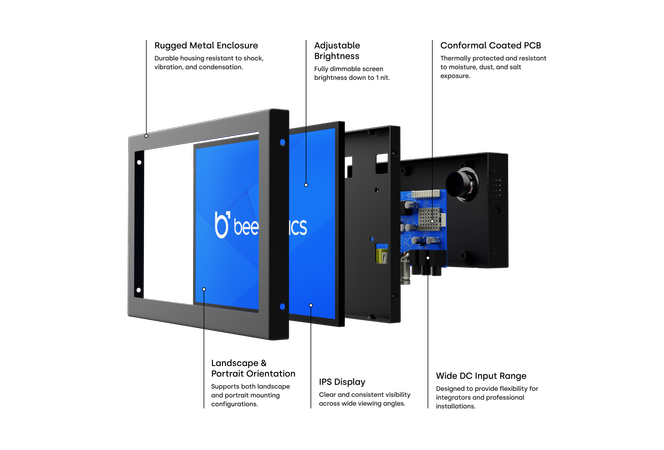

The 7HD7M is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

7 Inch Monitor Metal

Easy Integration

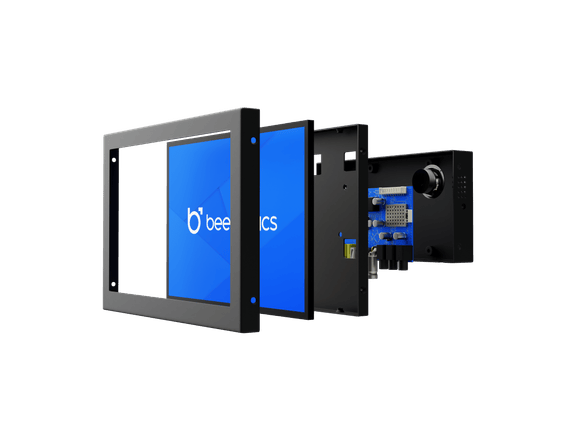

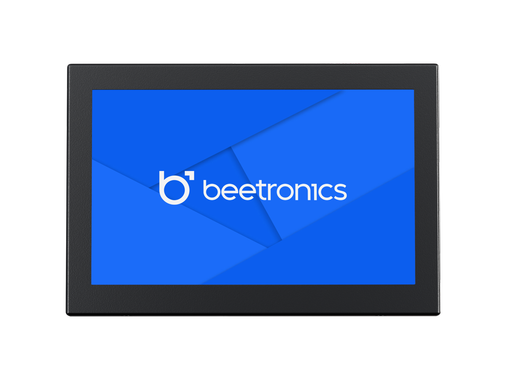

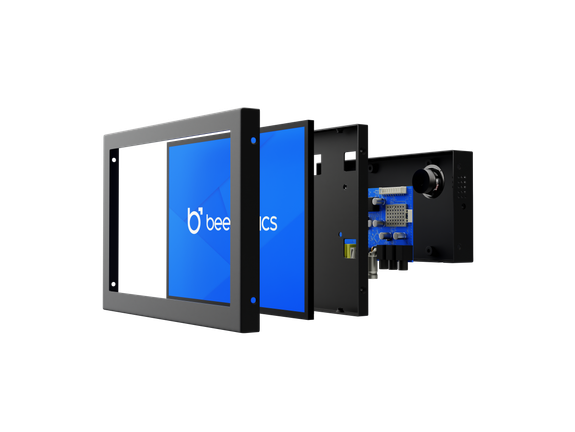

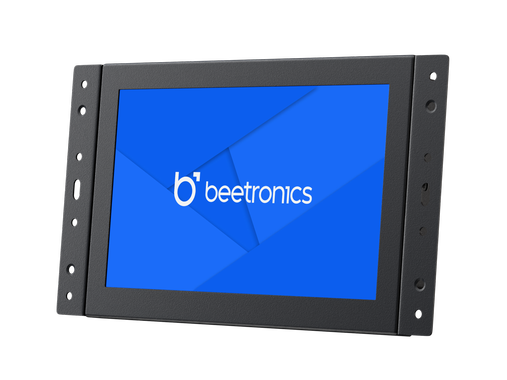

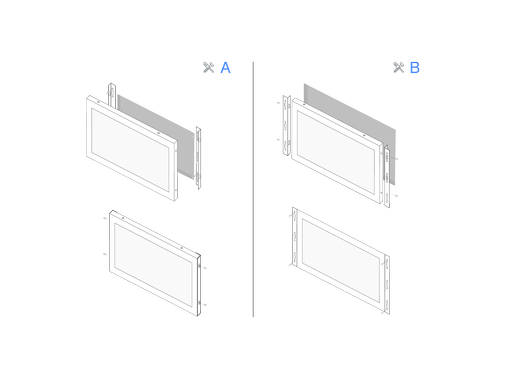

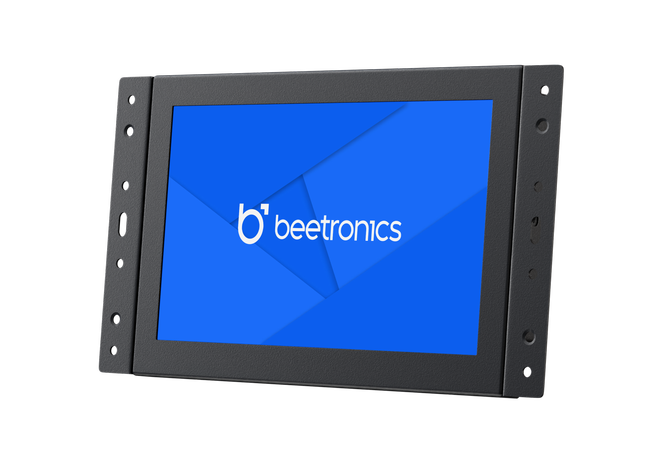

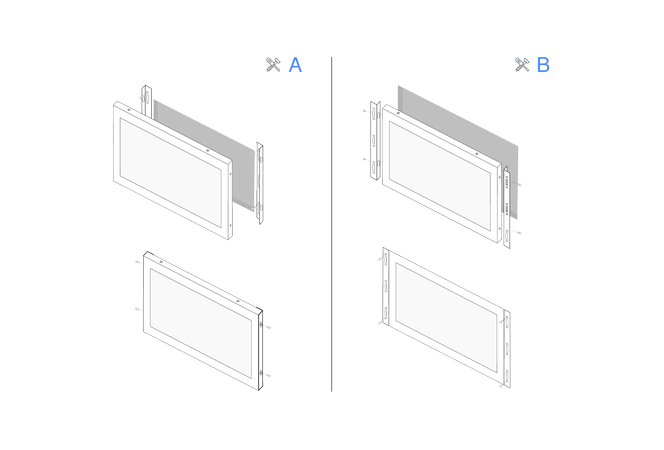

With numerous mounting options, the 7-inch metal monitor can be seamlessly integrated into any application. The provided mounting strips and easy-to-disassemble casing allow for various flush mounting options, making it simple to embed the monitor in any environment.

7 Inch Monitor Metal

Desktop or Wall Mounting

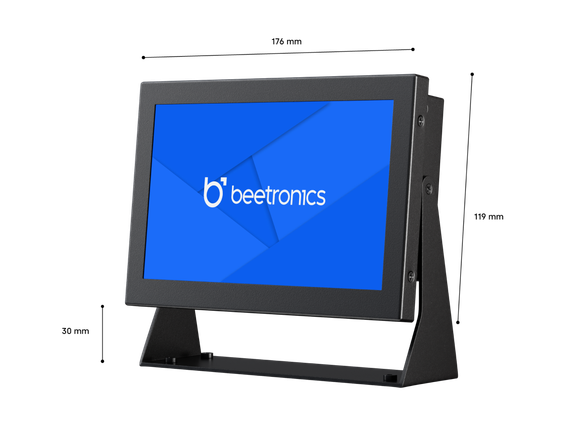

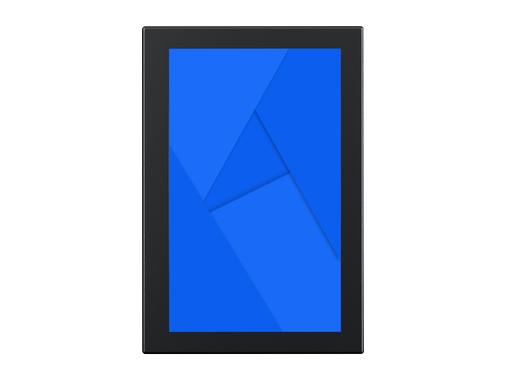

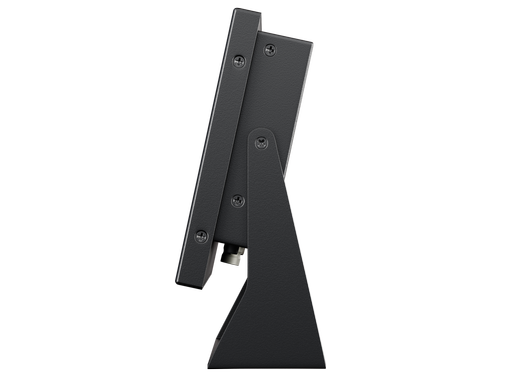

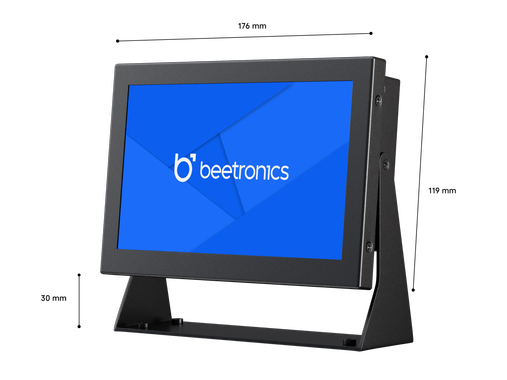

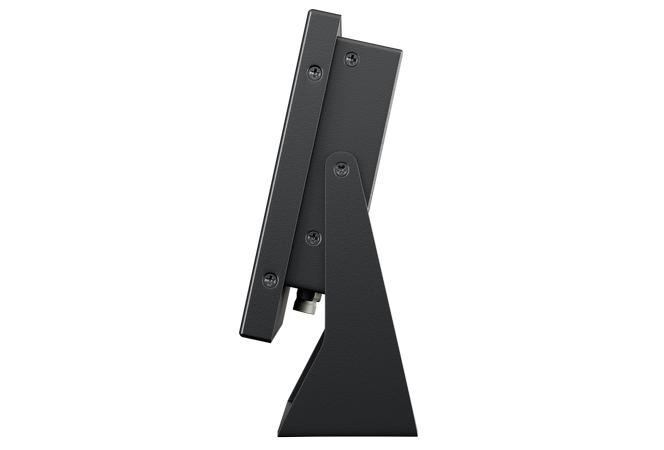

The Beetronics 7HD7M features a fully collapsible stand that can be easily detached to reveal a 75mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
7HD7M
Previous Model
7HDM
Product Name
7 Inch Monitor Metal
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
7.0 Inches (177 mm)
IPS-LCD
16:10 (16:9, 4:3 Adjustable)
10 ms
50K
1280 x 800
1920 x 1200 (max), 640 x 480 (min)
217 PPI
LED
400 cd/m2
800:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
1x
1x
1x
1x
1x Integrated USB Media Player
1x
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
6.9 x 4.7 x 1.4 Inches
5.9 x 3.7 Inches
1.3 lbs (1.8 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Teleprompter compatible. Image can be horizontally and vertically mirrored.

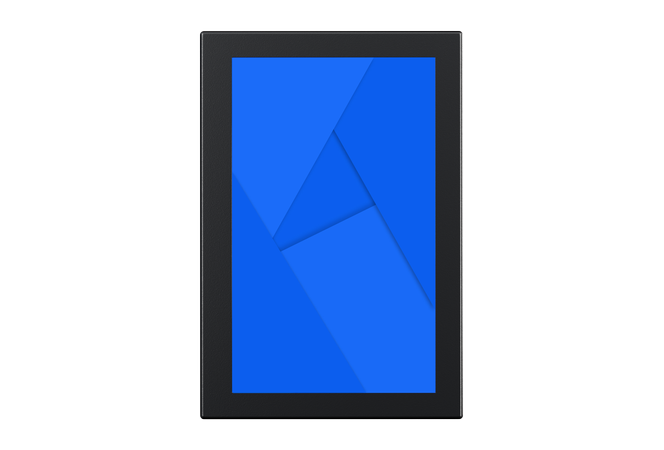

Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)
Package Content
Includes

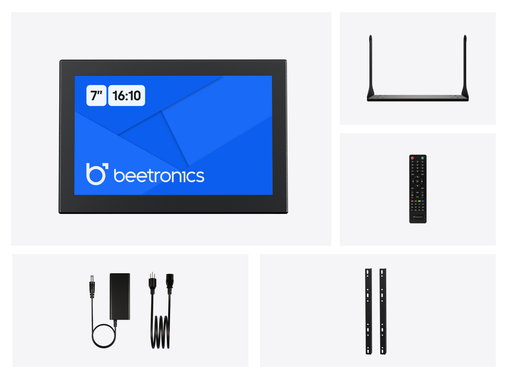

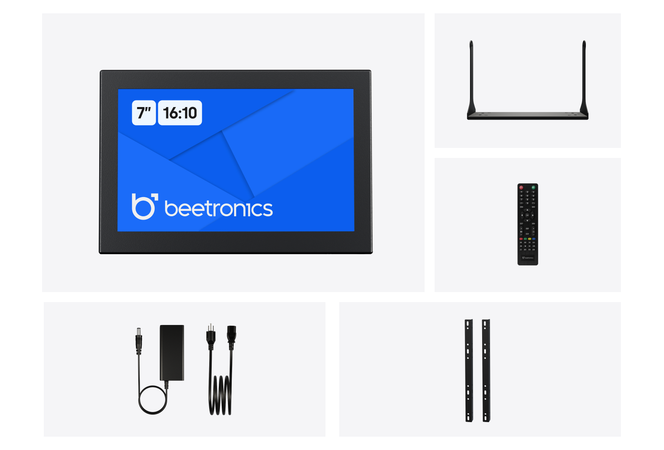

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
Downloads
Click to Download Product Documentation.
