Model: 22HD7M
34 units in stock
Product Information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 20.1 x 12.1 x 1.6 inches
Select Display Type
Display Type
CAD $799.00
Order by 11.00 p.m. for Delivery on Monday

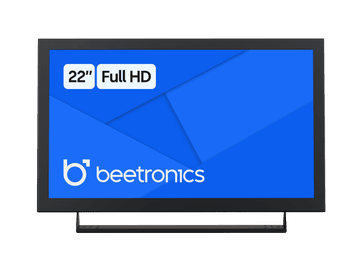

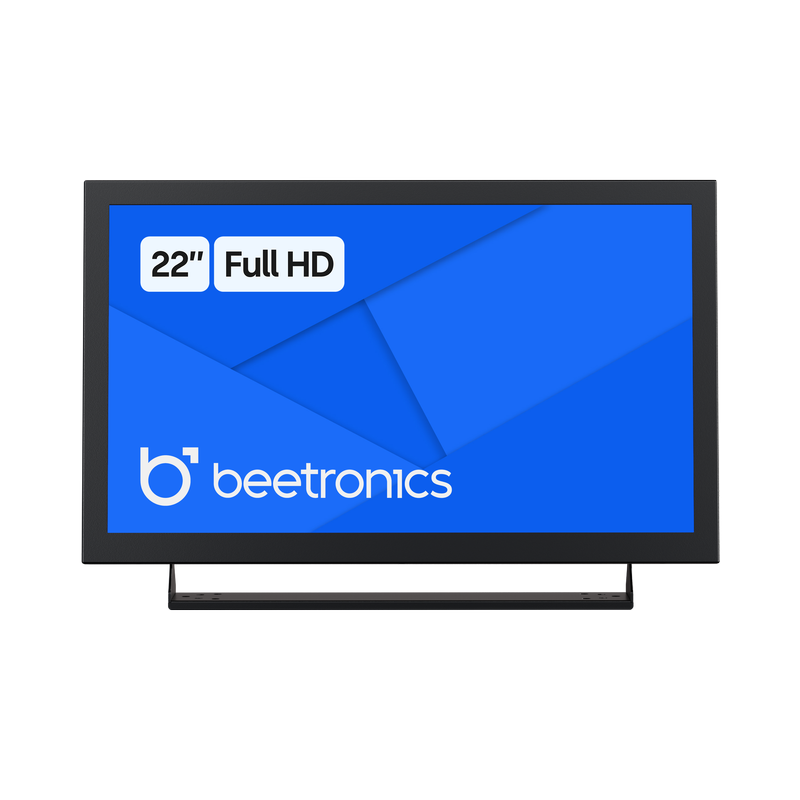

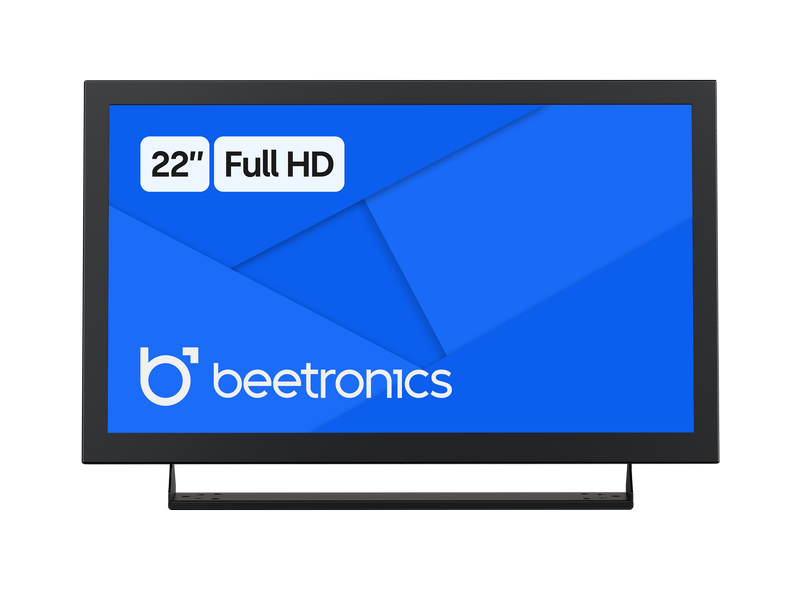

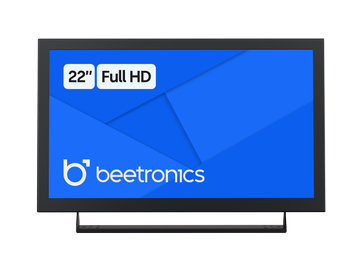

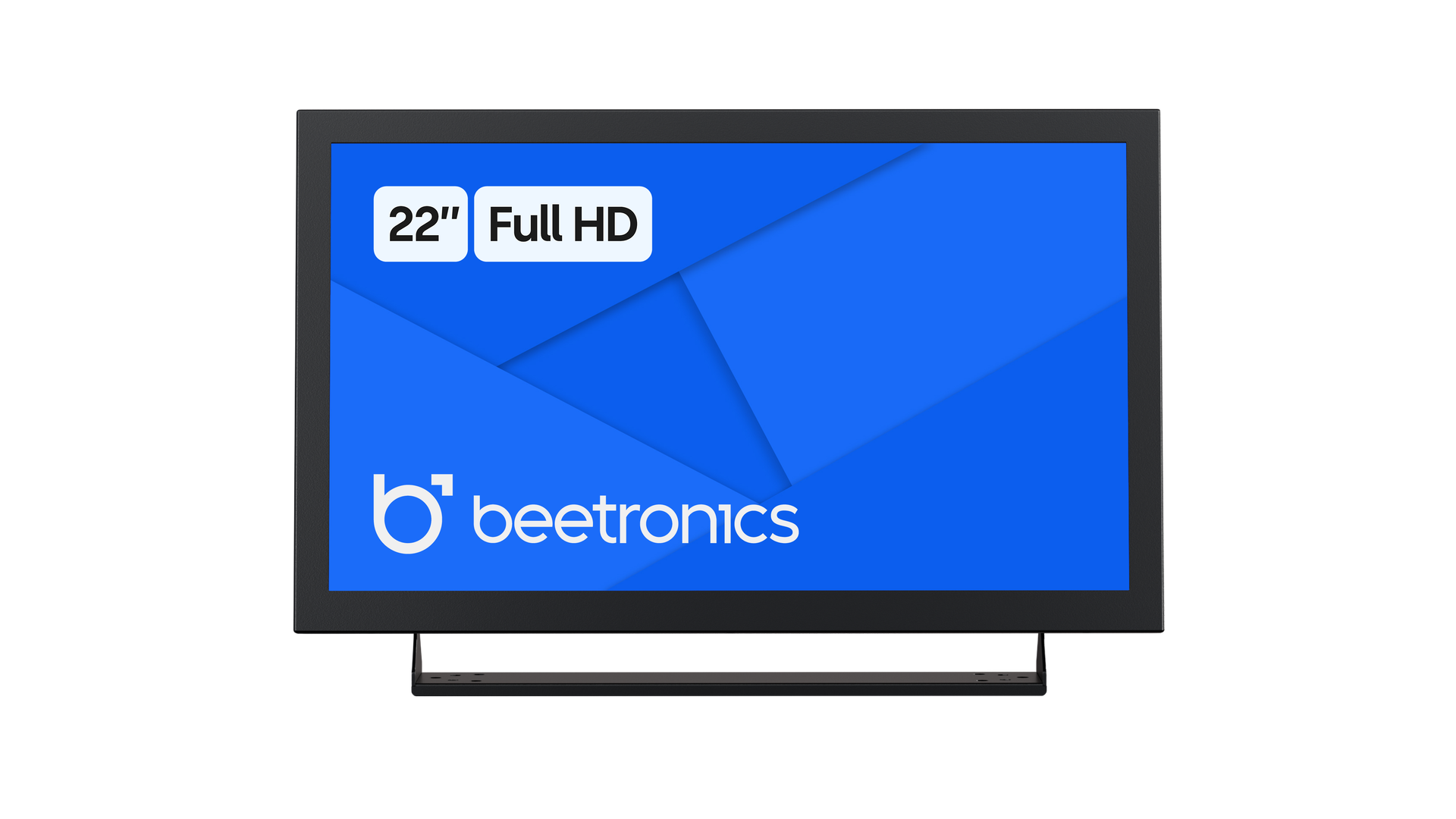

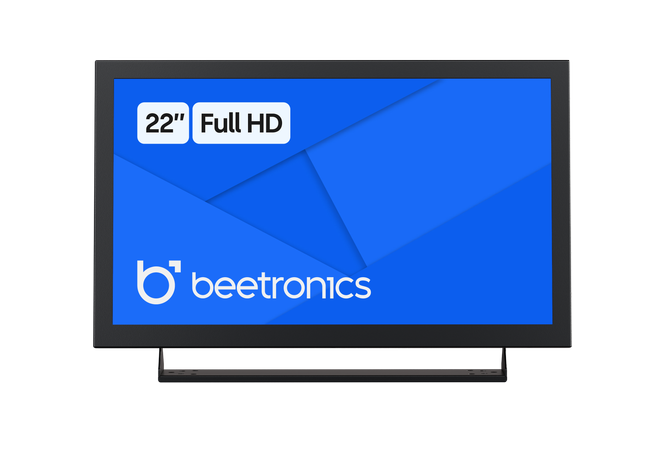

This 22-inch Full HD monitor offers exceptional picture quality with impressive 178° viewing angles. Housed in a robust metal casing, it's perfect for desktop use, flush mounting, or wall installation. The 22HD7M supports a variety of connections, including HDMI, VGA, BNC, and RCA.

Product Highlights
22 Inch Monitor Metal

Exceptional Full HD Picture Quality

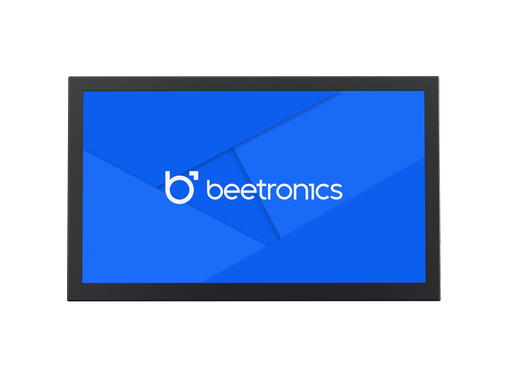

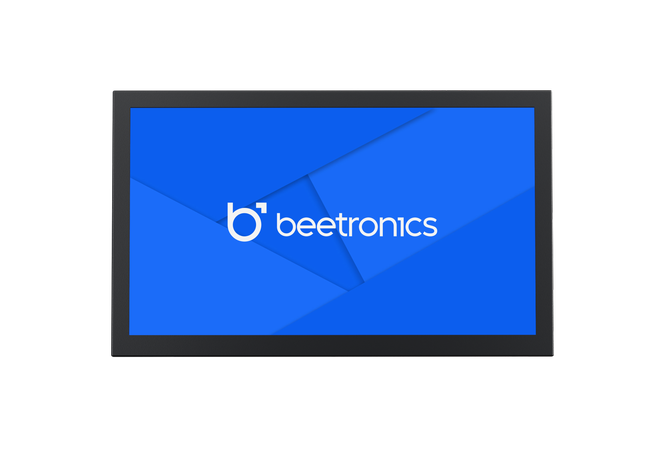

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, colour, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

22 Inch Monitor Metal

Versatile Connectivity

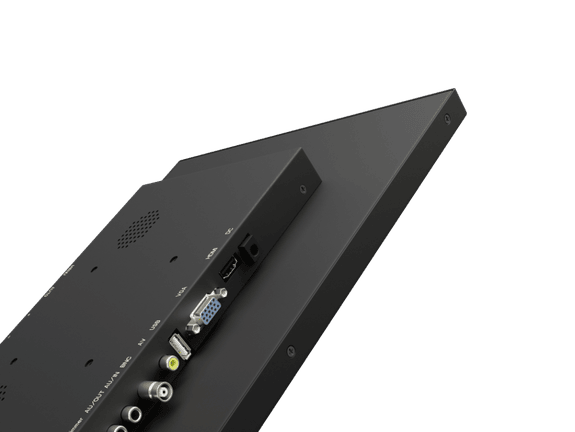

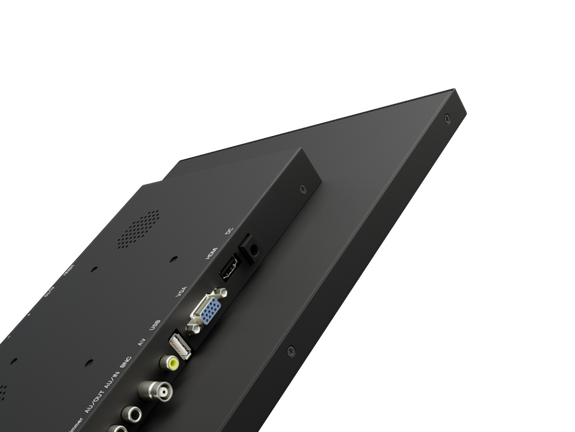

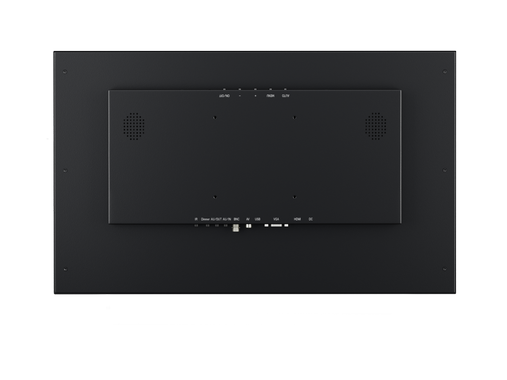

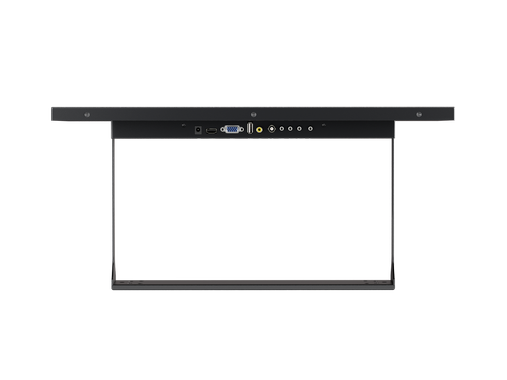

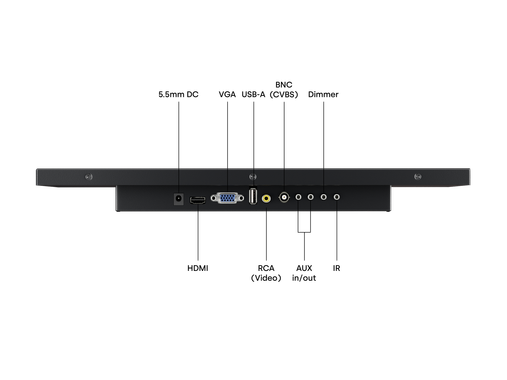

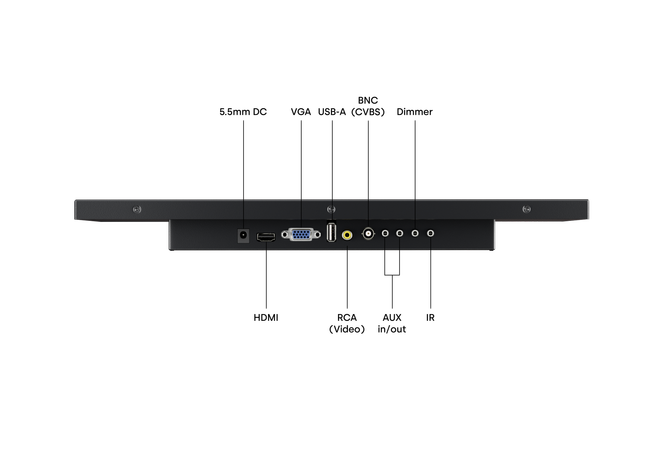

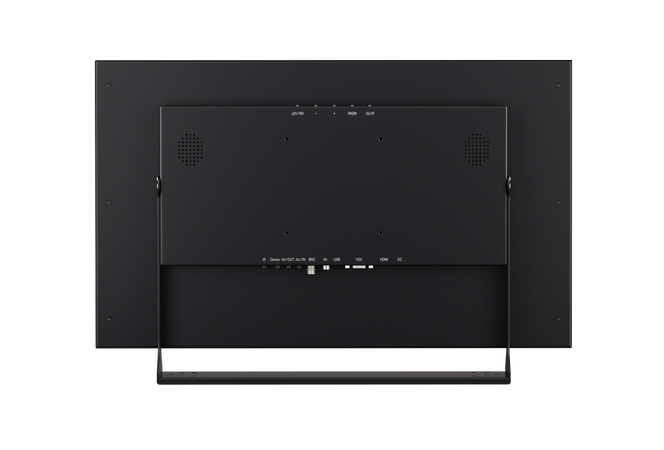

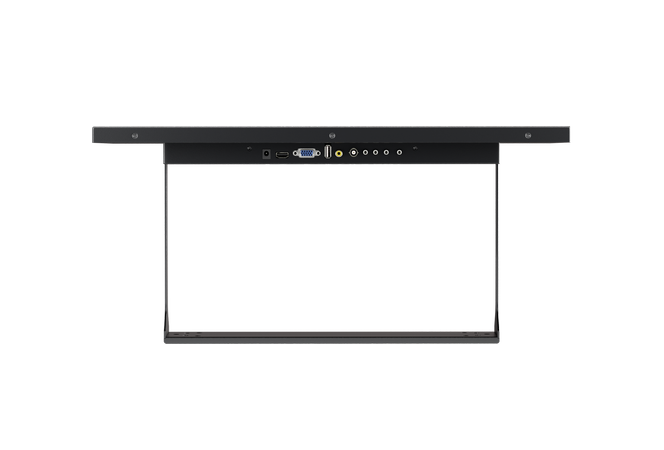

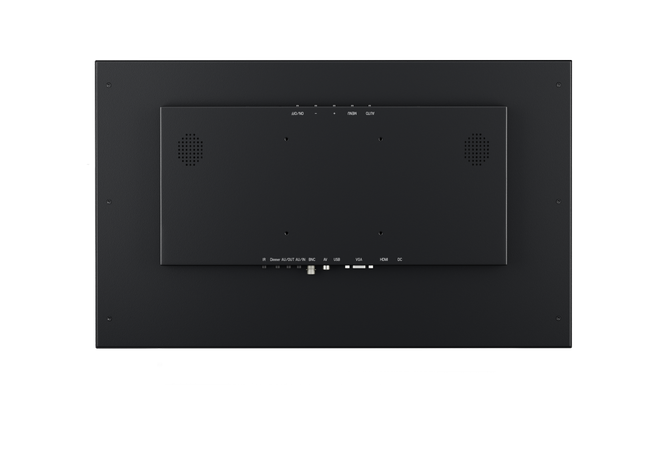

The Beetronics 22HD7M includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

22 Inch Monitor Metal

Designed for Professional Use

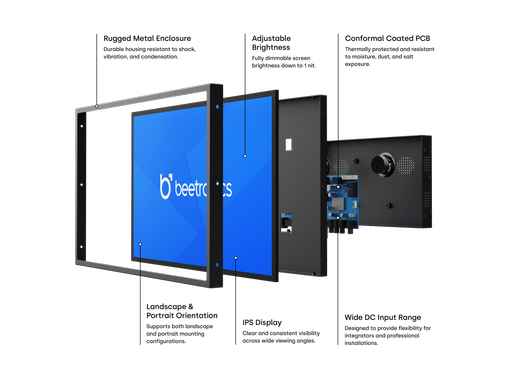

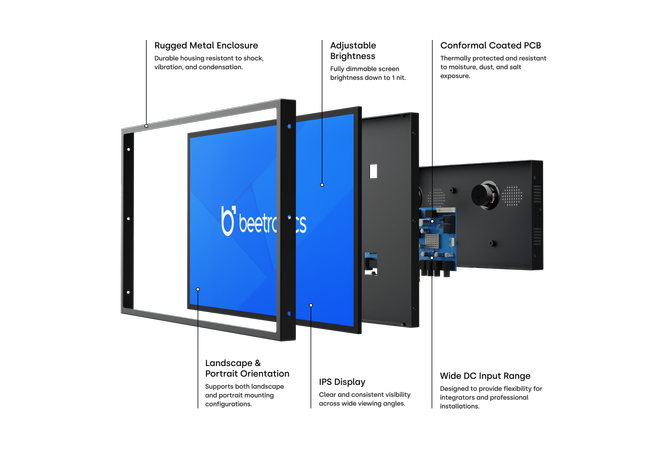

The 22HD7M is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.



22 Inch Monitor Metal

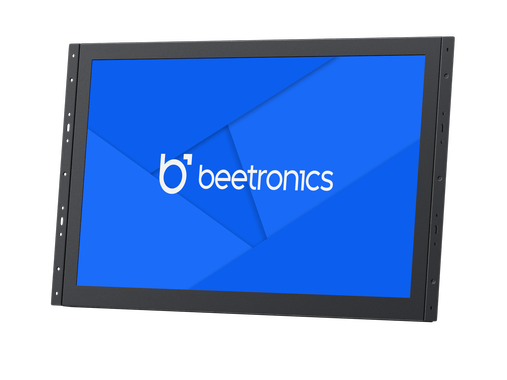

Easy Integration

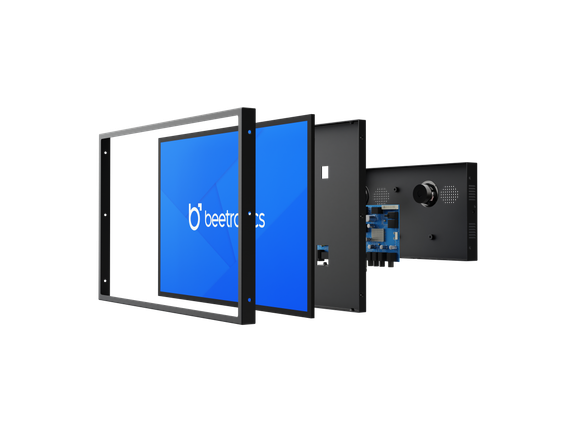

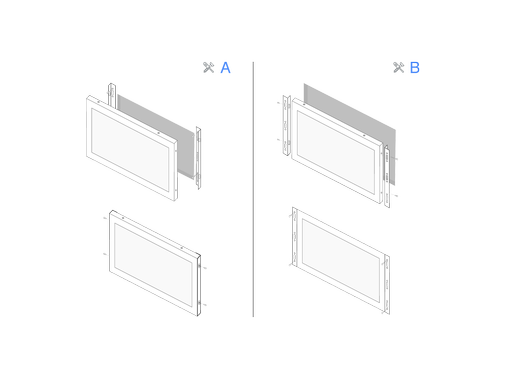

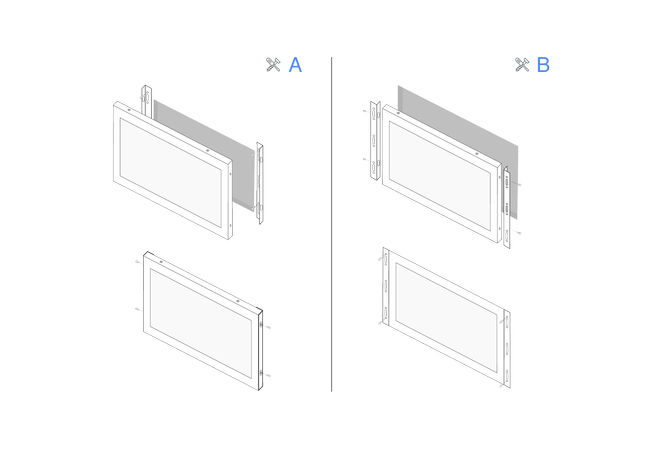

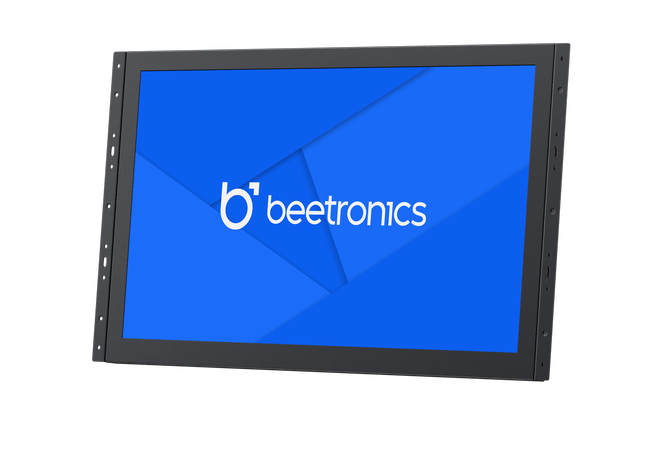

With numerous mounting options, the 22-inch metal monitor can be seamlessly integrated into any application. The provided mounting strips and easy-to-disassemble casing allow for various flush mounting options, making it simple to embed the monitor in any environment.

22 Inch Monitor Metal

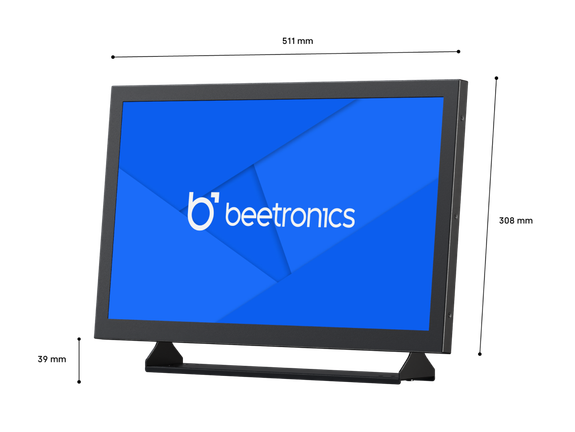

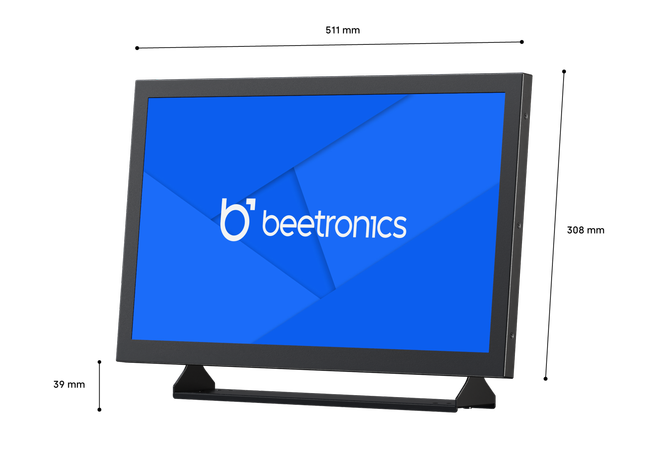

Desktop or Wall Mounting

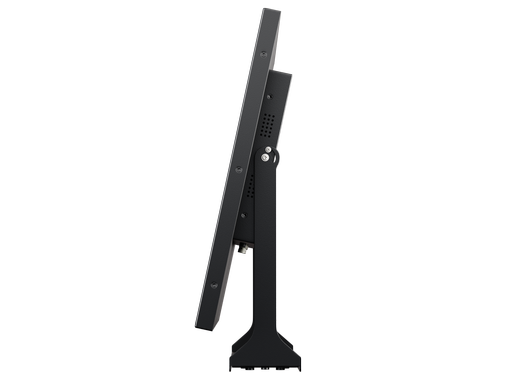

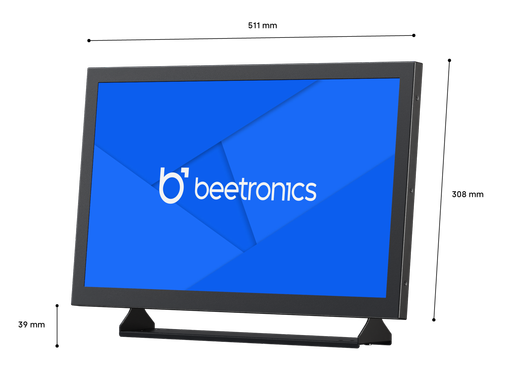

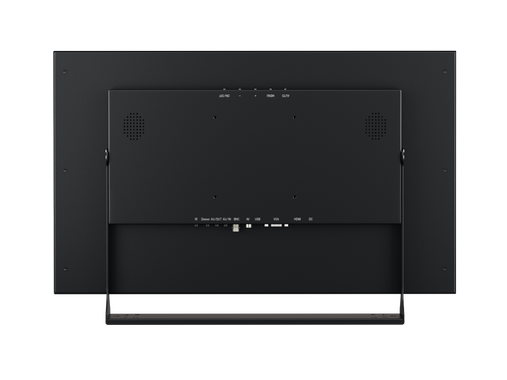

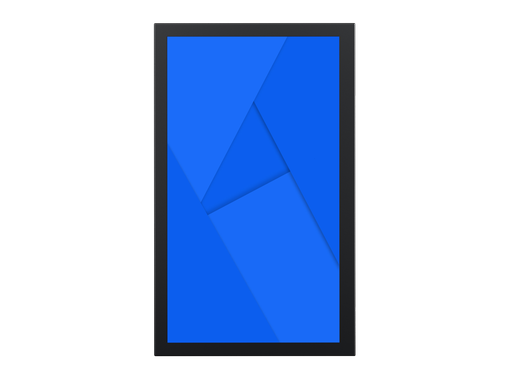

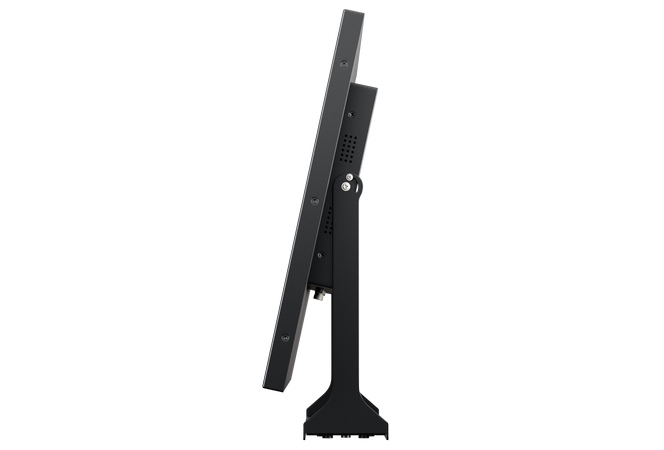

The Beetronics 22HD7M features a fully collapsible stand that can be easily detached to reveal a 100mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
22HD7M
Previous Model
22HDM
Product Name
22 Inch Monitor Metal
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
21.6 Inches (549 mm)
IPS-LCD
16:9 (4:3 Adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
102 PPI
LED
300 cd/m2
3000:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
1x
1x
1x
1x
1x Integrated USB Media Player
1x
1x
Size & Weight
Colour
Black

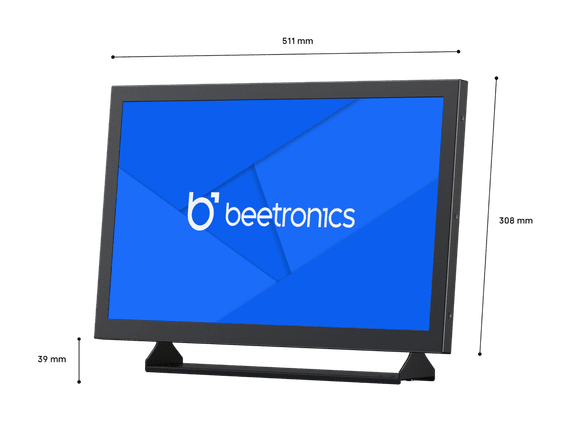

Dimensions (Without Stand)
20.1 x 12.1 x 1.6 Inches
18.8 x 10.6 Inches
9.5 lbs (11.5 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.

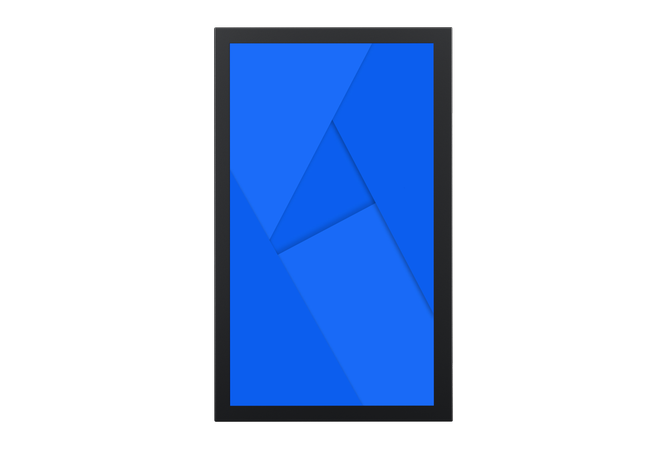

Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 20.0 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 100x100mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

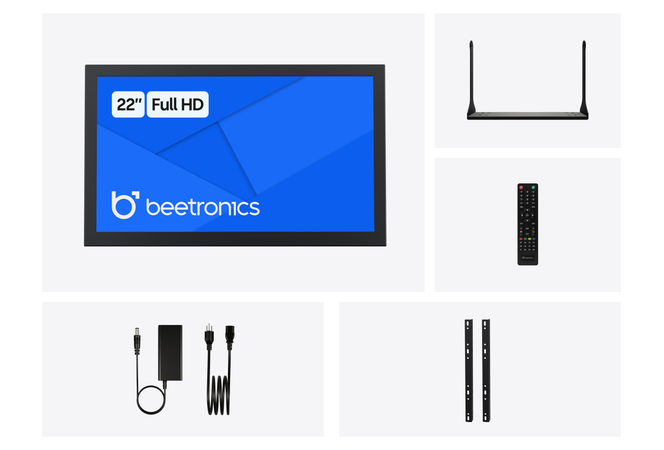

Package Content
Includes

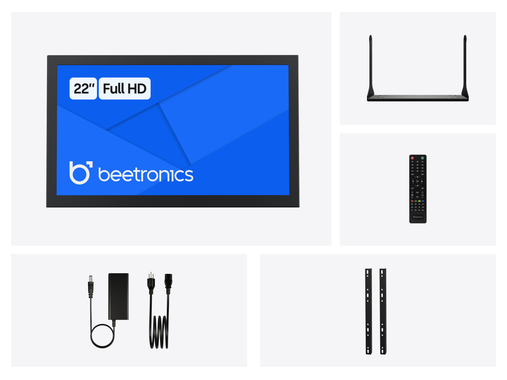

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
