Model: 12TS7
100+ units in stock
Product Information
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Wall, desktop
  4. External dimensions: 11.2 x 7.1 x 1.4 inches
Select Display Type
Display Type
Monitor
Touchscreen
CAD $619.00
Order by 4:30 PM ET for same-day shipping

This Full HD 12-inch touchscreen features a reliable multi-touch panel which ensures consistent and precise operation. The 12TS7 delivers crystal-clear picture quality with exceptional 178° viewing angles. It is compatible with devices running Windows, macOS, ChromeOS, or Linux. Designed for professional use, this touchscreen monitor is easy to setup and built for intensive applications.

Product Highlights

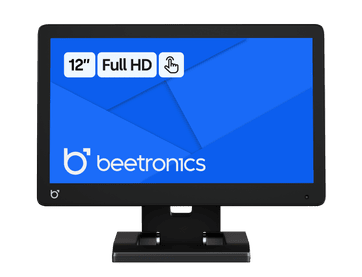

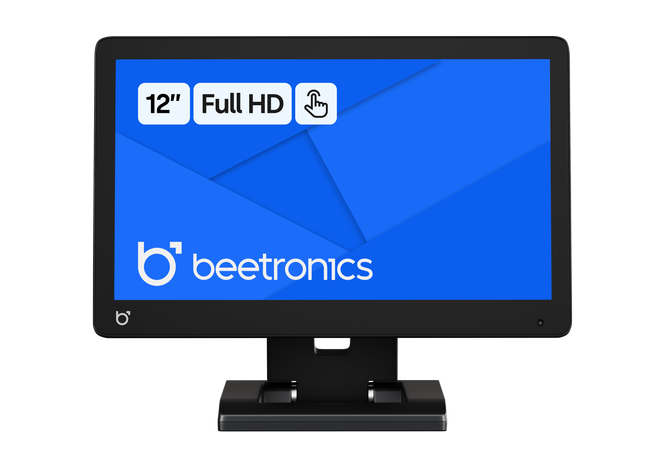

12 Inch Touchscreen

Full HD Multi-Touch Panel

Equipped with a native Full HD IPS panel, this touchscreen offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The 12TS7 includes a capacitive multi-touch screen that supports up to 10 simultaneous touch points. This allows for precise operation and enables gestures such as swiping, zooming, and pinching.

12 Inch Touchscreen

Compatible With Windows,
macOS, ChromeOS and Linux

This 12-inch touchscreen monitor is compatible with devices running Windows, macOS, ChromeOS, or Linux operating systems. It offers versatile connectivity options, including HDMI, VGA, RCA, and BNC display inputs. Touch functionality is easily enabled via the included USB-A cable. Once connected, the display is automatically recognized and ready for immediate use.

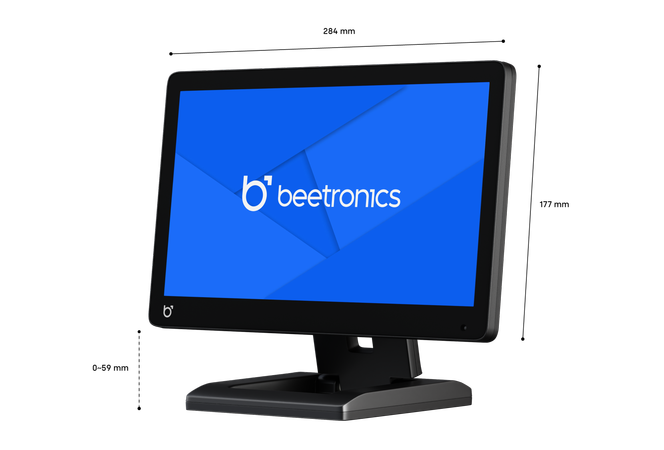

12 Inch Touchscreen

Designed for Professional Use

The 12TS7 is built for continuous operation and professional use. It’s crafted with high-quality components to ensure reliable and precise performance, even in the most demanding environments. The IP65-rated front panel protects the screen against water and dust. The touchscreen accepts a wide input voltage range from 9 to 33 volts and features a fully dimmable backlight.

12 Inch Touchscreen

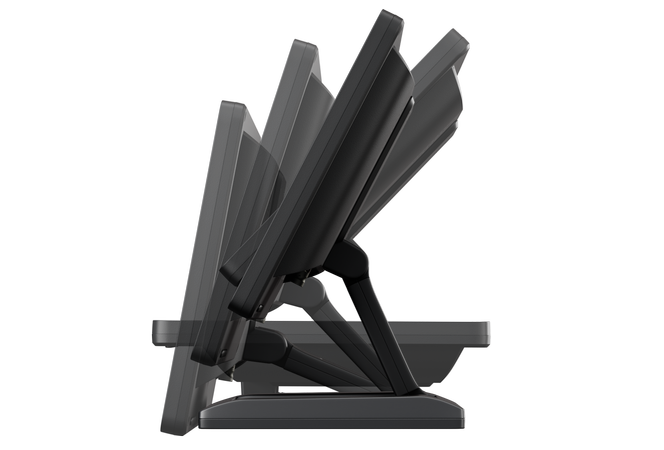

Desktop and Wall Mountable

The Beetronics 12TS7 features a fully collapsible stand that can be easily detached to reveal a 75mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
12TS7
Product Name
12 Inch Touchscreen
Warranty
2 Years
Datasheet
Drivers
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Samsung DeX
All Samsung DeX Versions
Panel
11.6 Inches (297 mm)
IPS-LCD
16:9 (4:3 Adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
190 PPI
LED
500 cd/m2
1000:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Stylus, Hand, Glove

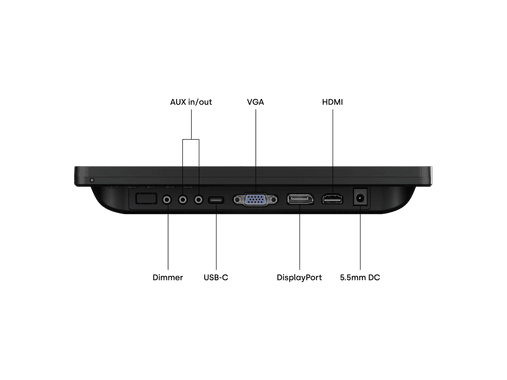

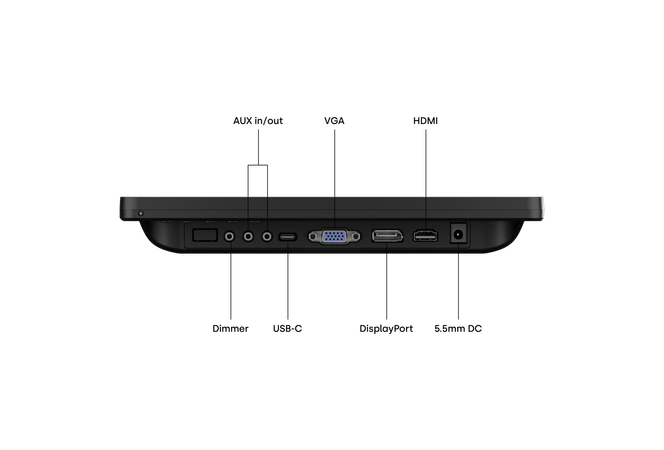

Connectivity
1x
1x
1x
1x Video, Audio, Touch
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
1x
1x
Size & Weight
Colour
Black

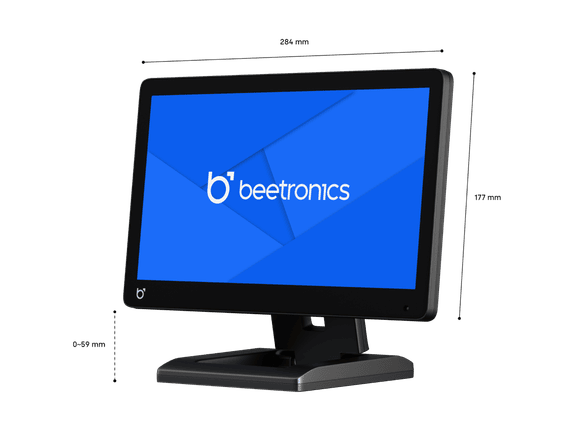

Dimensions (Without Stand)
11.2 x 7.0 x 1.1 Inches
10.2 x 5.6 Inches
1.5 lbs (2.4 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness

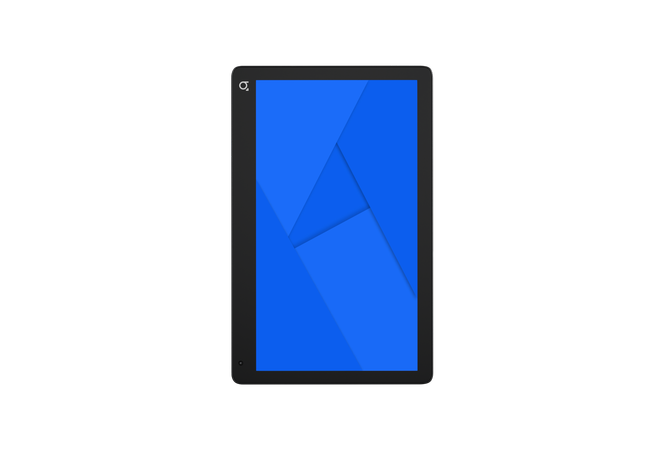

Landscape, Portrait, Face-up
Power
DC 9-36V
Typical 10.2 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

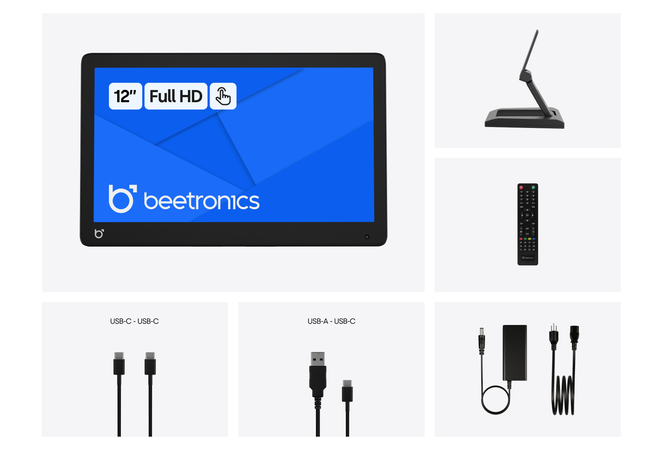

Package Content
Includes
Touchscreen, USB-C to USB-C Cable, USB-C to USB-A Cable, Remote Control, Power Adapter, Manual
