Model: 12SDI7M
97 units in stock
Product Information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI (input & output), SDI (2x input & 2x output)
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 11.0 x 7.1 x 1.5 inches
CAD $1,059.00
Order by 11.00 p.m. for Delivery on Tuesday

This 12-inch Full HD monitor delivers exceptional picture quality with wide 178° viewing angles. Designed with a durable metal housing, it’s perfect for desktop setups, flush installations, and wall mounting. The 12SDI7M monitor features multiple HDMI and SDI inputs, allowing seamless connections to various sources, and supports easy daisy-chaining to other screens.

Product Highlights
12 Inch Monitor Metal SDI

Exceptional Full HD Picture Quality

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, colour, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

12 Inch Monitor Metal SDI

Versatile Connectivity

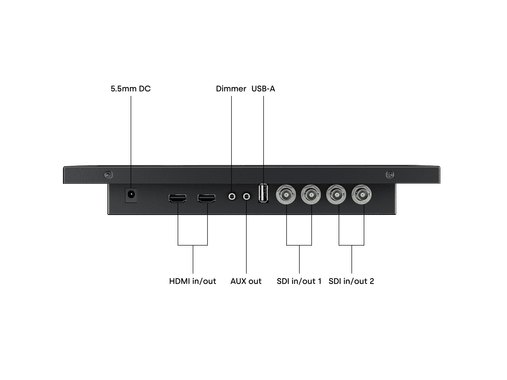

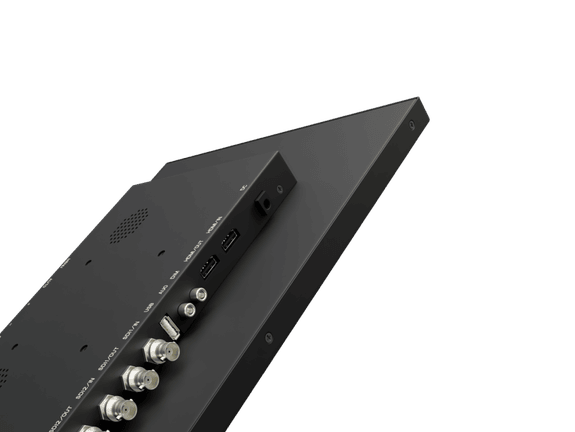

The 12SDI7M features an HDMI input and output, along with two SDI inputs and outputs. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be set to automatically power on when it detects a power current or video signal.

12 Inch Monitor Metal SDI

Designed for Professional Use

The 12SDI7M is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

12 Inch Monitor Metal SDI

Easy Integration

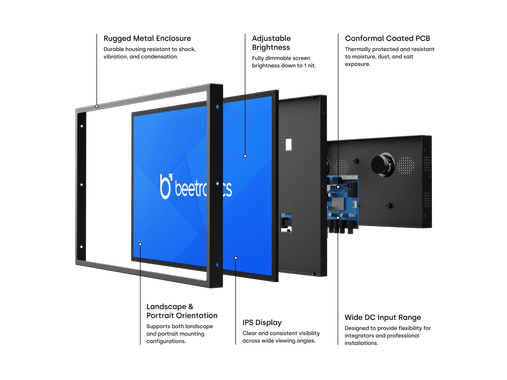

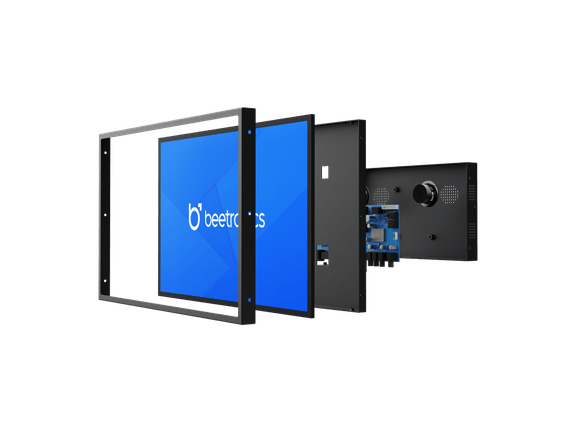

With numerous mounting options, the 12-inch metal monitor can be seamlessly integrated into any application. The provided mounting strips and easy-to-disassemble casing allow for various flush mounting options, making it simple to embed the monitor in any environment.

12 Inch Monitor Metal SDI

Desktop or Wall Mounting

The Beetronics 12SDI7M features a fully collapsible stand that can be easily detached to reveal a 75mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
12SDI7M
Product Name
12 Inch Monitor Metal SDI
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
11.6 Inches (296 mm)
IPS-LCD
16:9 (4:3 Adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
190 PPI
LED
500 cd/m2
1000:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
1x
HDMI output
1x
1x Integrated USB Media Player
2x
SDI output
2x
1x
1x
Size & Weight
Colour
Black

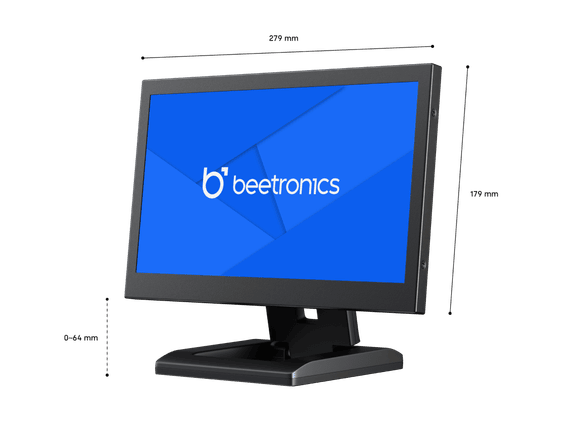

Dimensions (Without Stand)
11.0 x 7.1 x 1.5 Inches
10.1 x 5.7 Inches
2.9 lbs (3.7 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 17.4 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC
Package Content
Includes
Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
Compatible Accessories
Dimmer
Rack Mounting
Wall Mounting
Stand
VDK3 Included as Standard
Downloads
Click to Download Product Documentation.
