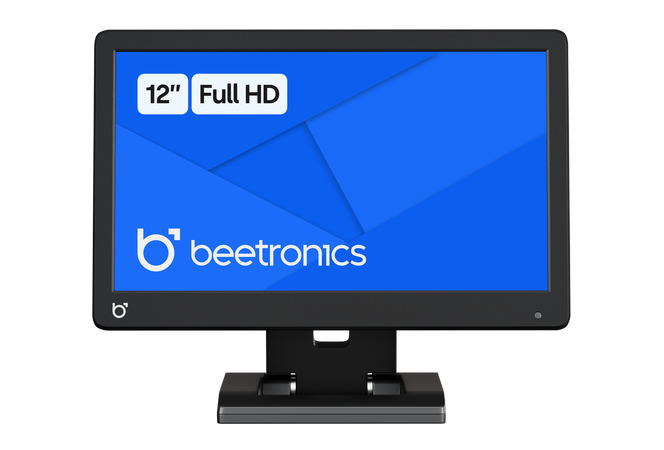

12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor

12 Inch Monitor

Model: 12HD7
100+ units in stock
Product Information
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop

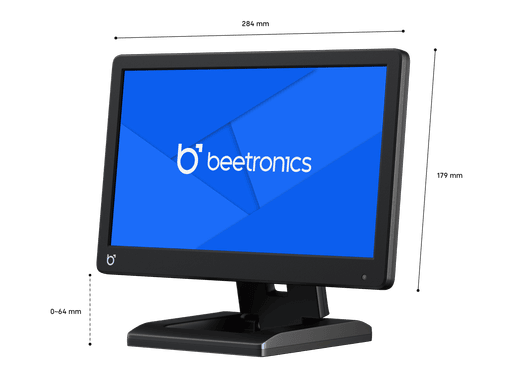

  4. External dimensions: 11.2 x 7.0 x 1.1 inches
Select Display Type
Display Type
CAD $489.00
Order by 11.00 p.m. for Delivery on Thursday

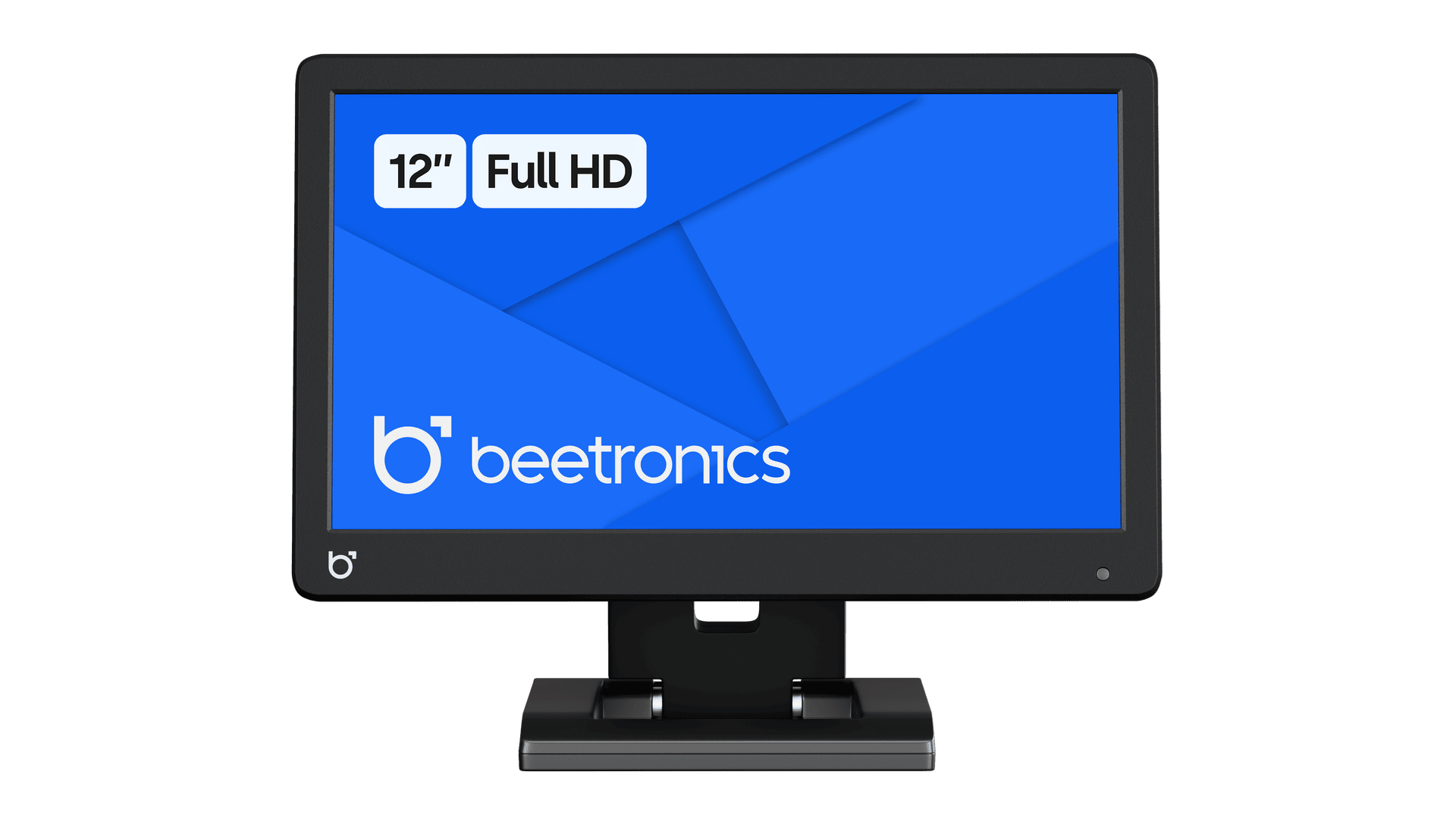

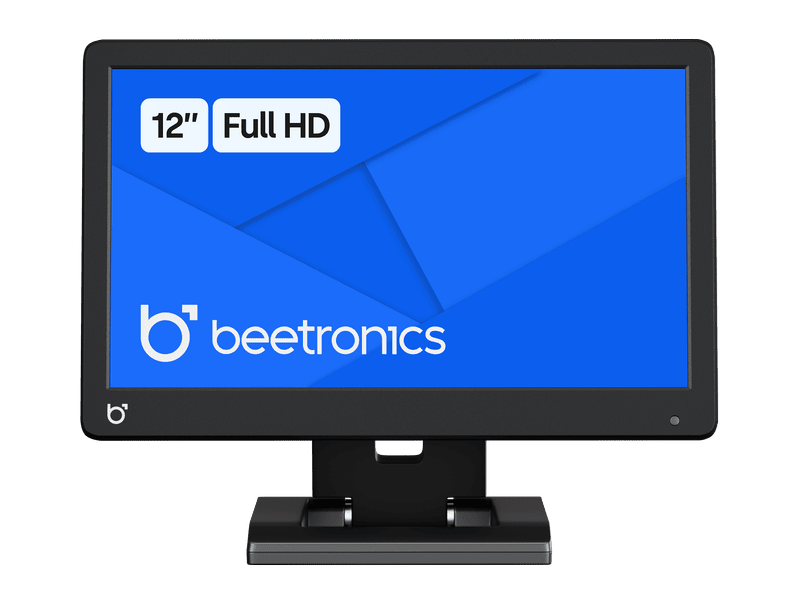

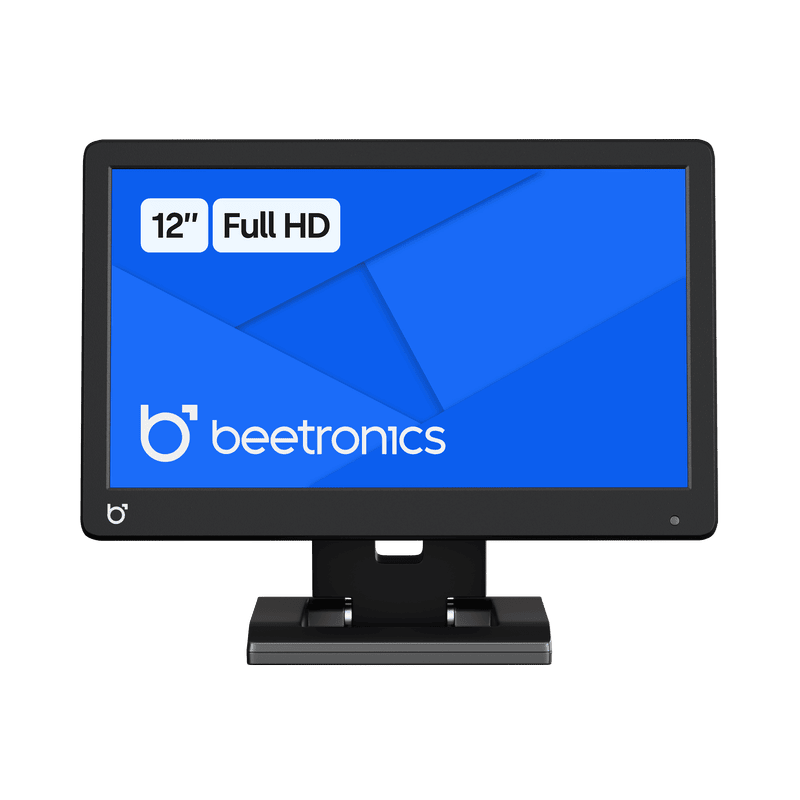

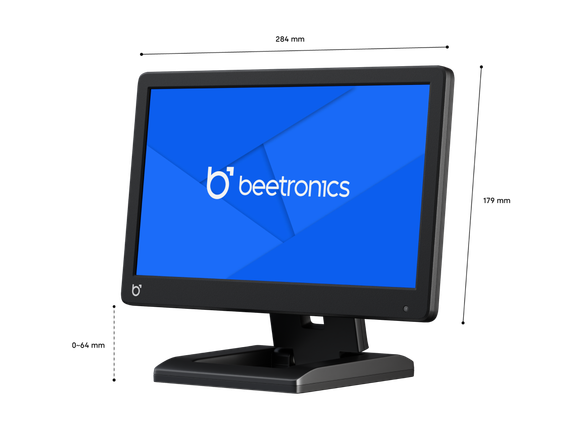

This 12-inch Full HD monitor delivers exceptional picture quality with wide 178° viewing angles. Its lightweight design makes it perfect for both desktop and wall mounting. The 12HD7 provides versatile connectivity options, including HDMI, VGA, BNC, and RCA connections.

Product Highlights
12 Inch Monitor

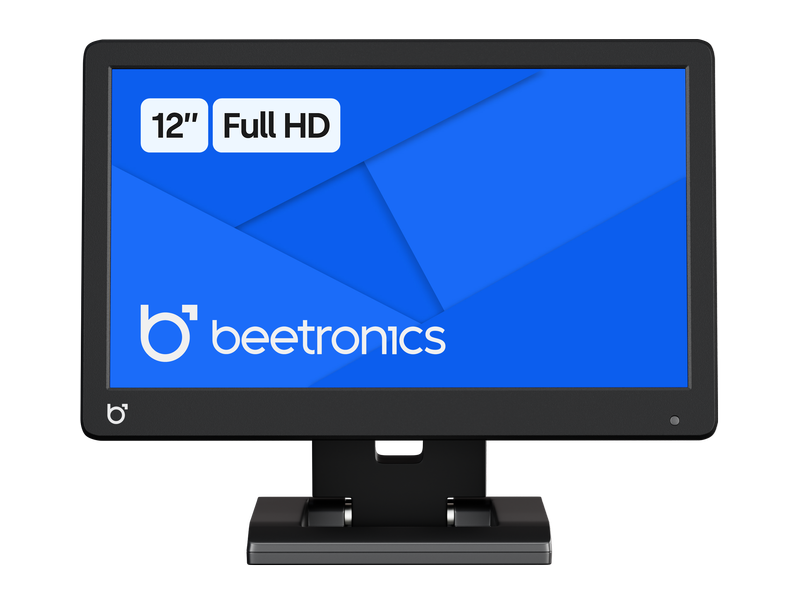

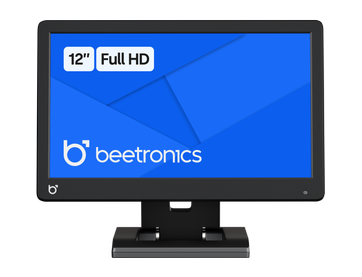

Exceptional Full HD Picture Quality

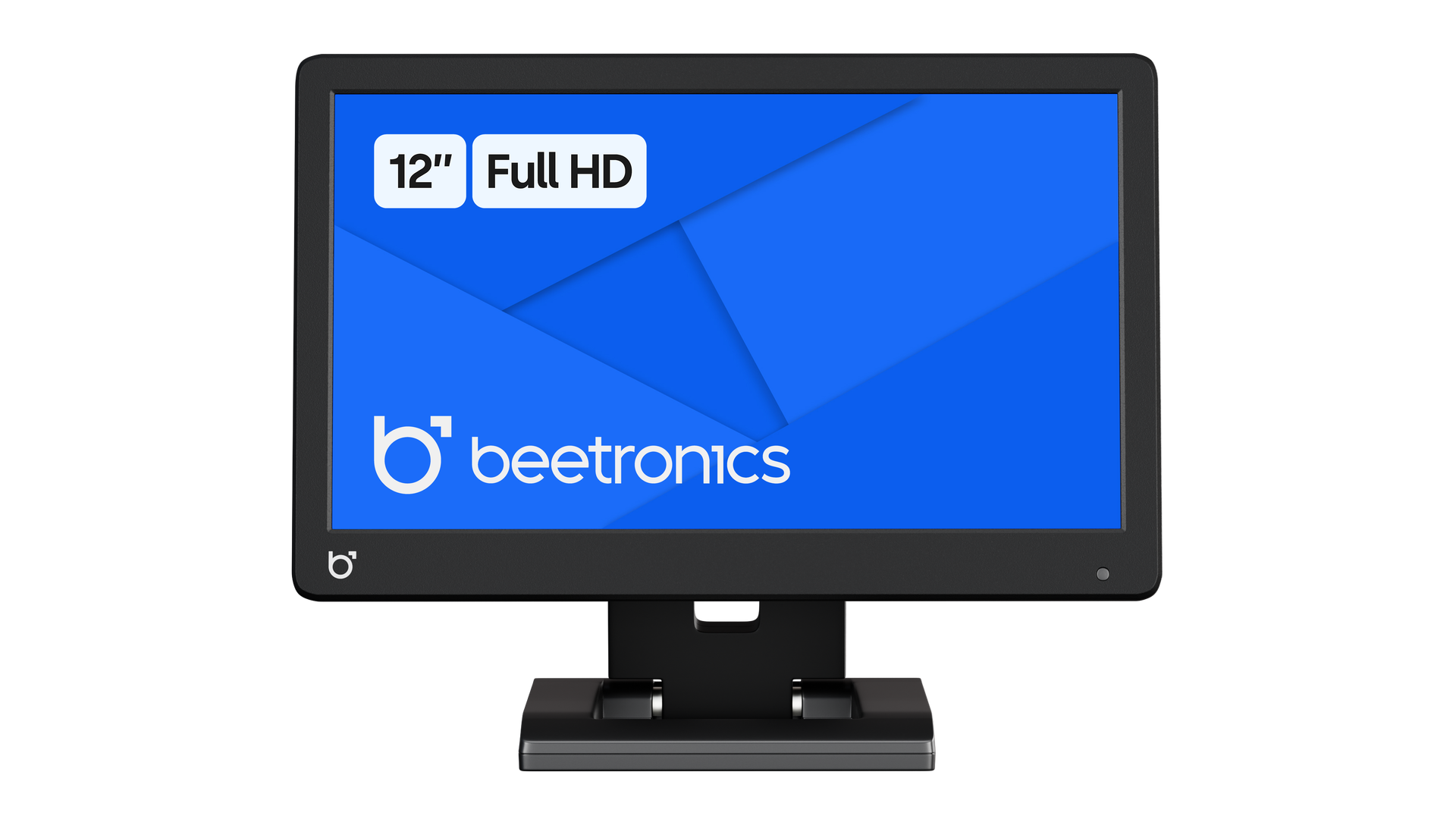

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, colour, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

12 Inch Monitor

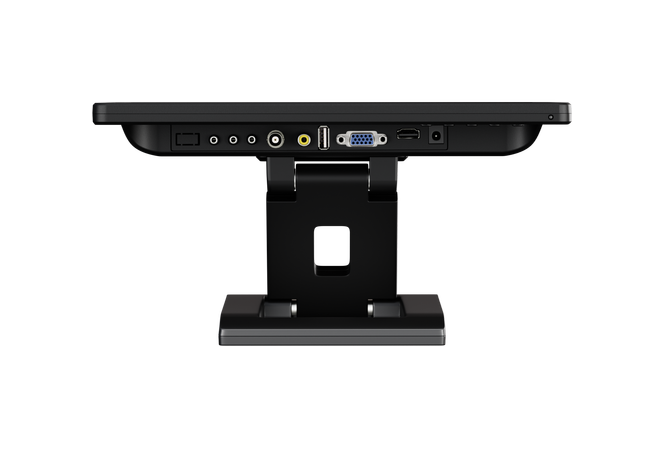

Versatile Connectivity

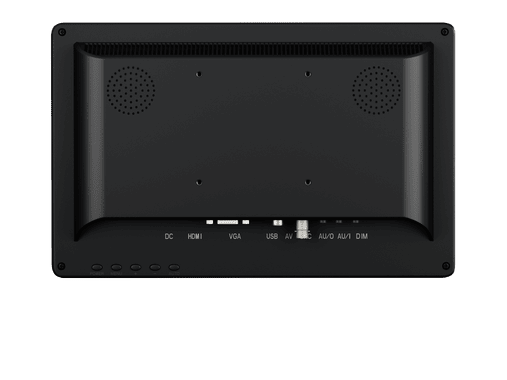

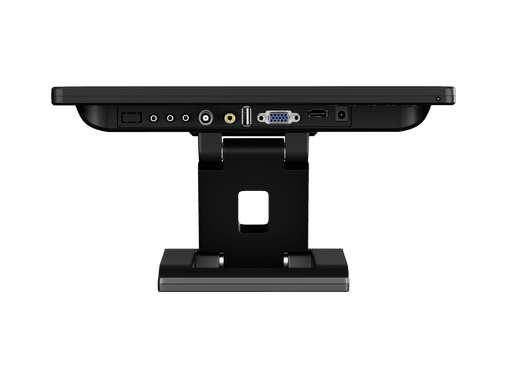

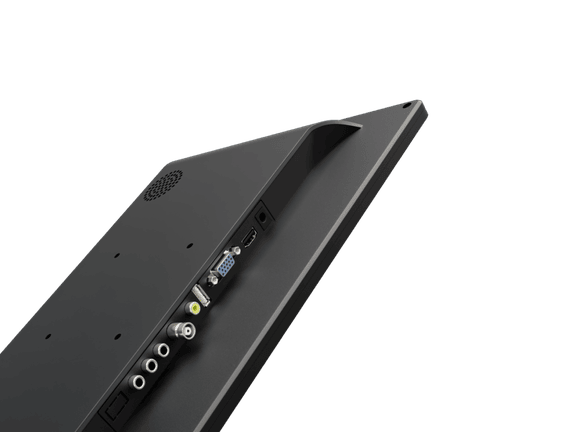

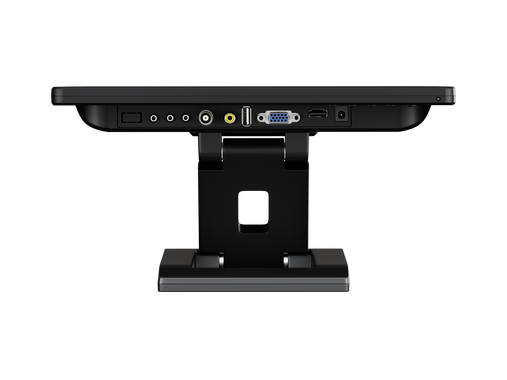

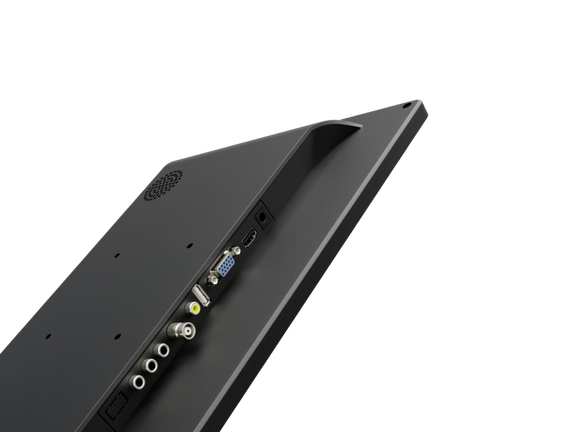

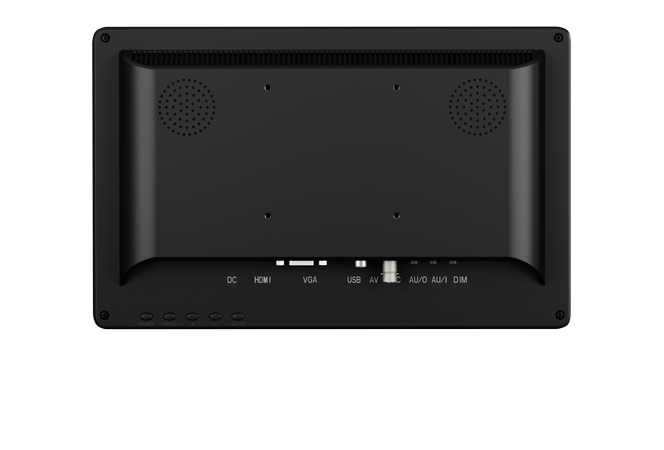

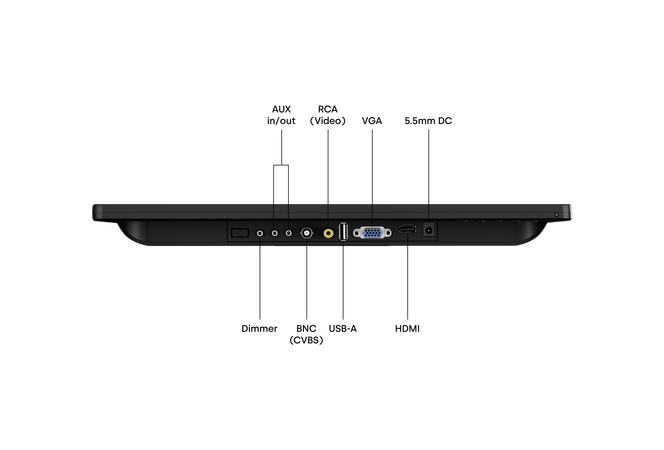

The Beetronics 12HD7 includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

12 Inch Monitor

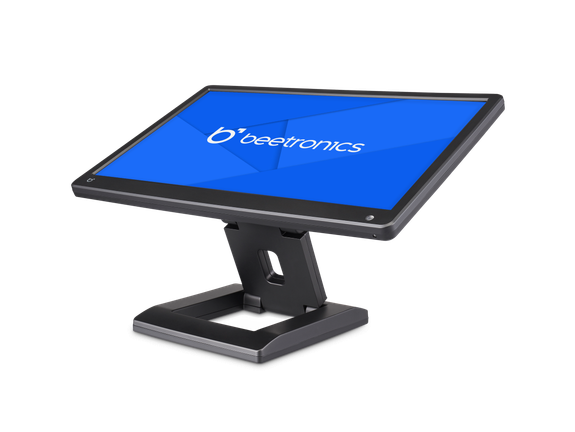

Designed for Professional Use

The 12HD7 is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

12 Inch Monitor

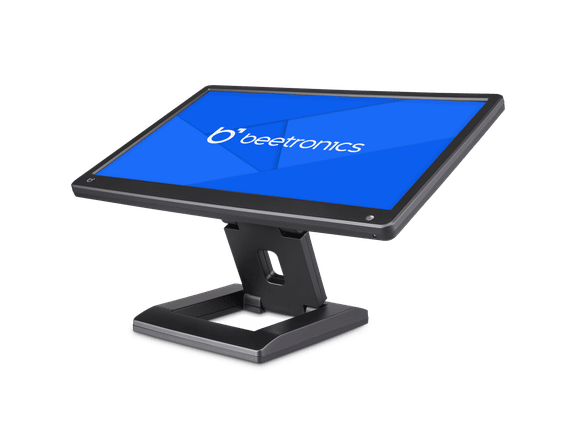

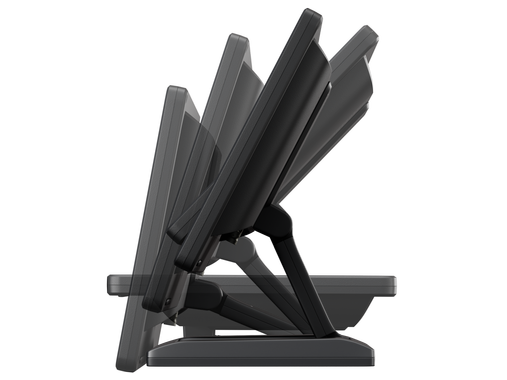

Desktop or Wall Mounting

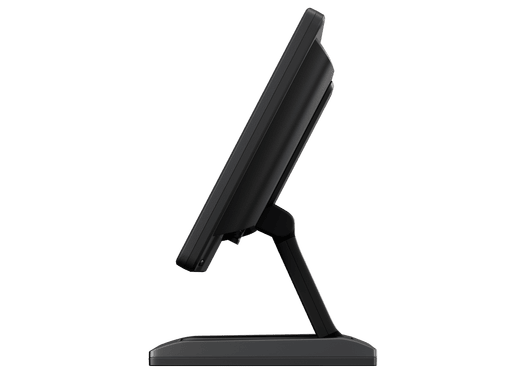

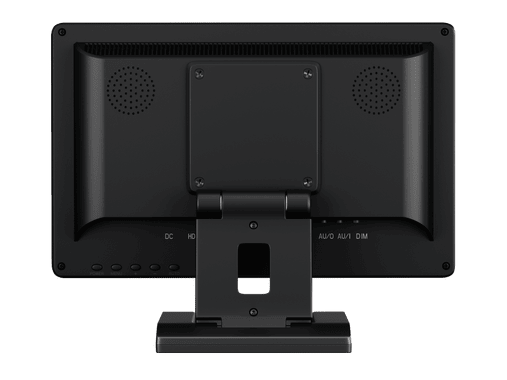

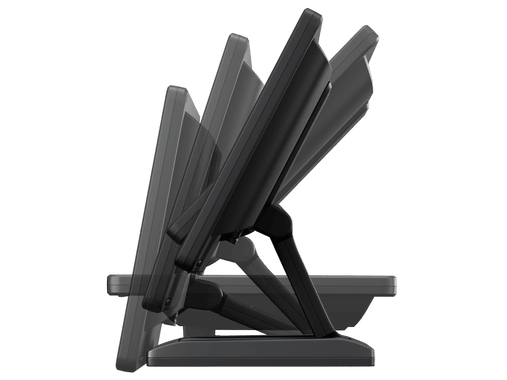

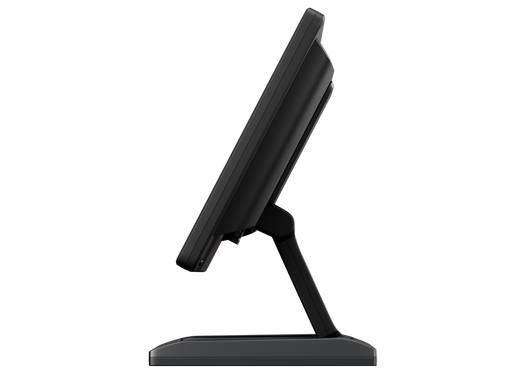

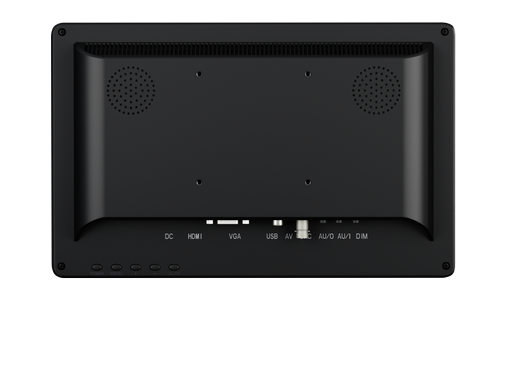

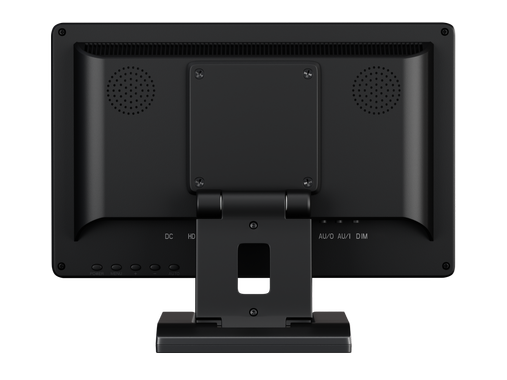

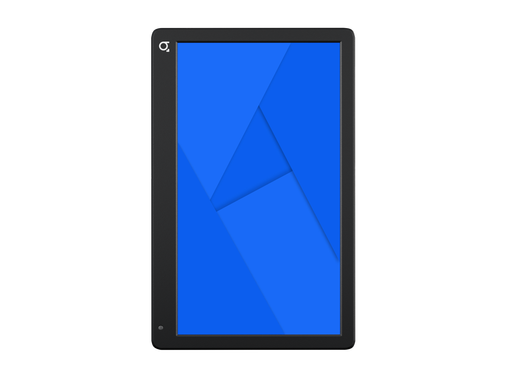

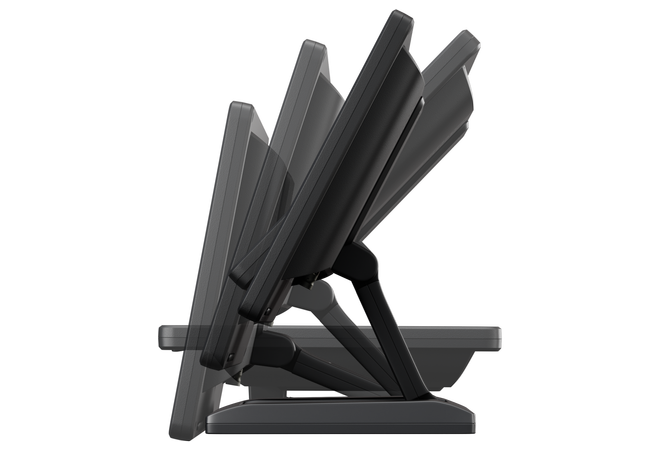

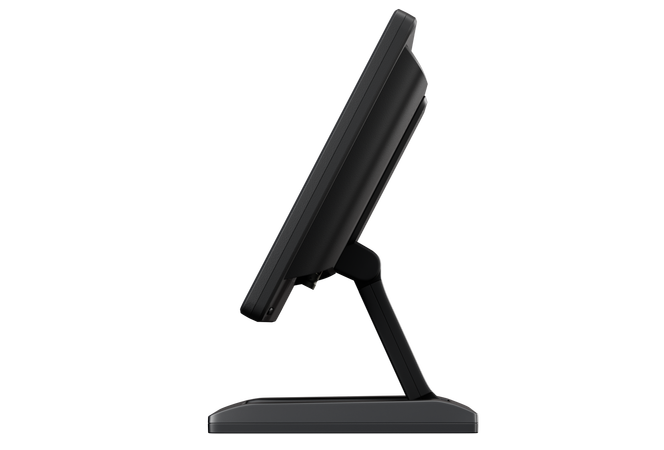

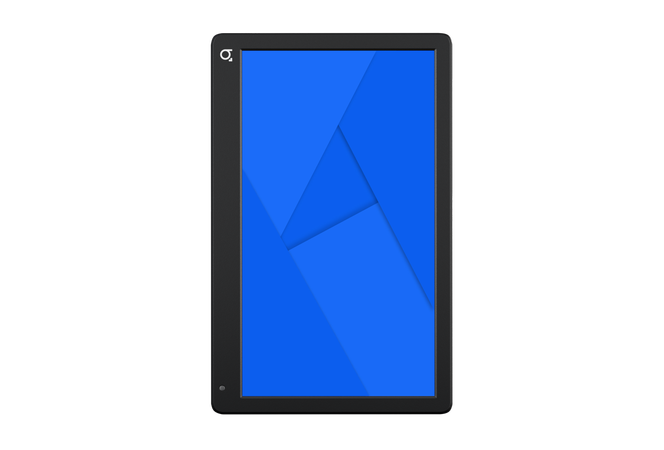

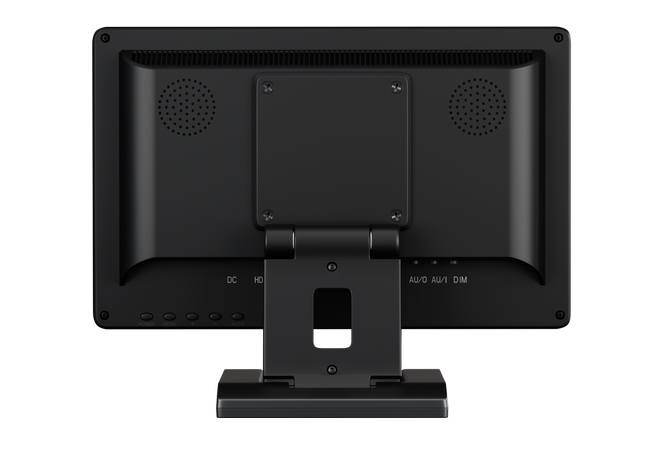

The Beetronics 12HD7 features a fully collapsible stand that can be easily detached to reveal a 75mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
12HD7
Product Name
12 Inch Monitor
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
Diagonal Size
11.6 Inches (296 mm)
Panel Type
IPS-LCD
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
190 PPI
Backlight
LED
Brightness
500 cd/m2
Contrast
1000:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical

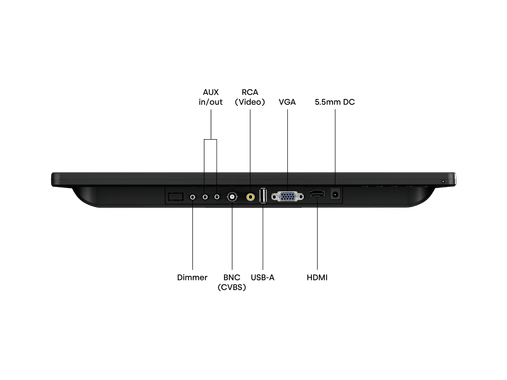

Connectivity
HDMI
1x
VGA
1x
1x
RCA Video
1x
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black

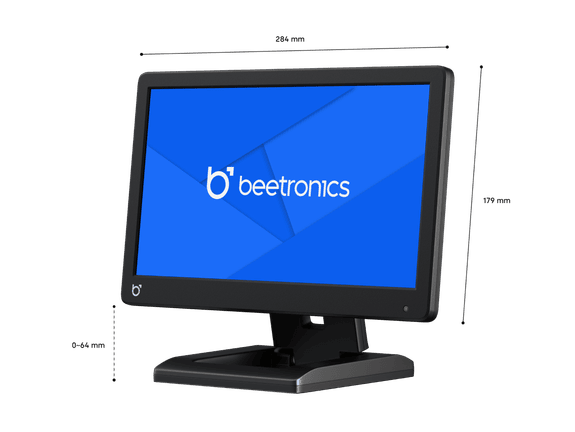

Dimensions (Without Stand)
11.2 x 7.0 x 1.1 Inches
Image Size
10.2 x 5.6 Inches
Weight
1.3 lbs (2.2 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation

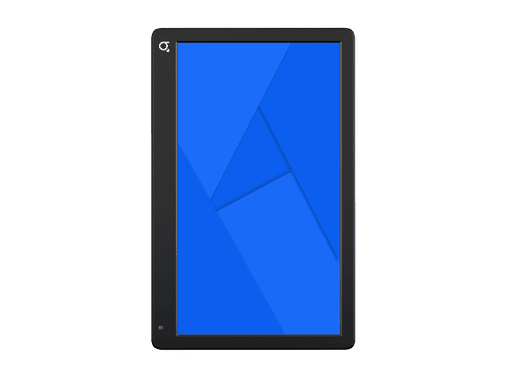

Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-36V
Consumption
Typical 10.2 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC
Package Content
Includes

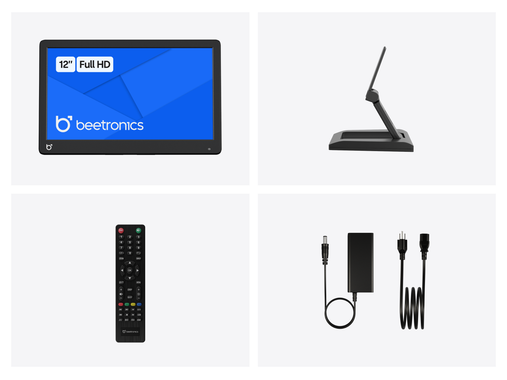

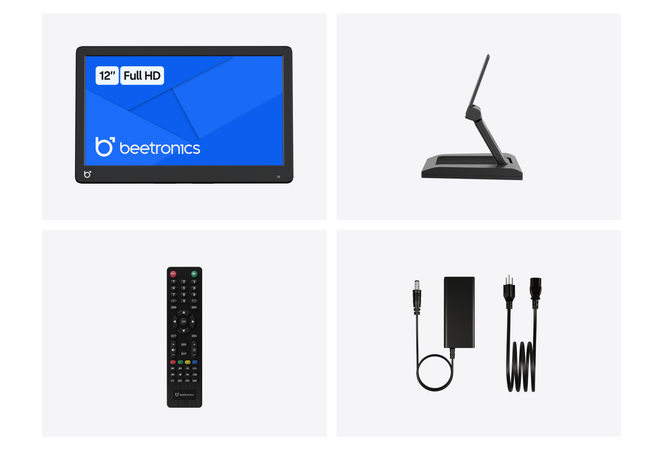

Monitor, Manual, Remote Control, AC Power Adapter, Stand
Compatible Accessories
Rack Mounting
Wall Mounting
Stand
VDK3 Included as Standard
Downloads
Click to Download Product Documentation.
