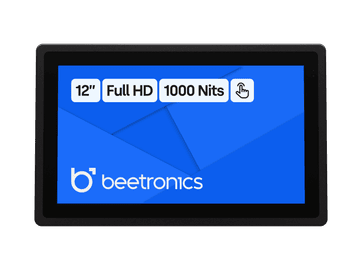

12 Inch Touchscreen Metal (High Brightness)

12 Inch Touchscreen Metal
(High Brightness)

Model: 12HB9M

100+ units in stock

Product Information

High-brightness Full-HD multi-touch panel
Input: HDMI, DisplayPort, USB-C, VGA
Mounting: Flush, embedded, panel mount

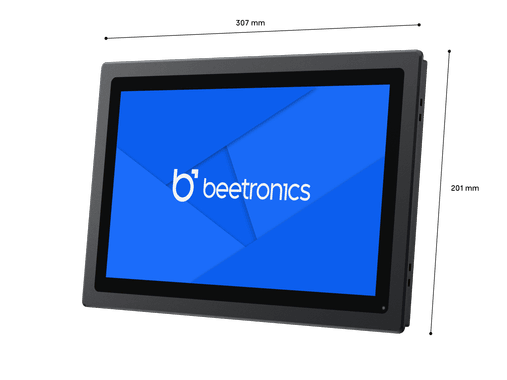

External dimensions: 12.1 x 7.9 x 1.6 inches

CAD $1,099.00

Order by 11.00 p.m. for Delivery on Monday

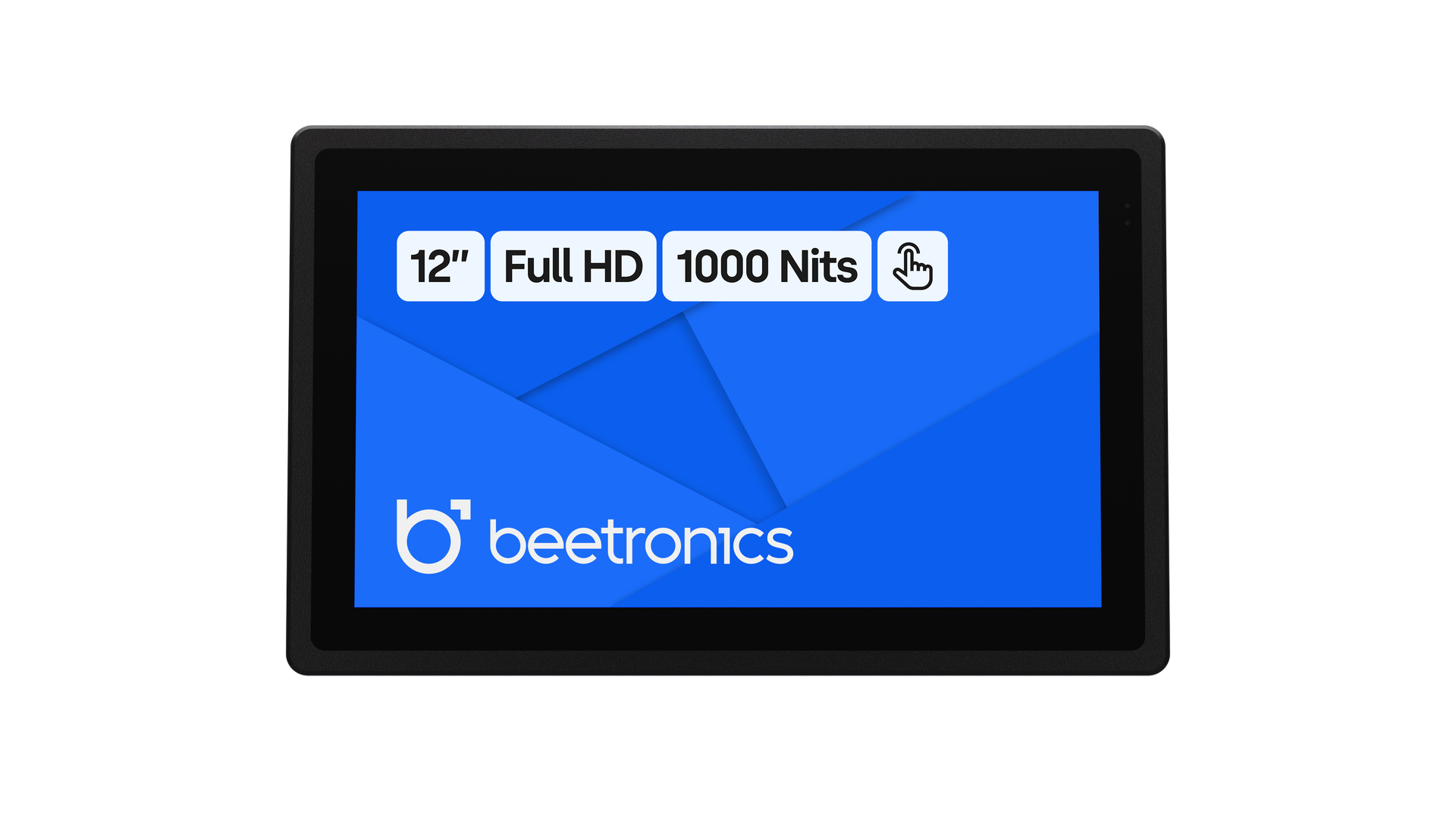

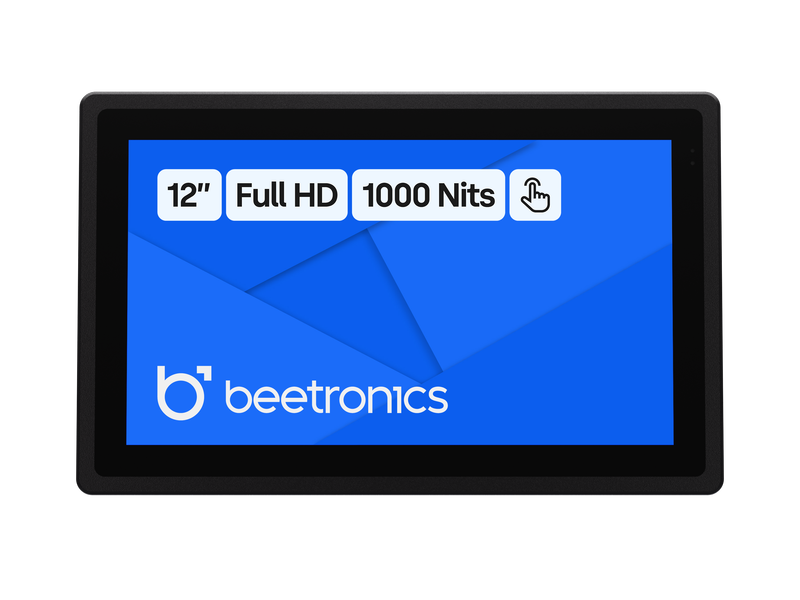

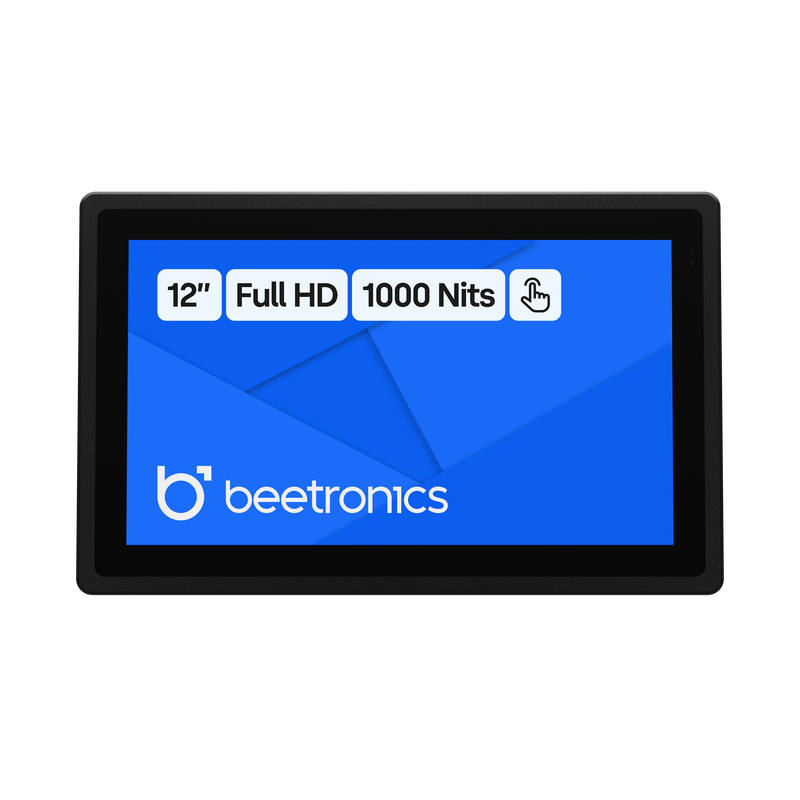

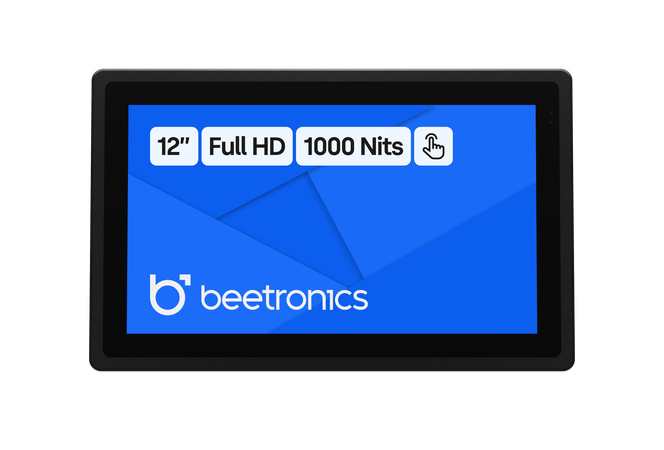

This 12-inch touchscreen monitor features a matte, Full HD panel with a high brightness of 1000 NITS. The display is designed for both indoor and outdoor use and ensures excellent visibility in any environment. Thanks to its sturdy and compact metal casing, the 12HB9M can be seamlessly integrated into any application. The touchscreen is suitable for professional, commercial, and industrial use.

Sunlight-Readable
Full HD Multi-Touch Panel

The 12-inch touchscreen monitor comes with a Full HD panel that offers sharp images and accurate colours. The touchscreen features an optically bonded matte front panel with a high brightness level of 1000 nits. This provides clear, reflection-free viewing even in the brightest environments.

Thanks to the integrated light sensor, the screen’s brightness can automatically adjust based on the surrounding light levels. You also have the option to manually adjust the brightness using the included remote control or an optional dimmer knob.

Compatible With Windows,
macOS, ChromeOS and Linux

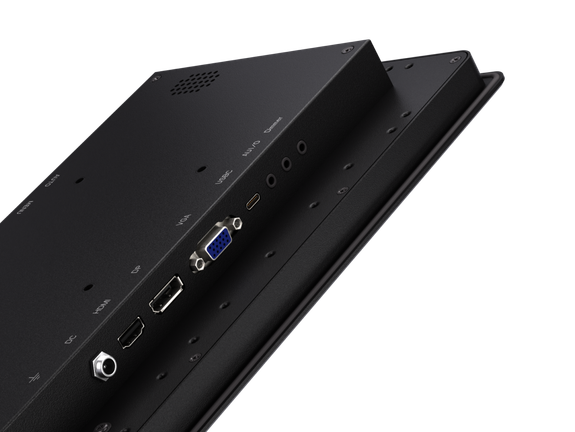

This 12-inch touchscreen monitor is compatible with devices running Windows, macOS, ChromeOS, or Linux operating systems. It offers versatile connectivity options, including HDMI, DisplayPort, USB-C and VGA display inputs. Touch functionality is easily enabled via the included USB cables. Once connected, the display is automatically recognized and ready for immediate use.

Designed for
Professional Use

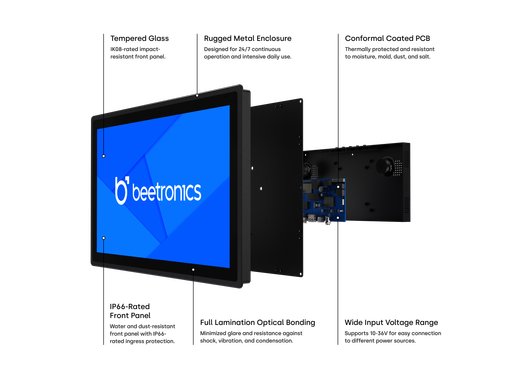

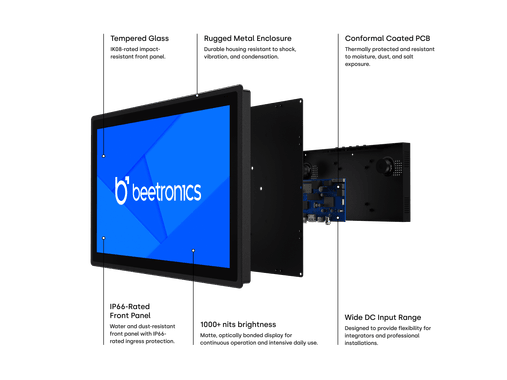

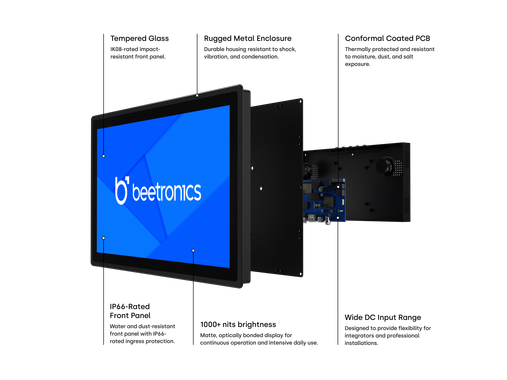

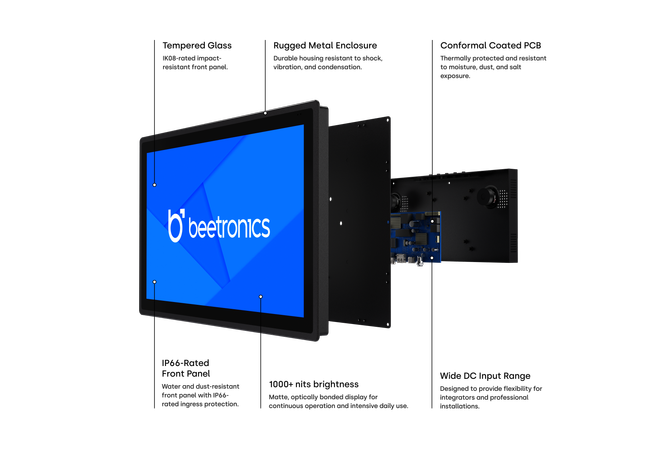

The 12HB9M is designed for professional applications and continuous use. It features high-quality industrial components and is encased in a durable metal housing with an impact-resistant front panel.

This display supports a wide input voltage range of 10-36V DC, making it compatible with standard outlets as well as common 12V and 24V power sources.

Seamless Integration
into Any Application

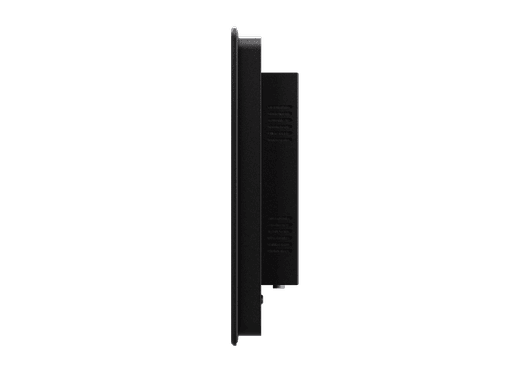

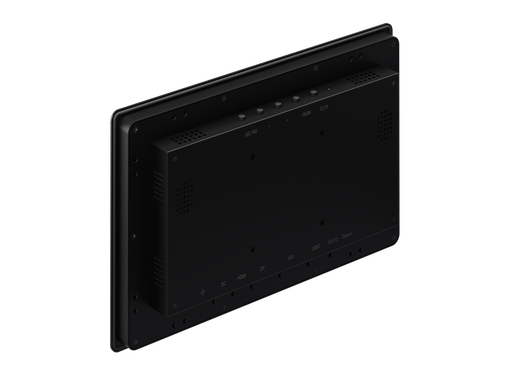

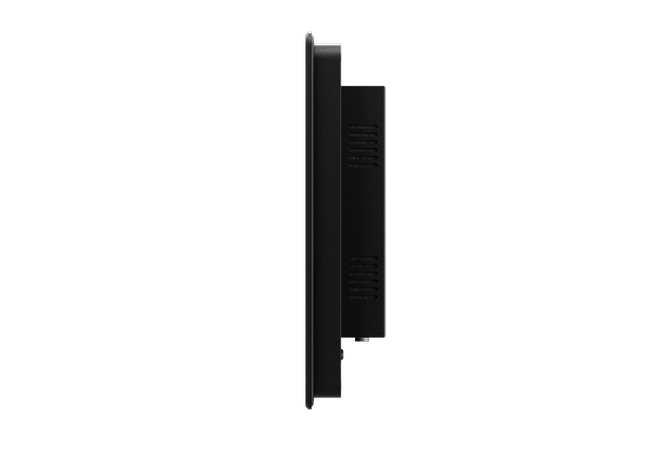

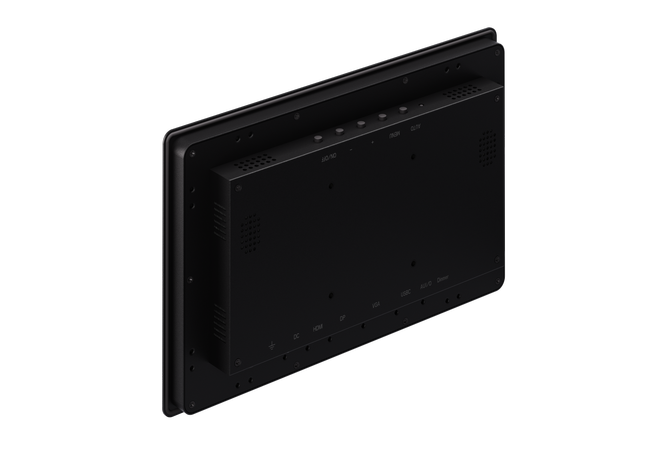

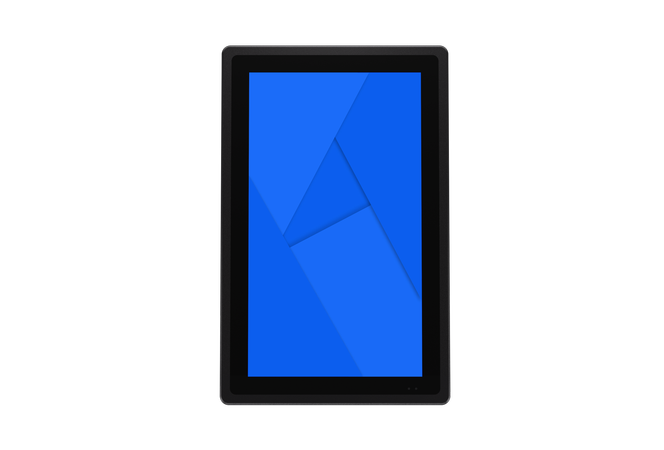

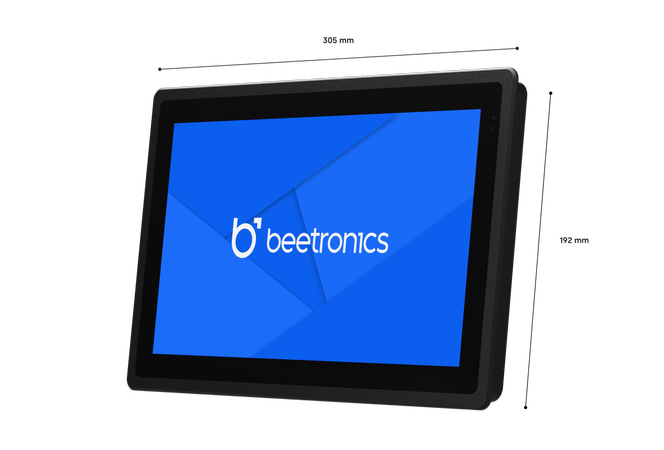

The touchscreen monitor features a rugged metal casing and a front panel that is both waterproof and dustproof. Its slim, symmetrical bezel offers a sleek, flat finish and is suitable for mounting in both portrait and landscape orientations.

This touchscreen does not require ventilation, making it easy to integrate into any application.

General

Manufacturer

Beetronics

Item Number

12HB9M

Product Name

12 Inch Touchscreen Metal (High Brightness)

Warranty

2 Years

Datasheet

Download PDF

Drivers

Download Touchscreen Driver

User Manual

Download PDF

Quickstart

Download PDF

Supported Operating Systems

Windows

Windows 8, 10, 11

Windows Embedded

Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise

macOS

Sequoia, Sonoma, Ventura

Linux

All Linux Distributions

ChromeOS

All ChromeOS Versions

Brightsign

All BrightsignOS Versions

Samsung DeX

All Samsung DeX Versions

Panel

Diagonal Size

11.6 Inches (296 mm)

Aspect Ratio

16:9 (4:3 Adjustable)

Native Resolution

1920 x 1080

Supported Resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels Per Inch

190 PPI

Brightness

1000 nits

Contrast

1000:1

Colour Encoding System

PAL/NTSC/SECAM

Viewing Angle

170° Horizontal, 170° Vertical

Surface

Tempered Glass (Matte)

Touch Technology

Capacitive, 10-Point Multi-Touch (PCAP), Optically Bonded

Touch Control

Stylus, Hand, Glove

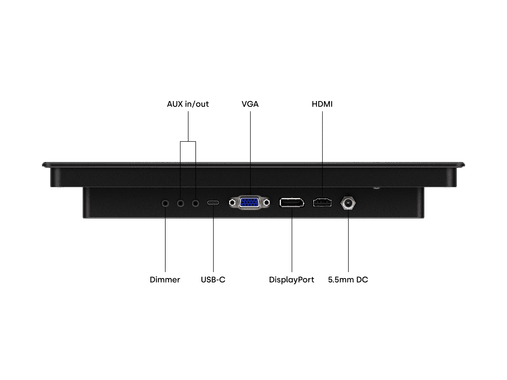

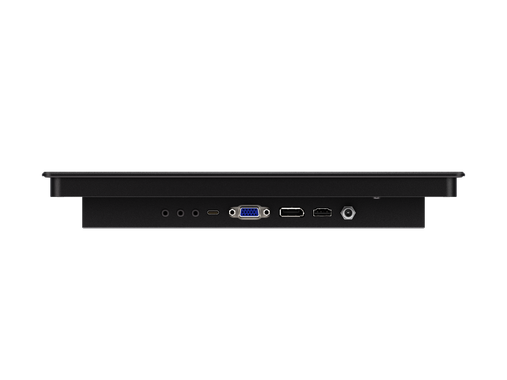

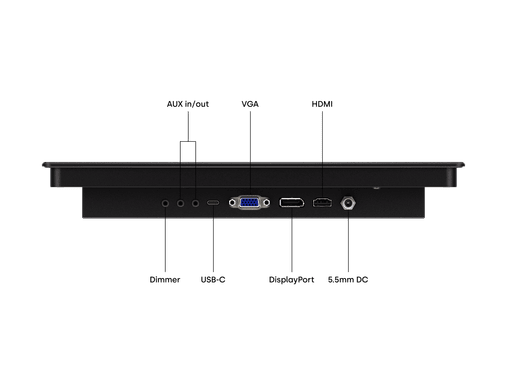

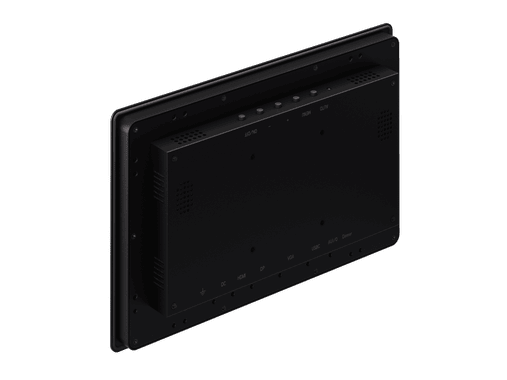

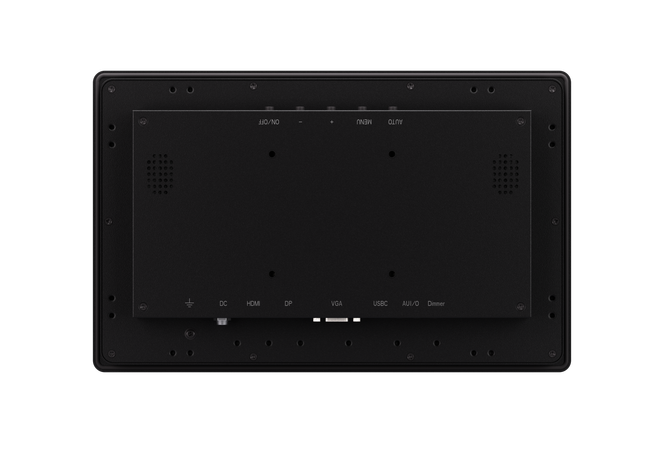

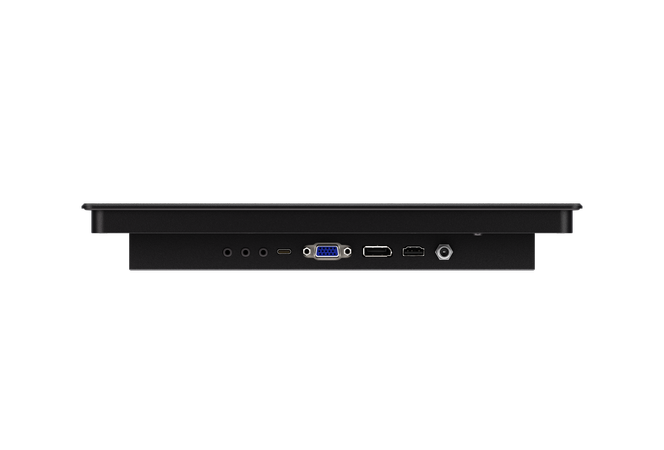

Connectivity

HDMI

DisplayPort

VGA

USB-C

1x Video, Audio, Touch

USB-A

Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.

AUX Input (3.5mm)

AUX Output (3.5 mm)

Size & Weight

Colour

Black

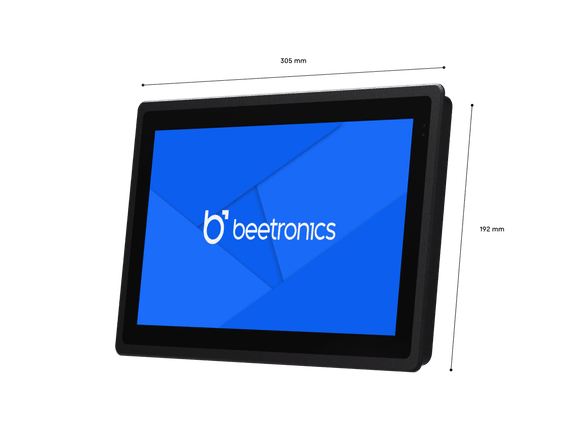

Dimensions (Without Stand)

12.1 x 7.9 x 1.6 Inches

Active Area

10.1 x 5.7 Inches

Weight

4.1 lbs

Technical Drawing

Download PDF

3D Drawing

Download CAD/STP

Features & Functions

Key-Lock

The control buttons can be blocked.

Auto-On

Automatically powers on when it receives current or a signal.

Dimmable

Automatic dimming based on ambient light via an integrated light sensor. Manual dimming via the remote control or an optional dimmer knob.

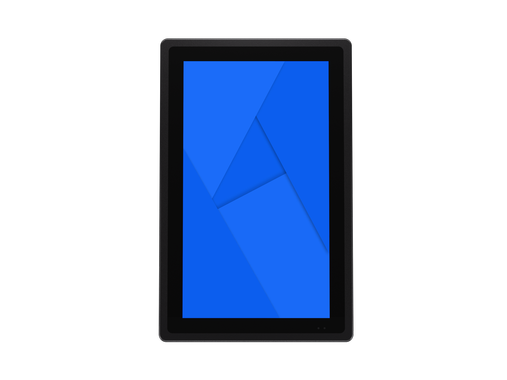

Orientation

Landscape, Portrait, Face-up

Power

Input Voltage

DC 9-36V

Consumption

Typical 15.0 W (On), 0.4 W (Standby)

Power Supply

External DC (Power Adapter Included)

Power Adapter

Input: AC100-240V, 50/60Hz , Output: 19V-1.5A

Power Adapter Output Connector

DC Barrel Plug 2.1mm x 5.5mm

Environmental

Operating Temperature

-4°F to +158°F

Storage Temperature

-4°F to +158°F

Operating Humidity

20% - 85% Non-Condensing

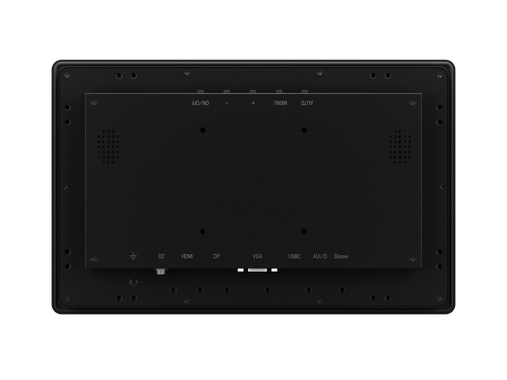

Mounting

Wall Mount

VESA 75x75mm

Flush Mount

Panel Mount Accessories Included

Certifications & Standards

IP Rating

IP65 Front Panel, IP65 When Panel Mounted

Impact Protection

IK08

Certifications

CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

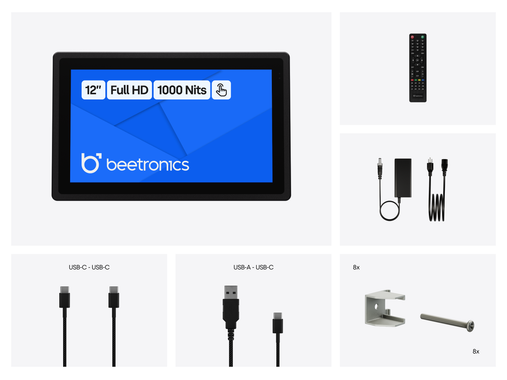

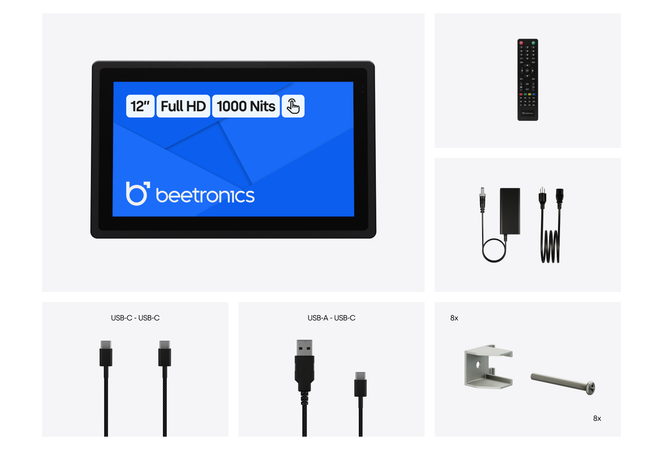

Package Content

Includes

Touchscreen, USB-C to USB-C Cable, USB-C to USB-A Cable, Remote Control, Mounting Clamps (8x), Mounting Strips (8x), Screws (8x), Rubber Seal, Power Adapter, Manual

Compatible Accessories

Dimmer

Compatible With External Dimmer (DMK7/DMK8)

Wall Mounting

Compatible With Flat Wall Mount Bracket (VWB1)

Touch Pen

Compatible With CTS7 Capacitive Touchscreen Stylus
