Model: 10TS7
100+ units in stock
Product Information
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop
  4. External dimensions: 9.5 x 6.7 x 1.3 inches
Select Display Type
Display Type
Monitor
Touchscreen
CAD $569.00
Order by 11.00 p.m. for Delivery on Monday

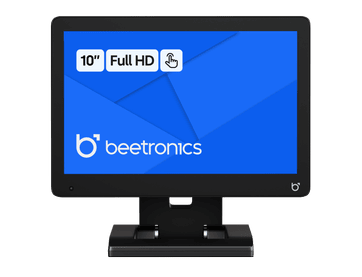

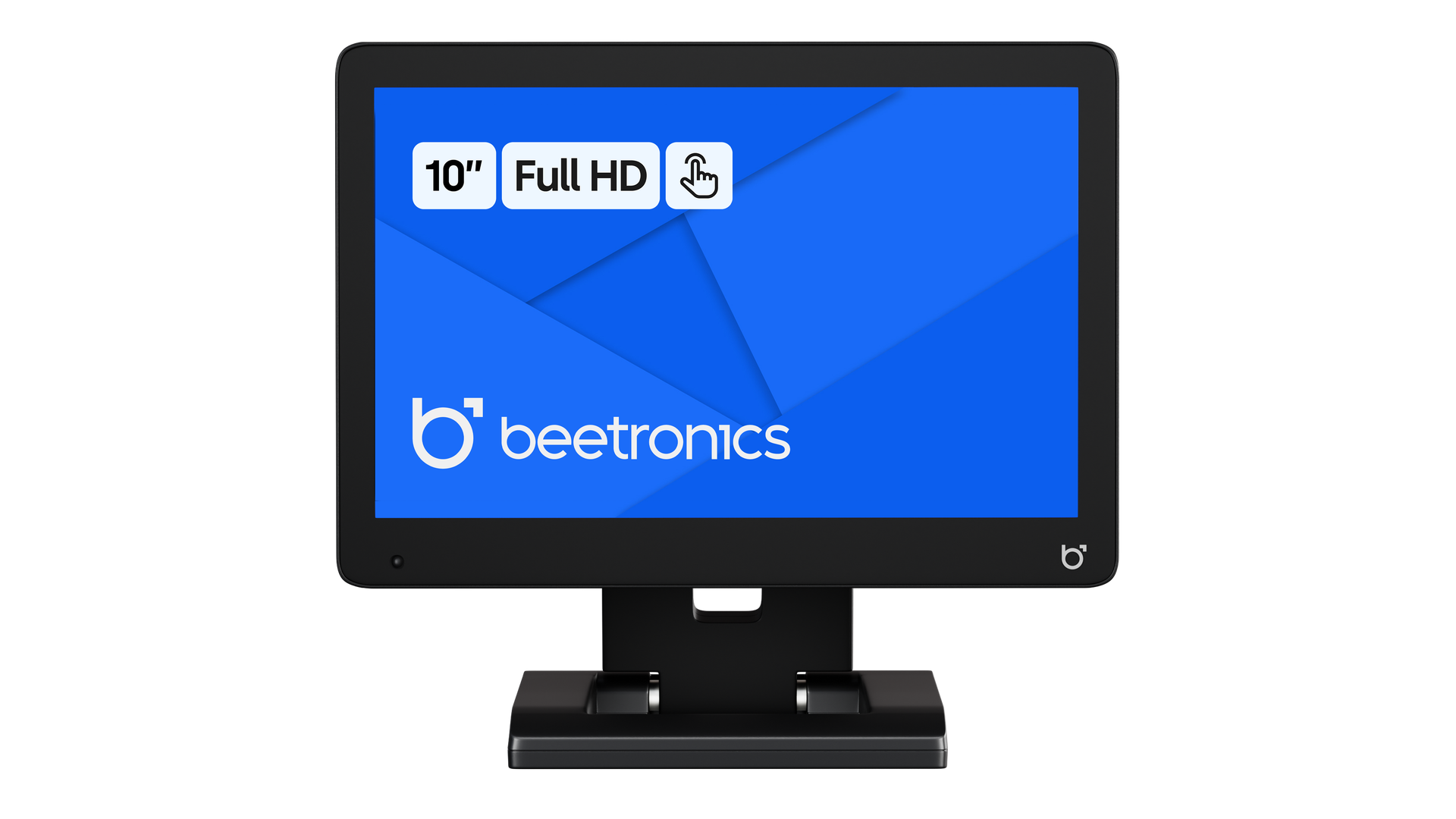

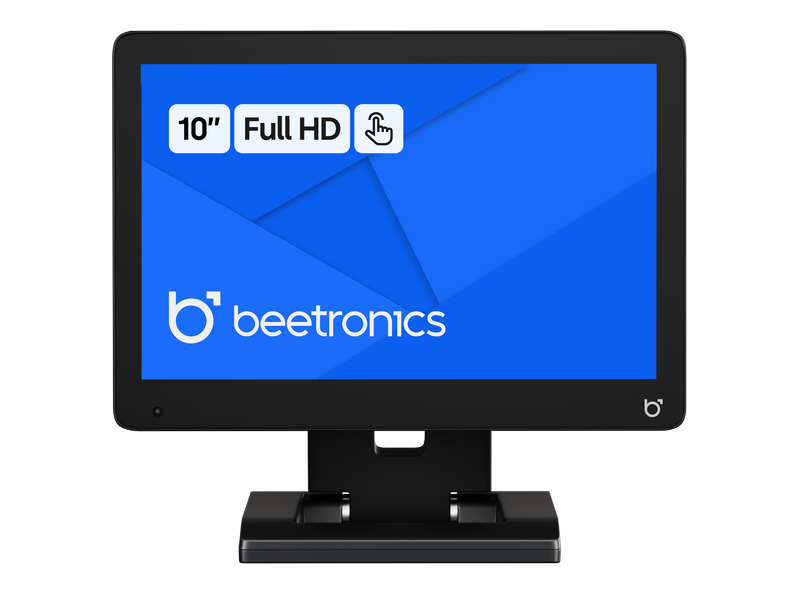

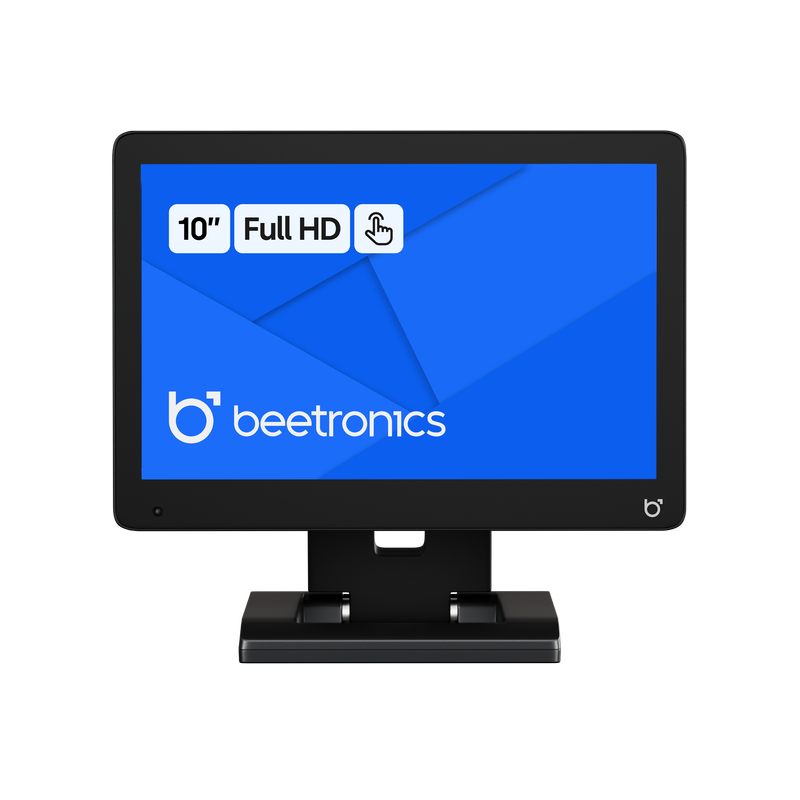

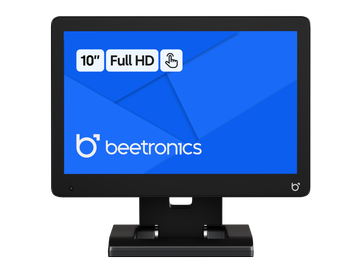

This Full HD 10-inch touchscreen features a reliable multi-touch panel which ensures consistent and precise operation. The 10TS7 delivers crystal-clear picture quality with exceptional 178° viewing angles. It is compatible with devices running Windows, macOS, ChromeOS, or Linux. Designed for professional use, this touchscreen monitor is easy to setup and built for intensive applications.

Product Highlights
10 Inch Touchscreen

Full HD Multi-Touch Panel

Equipped with a native Full HD IPS panel, this touchscreen offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The 10TS7 includes a capacitive multi-touch screen that supports up to 10 simultaneous touch points. This allows for precise operation and enables gestures such as swiping, zooming, and pinching.

10 Inch Touchscreen

Compatible With Windows,
macOS, ChromeOS and Linux

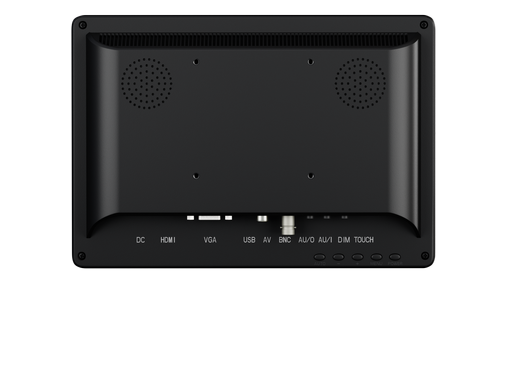

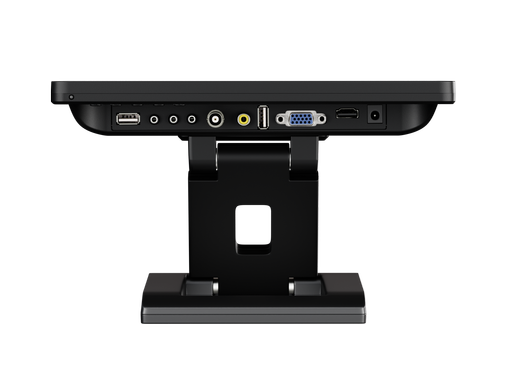

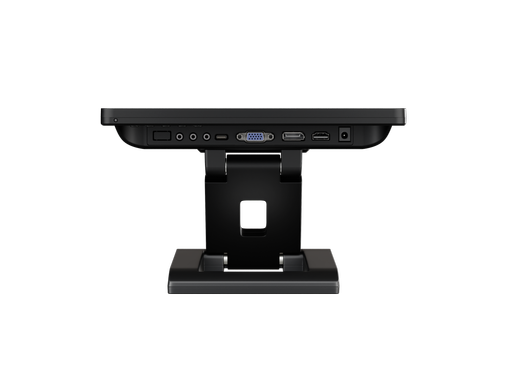

This 10-inch touchscreen monitor is compatible with devices running Windows, macOS, ChromeOS, or Linux operating systems. It offers versatile connectivity options, including HDMI, VGA, RCA, and BNC display inputs. Touch functionality is easily enabled via the included USB-A cable. Once connected, the display is automatically recognized and ready for immediate use.

10 Inch Touchscreen

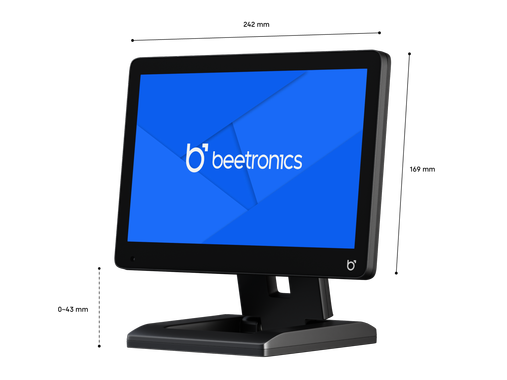

Designed for Professional Use

The 10TS7 is built for continuous operation and professional use. It’s crafted with high-quality components to ensure reliable and precise performance, even in the most demanding environments. The IP65-rated front panel protects the screen against water and dust. The touchscreen accepts a wide input voltage range from 9 to 33 volts and features a fully dimmable backlight.

10 Inch Touchscreen

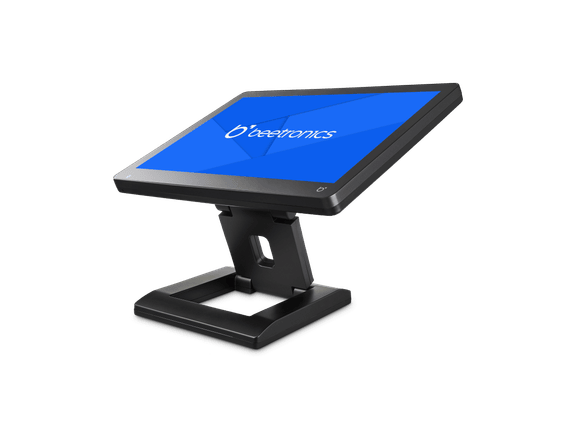

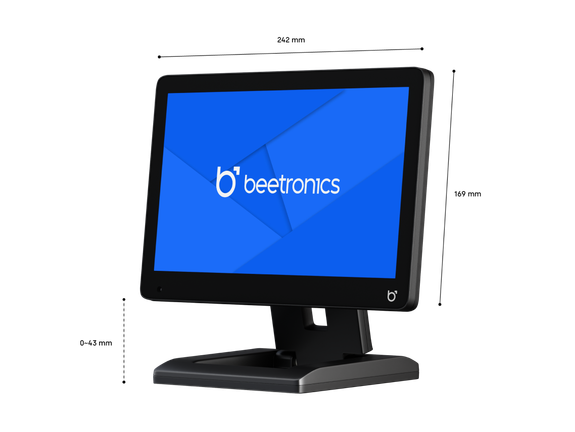

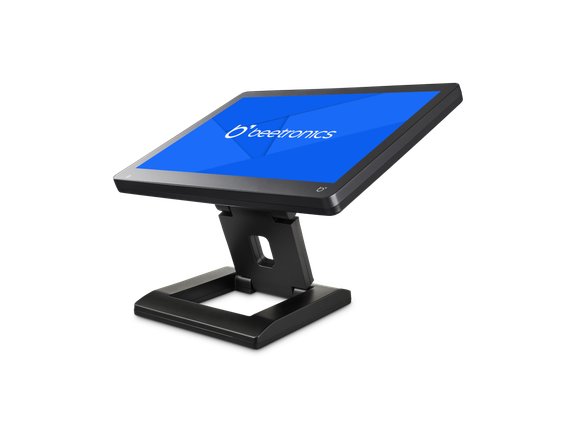

Desktop and Wall Mounting

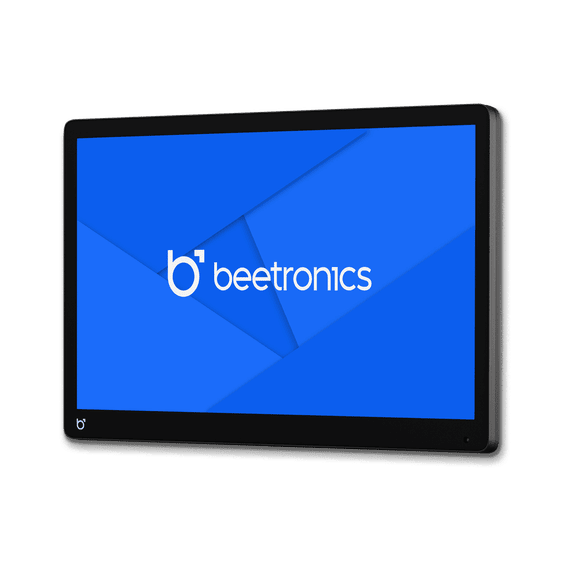

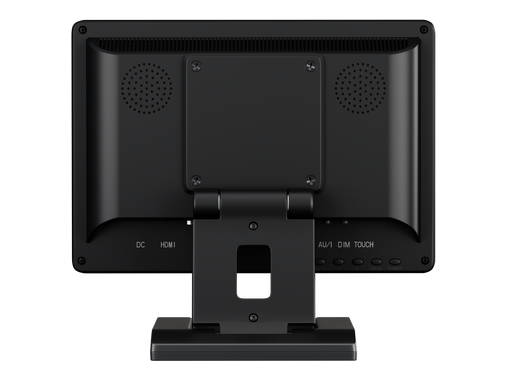

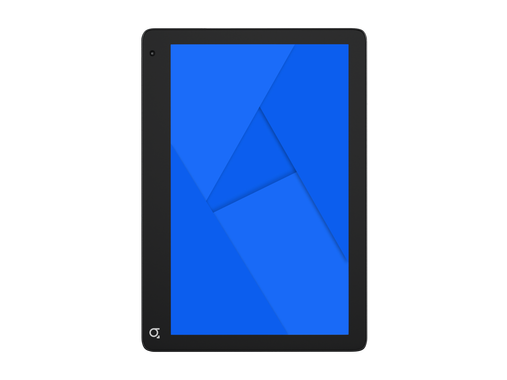

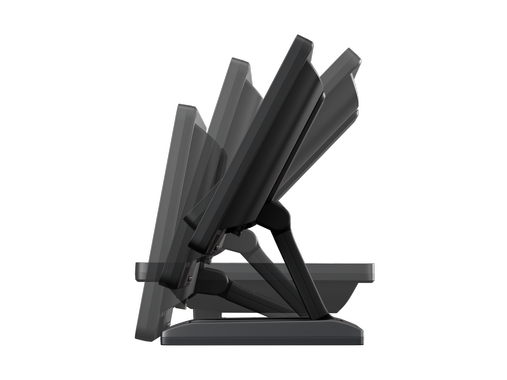

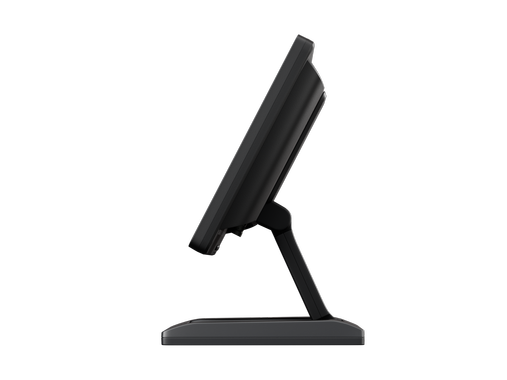

The Beetronics 10TS7 features a fully collapsible stand that can be easily detached to reveal a 75mm VESA mount. This allows for simple installation on any universal wall bracket, in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Item Number
10TS7
Product Name
10 Inch Touchscreen
Warranty
2 Years
Datasheet
Drivers
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Samsung DeX
All Samsung DeX Versions
Panel
10.1 Inches (258 mm)
IPS-LCD
16:10 (16:9, 4:3 Adjustable)
10 ms
50K
1280 x 800
1920 x 1200 (max), 640 x 480 (min)
224 PPI
LED
300 cd/m2
1500:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Stylus, Hand, Glove
Connectivity
1x
1x
1x
1x
Only for Touchscreen Functionality
1x
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
9.5 x 6.7 x 1.3 Inches
8.6 x 5.4 Inches
1.5 lbs (2.4 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Landscape, Portrait, Face-up
Power
DC 9-36V
Typical 8.6 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

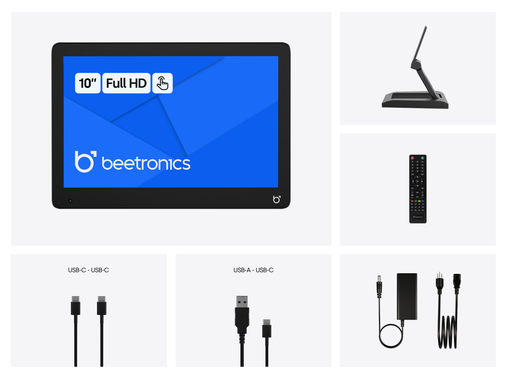

Package Content
Includes

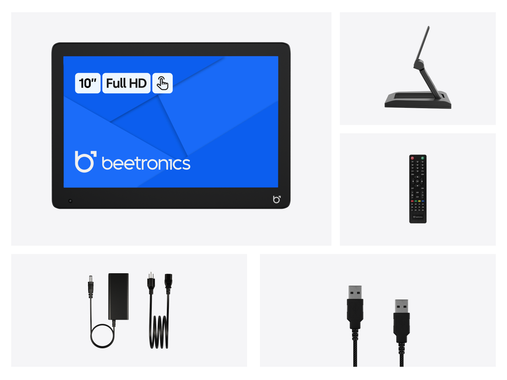

Touchscreen, AC Power Adapter, Remote Control, USB Cable, Stand, Manual
