Model: 10VG7M
100 units in stock
Product Information
  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 8.9 x 6.9 x 1.4 inches
Select Display Type
Display Type
CAD $469.00
Order by 4:30 PM ET for same-day shipping

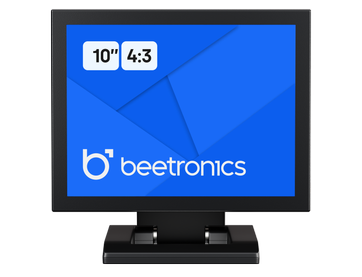

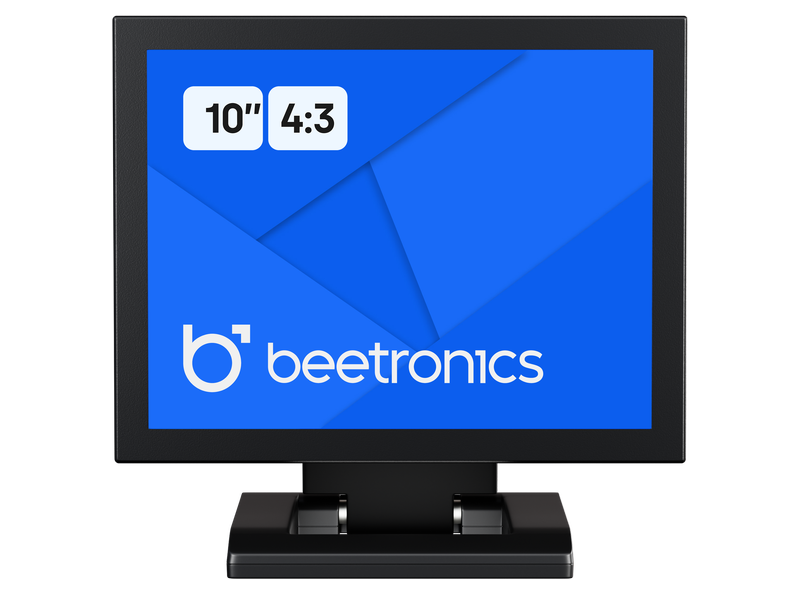

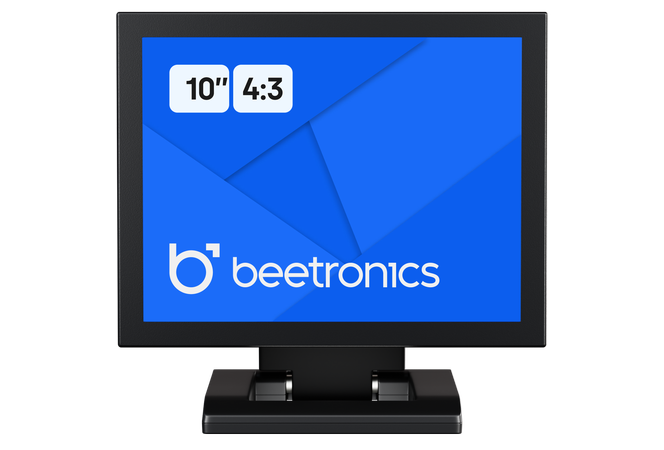

This 10-inch monitor features a matte IPS panel with a 4:3 aspect ratio, ensuring sharp image quality and wide 178° viewing angles. Its durable metal housing makes it perfect for desktop use and suitable for both flush and wall mounting.

Product Highlights
10 Inch Monitor Metal (4:3)

4:3 Aspect Ratio

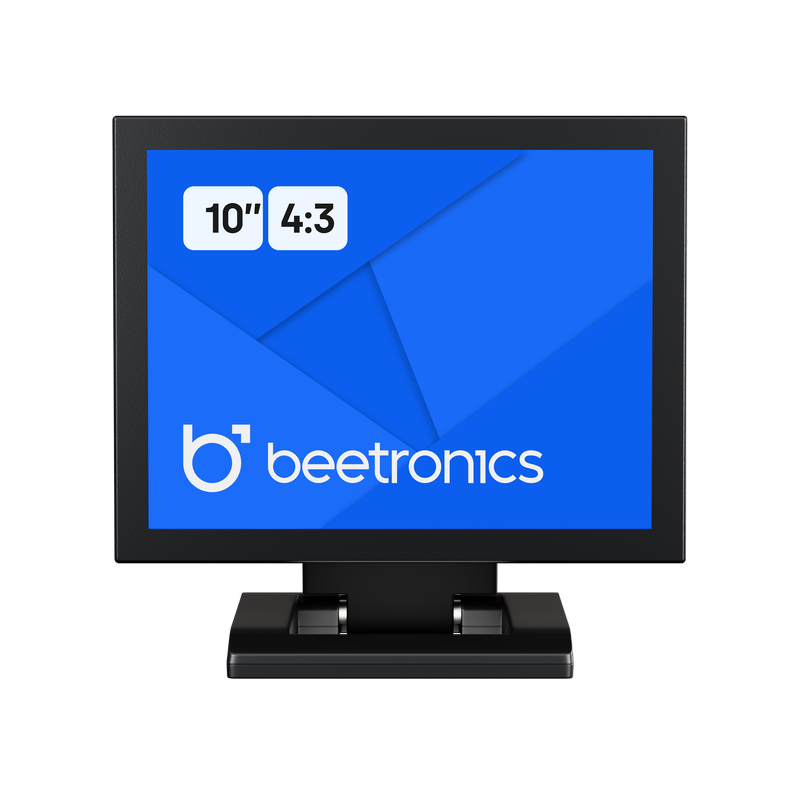

This 10-inch monitor features an IPS panel with a 4:3 aspect ratio. Enjoy clear, vibrant images with impressive 178° viewing angles thanks to advanced IPS technology. The anti-glare screen minimizes distracting reflections, while the easy-to-adjust controls let you fine-tune contrast, colour, and brightness to your liking. Perfect for displaying 4:3 content, this monitor can scale up to 1080p resolution.

10 Inch Monitor Metal (4:3)

Versatile Connectivity

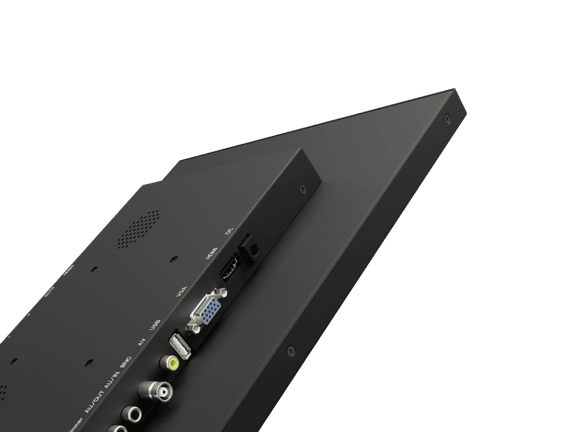

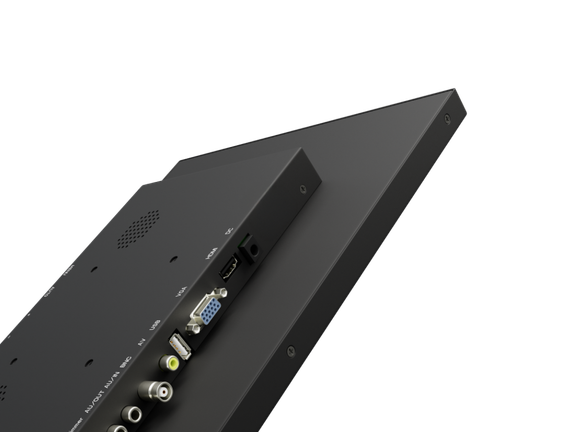

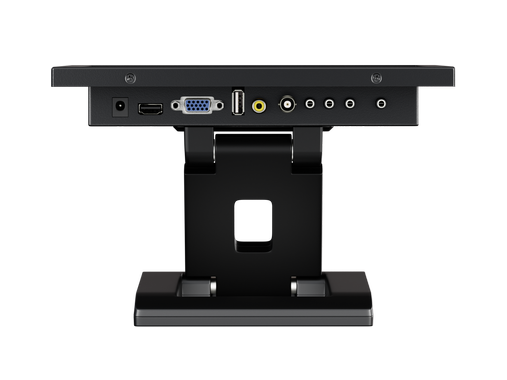

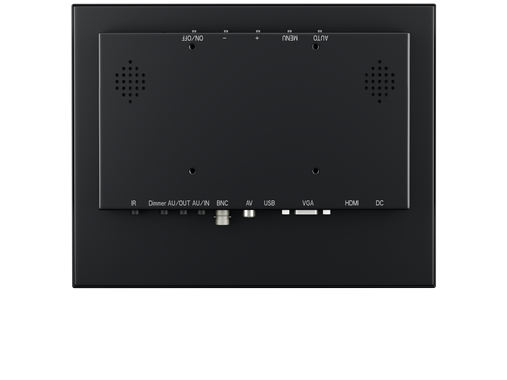

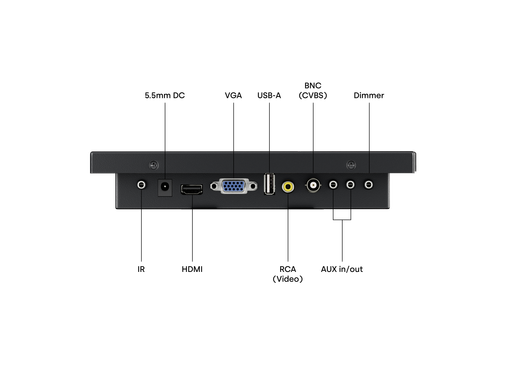

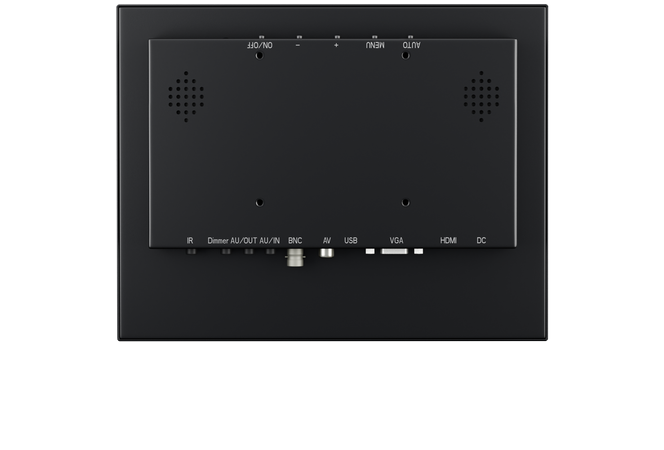

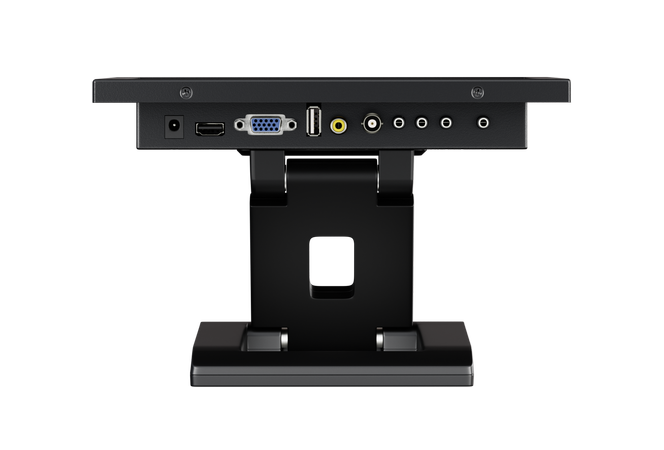

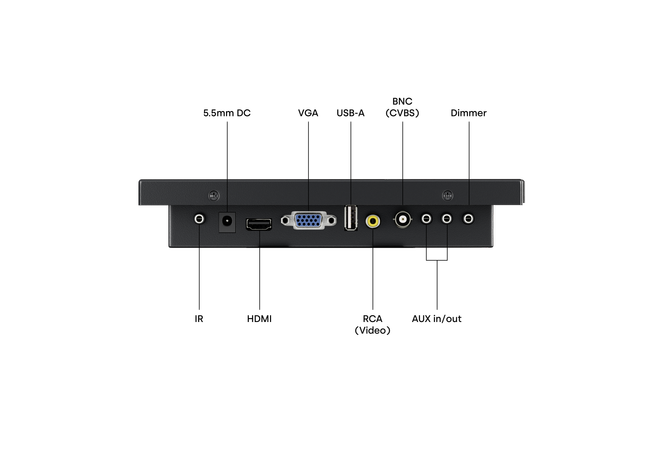

The Beetronics 10VG7M includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

10 Inch Monitor Metal (4:3)

Designed for Professional Use

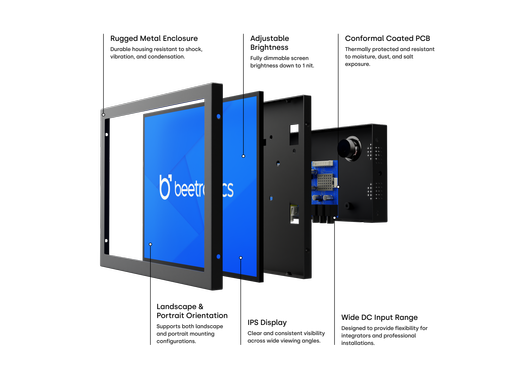

The 10VG7M is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

Mounting Options

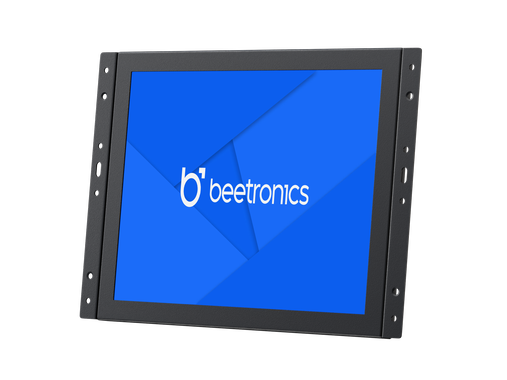

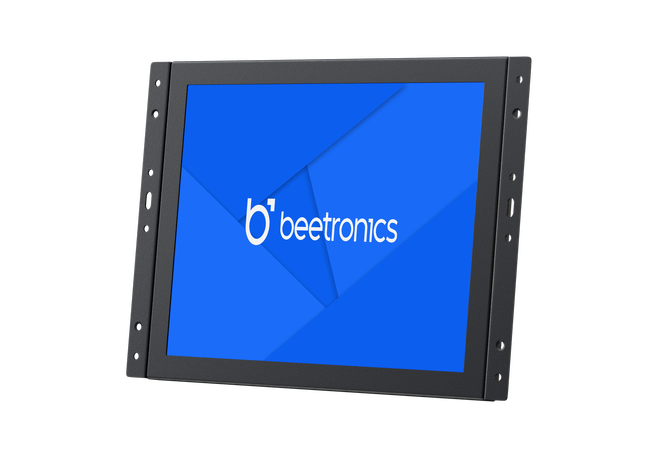

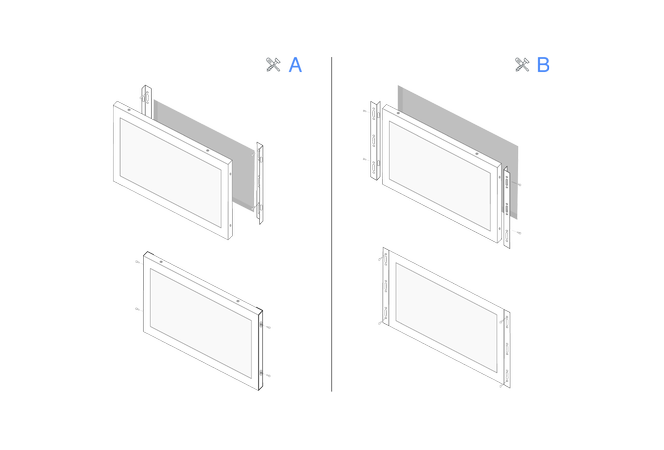

Flush-Mount

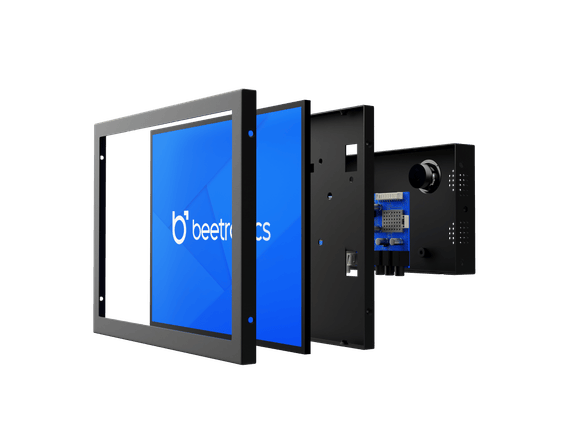

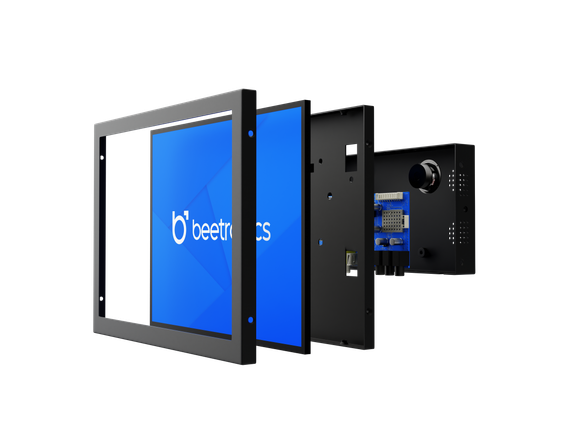

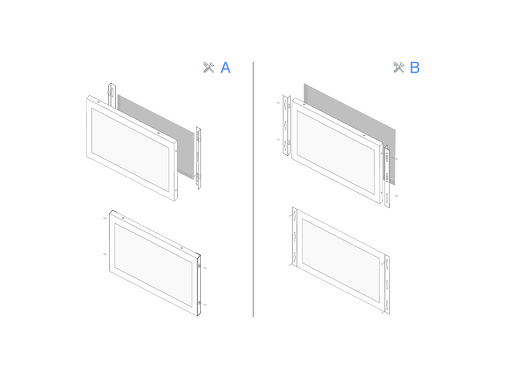

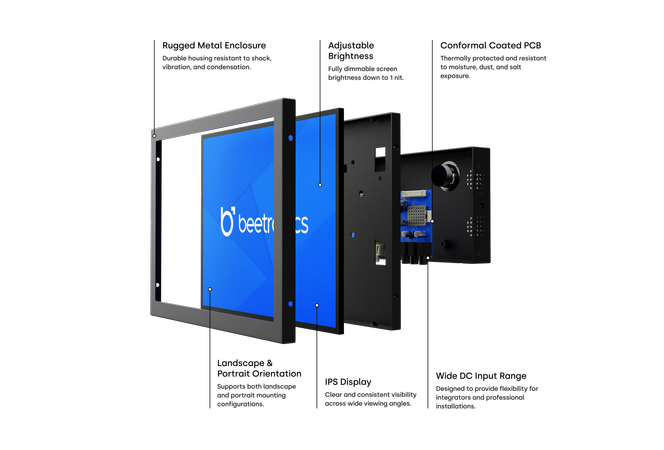

The monitor is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

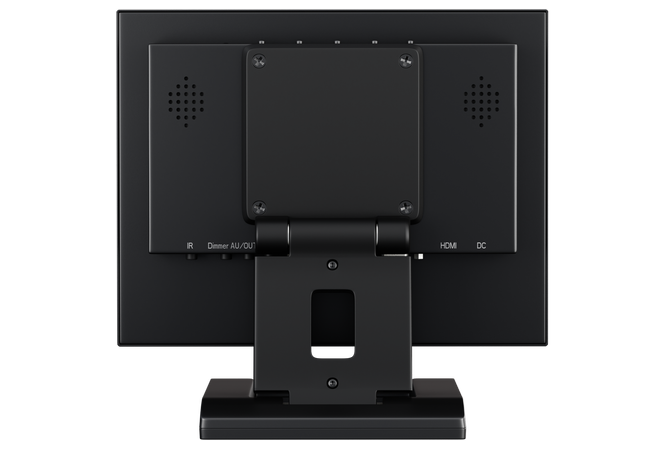

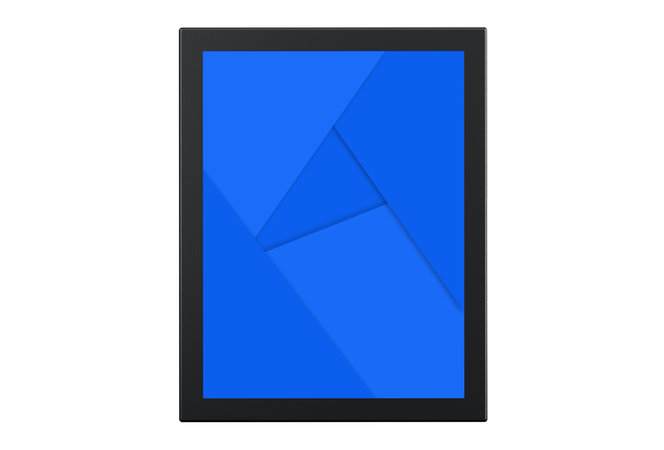

The monitor includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

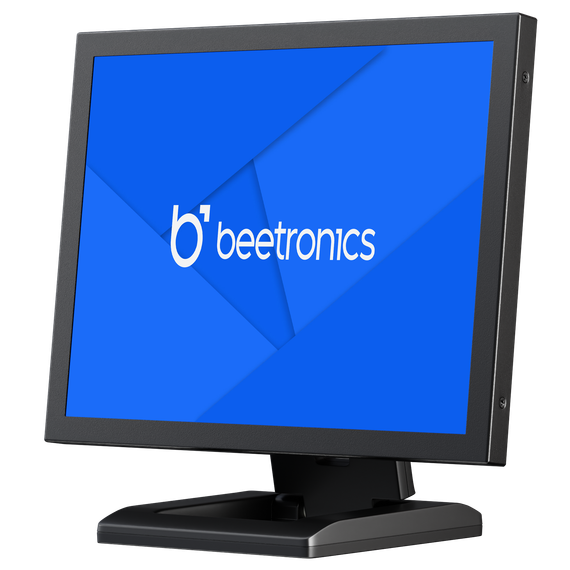

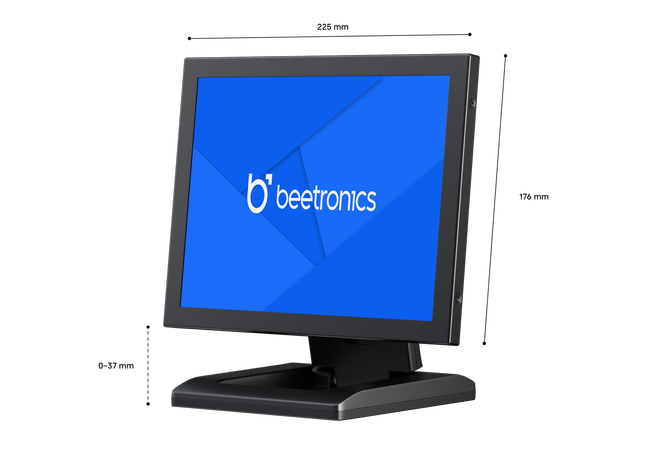

Stand

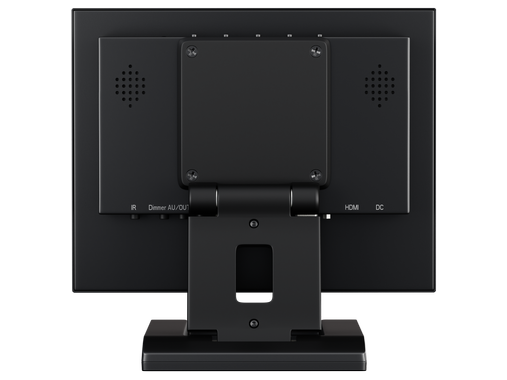

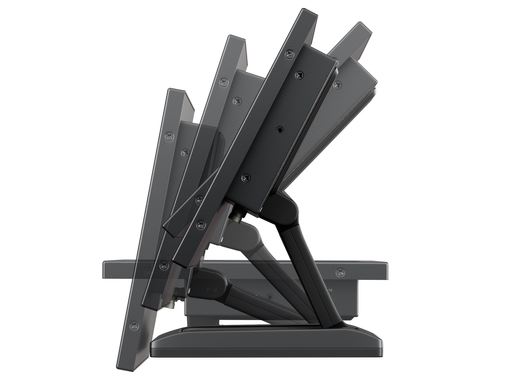

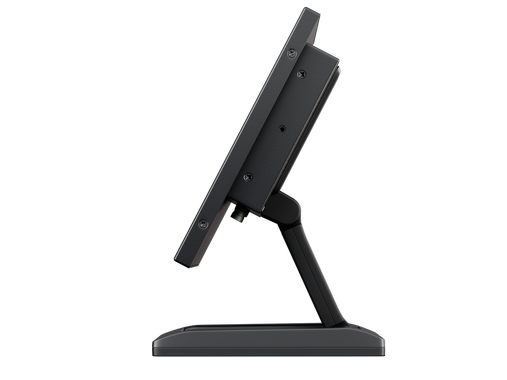

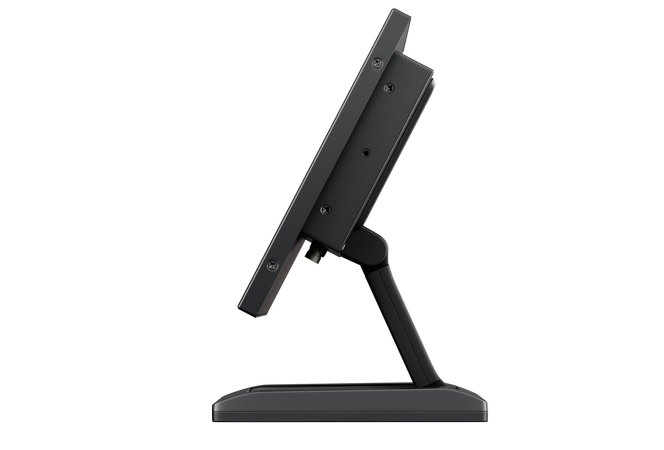

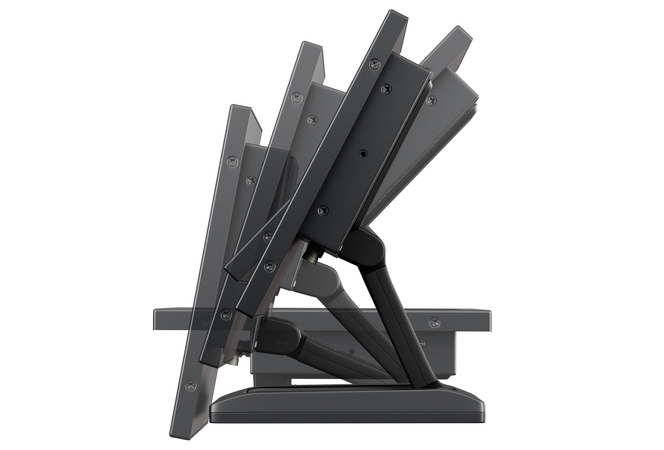

The monitor comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the monitor to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Item Number
10VG7M
Previous Model
10VG3
Product Name
10 Inch Monitor Metal (4:3)
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
9.7 Inches (249 mm)
IPS-LCD
4:3
10 ms
50K
1024 x 768
1920 x 1080 (max), 640 x 480 (min)
132 PPI
LED
350 cd/m2
800:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Connectivity
1x
1x
1x
1x
1x Integrated USB Media Player
1x
1x
Size & Weight
Colour
Black

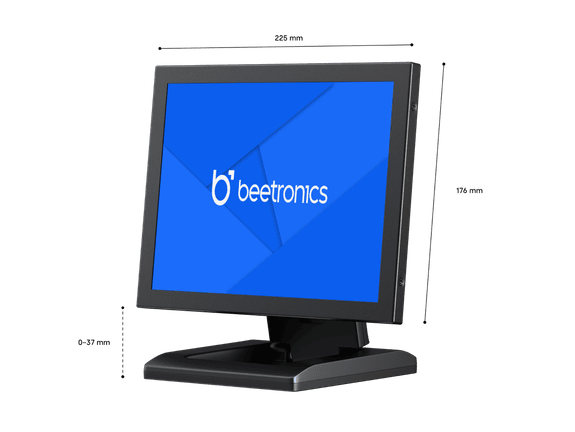

Dimensions (Without Stand)
8.9 x 6.9 x 1.4 Inches
7.8 x 5.9 Inches
2.2 lbs (3.1 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 7.3 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)
Package Content
Includes

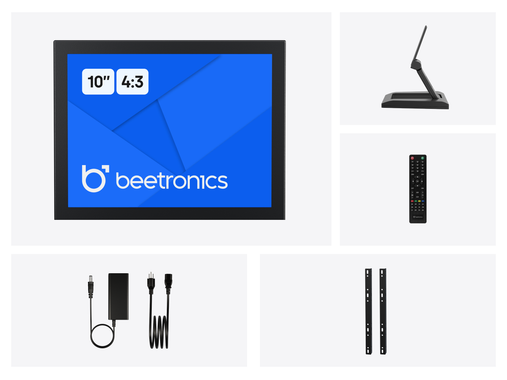

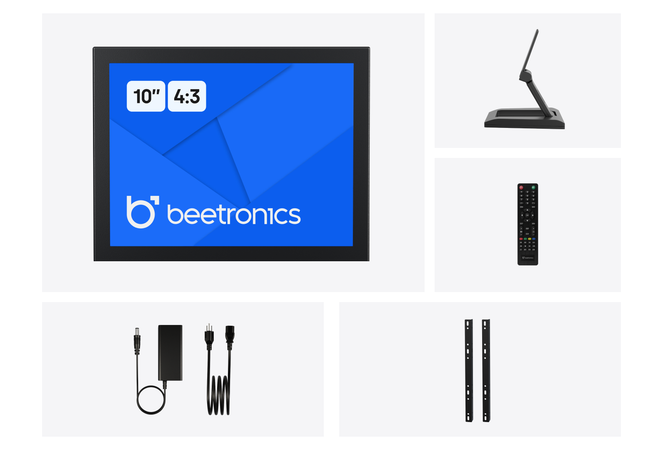

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
