Model: 10HD7
100+ units in stock
Product Information
  1. 1920 x 1200 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop

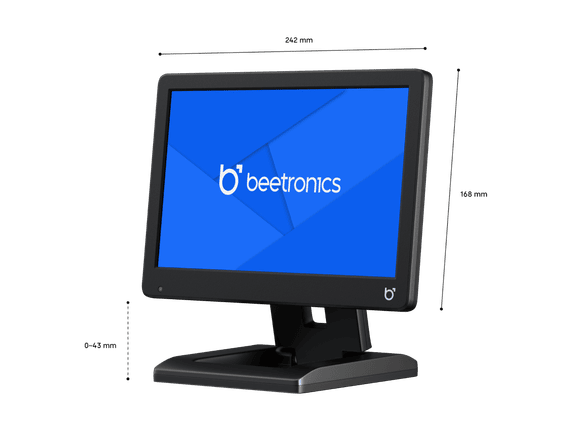

  4. External dimensions: 9.5 x 6.7 x 1.3 Inches
Select Display Type
Display Type
CAD $449.00
Order by 4:30 PM ET for same-day shipping

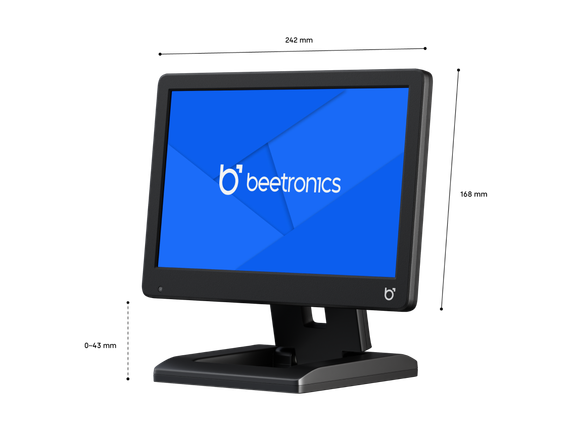

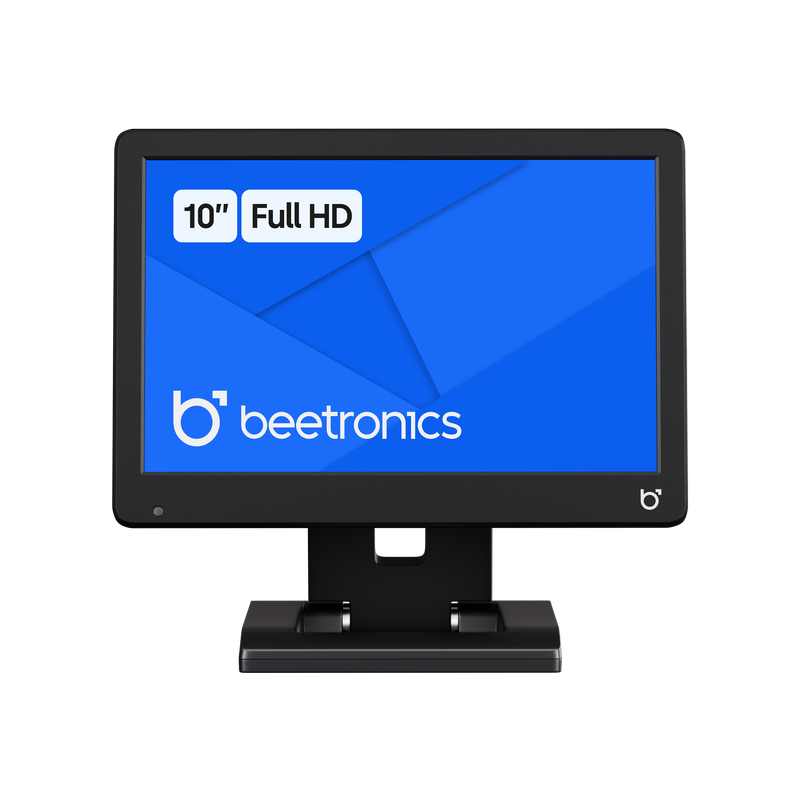

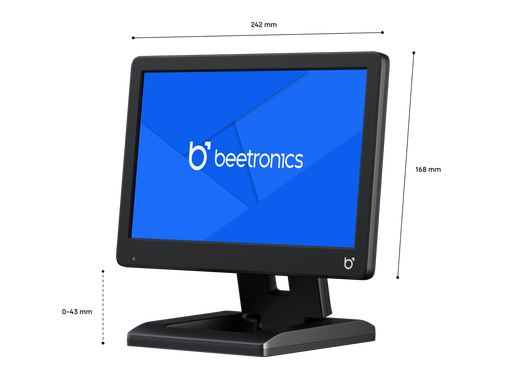

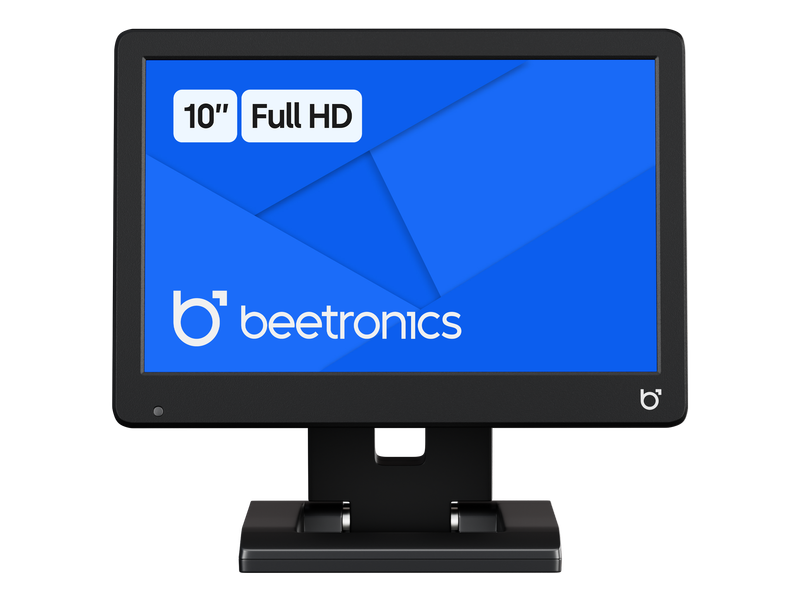

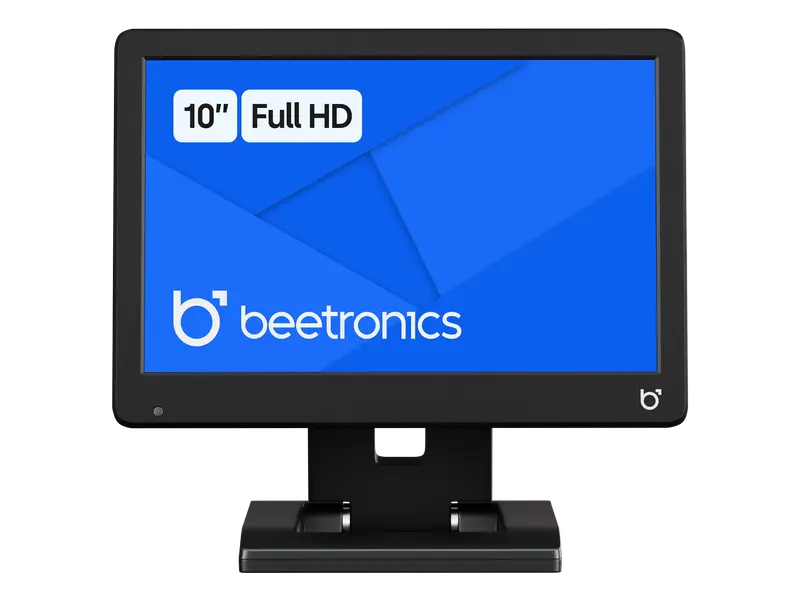

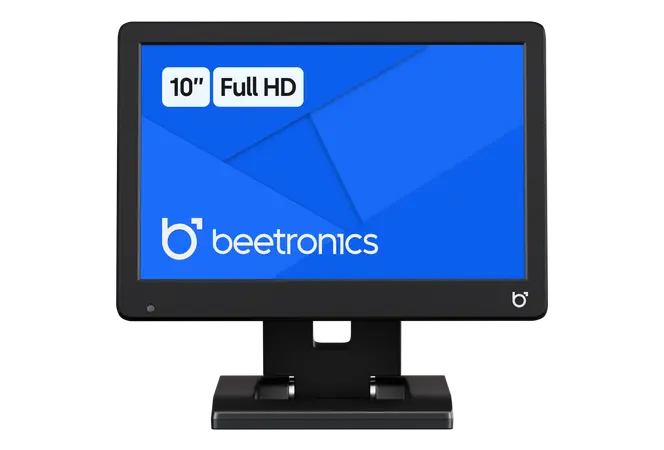

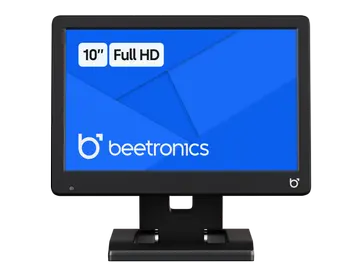

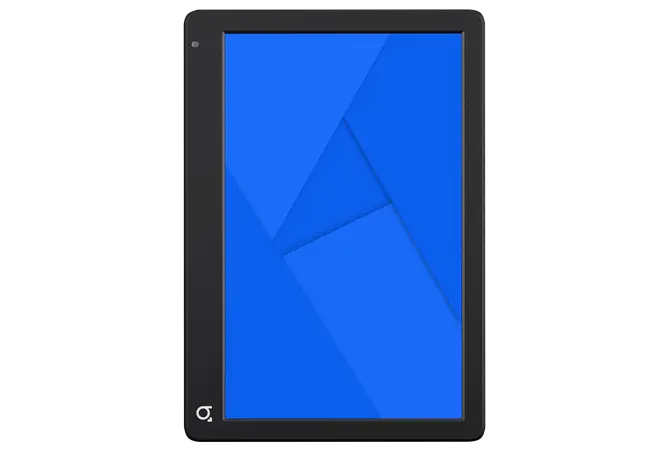

This 10-inch Full HD monitor delivers exceptional picture quality with wide 178° viewing angles. Its lightweight design makes it perfect for both desktop and wall mounting. The 10HD7 provides versatile connectivity options, including HDMI, VGA, BNC, and RCA connections.

Product Highlights
10 Inch Monitor

Exceptional Full HD Picture Quality

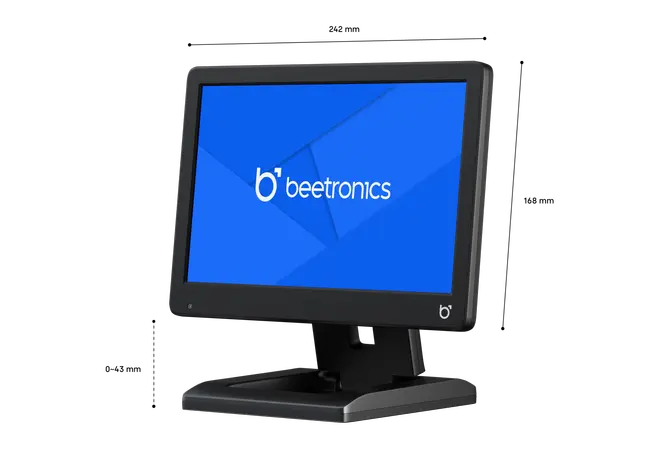

Equipped with a native Full HD IPS panel, this monitor offers outstanding image quality with vibrant colours and excellent 178° viewing angles. The matte screen minimizes reflections, and the contrast, colour, and brightness are easily adjustable. It supports all standard resolutions up to 1080p.

10 Inch Monitor

Versatile Connectivity

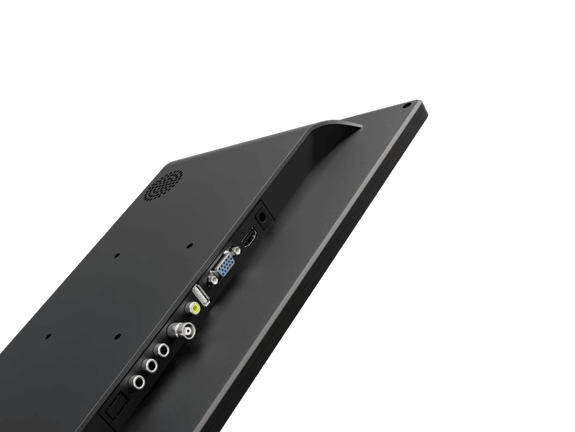

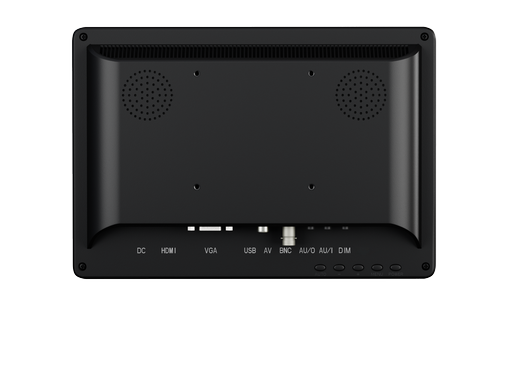

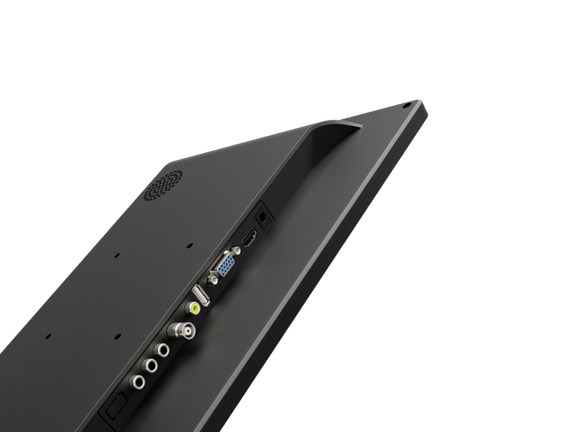

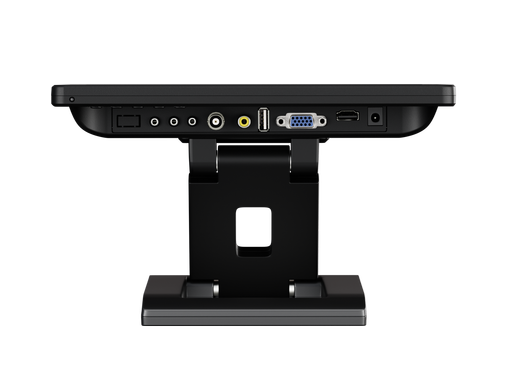

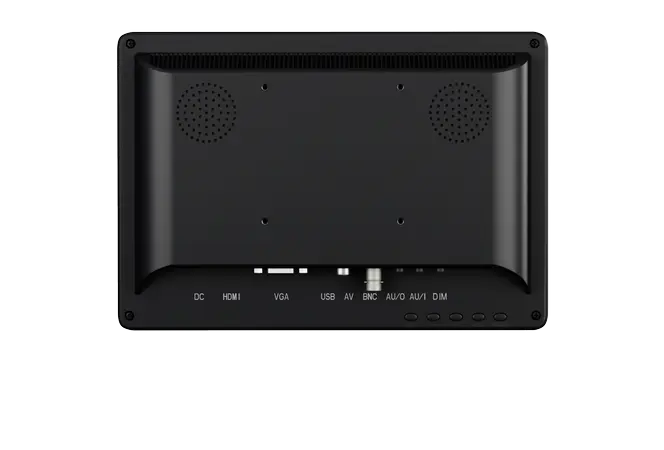

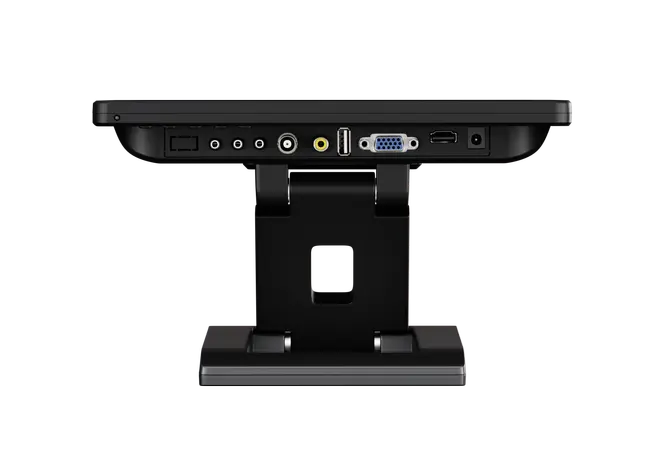

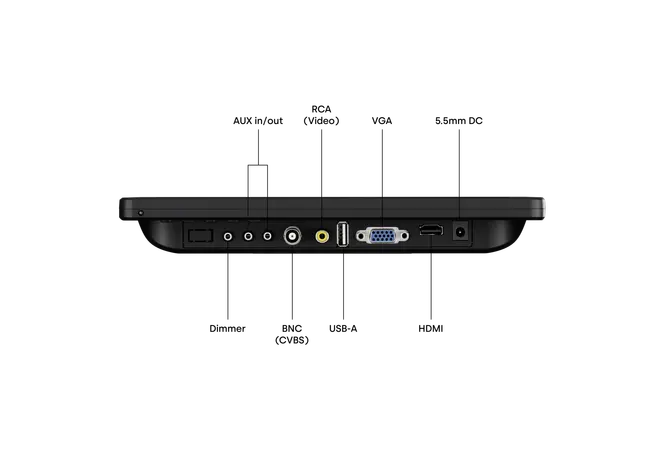

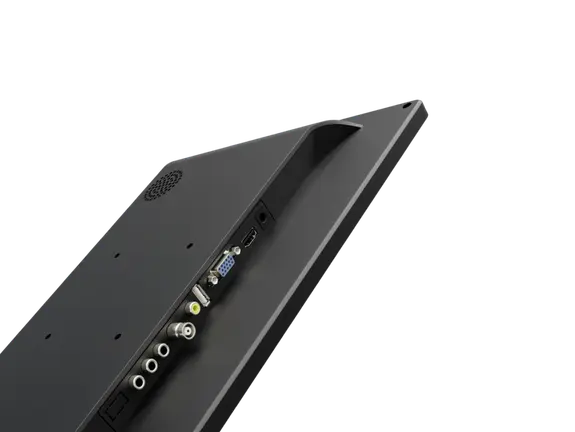

The Beetronics 10HD7 includes HDMI, VGA, BNC, and RCA ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.

10 Inch Monitor

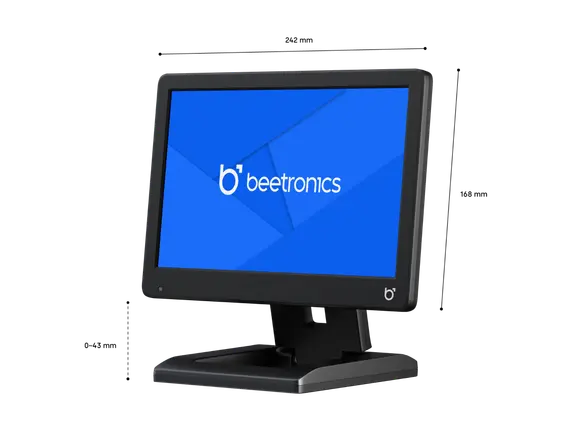

Designed for Professional Use

The 10HD7 is designed for continuous operation and professional use. Crafted with high-quality components, it ensures reliable performance even in the toughest conditions. The monitor supports a wide input voltage range of 9-36 volts and features a fully dimmable backlight.

Mounting Options
Wall Mount

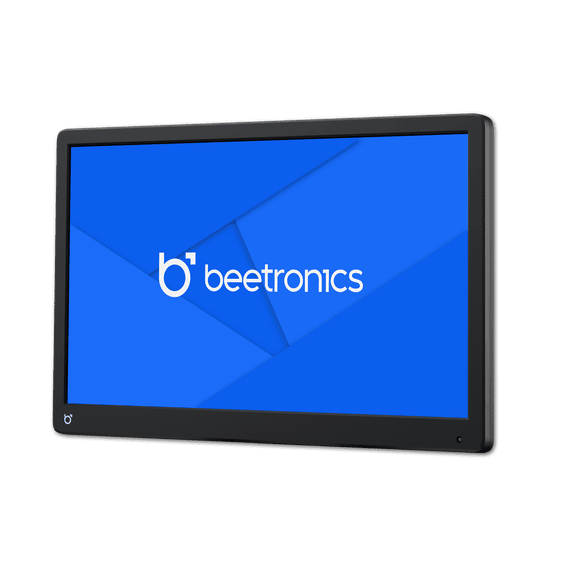

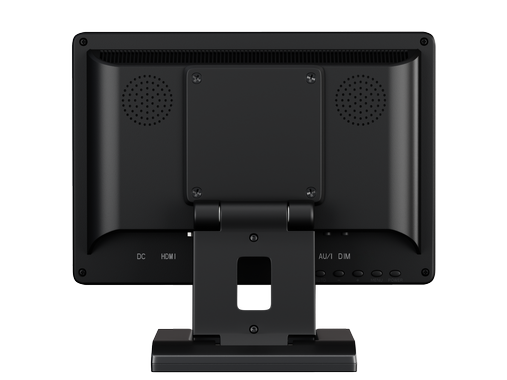

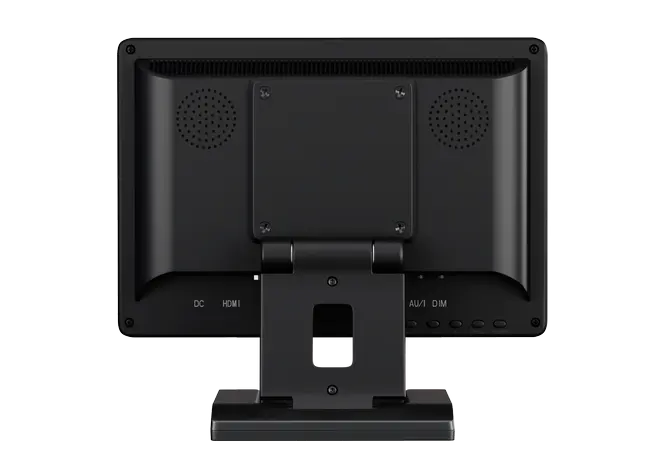

The included stand can be easily removed, giving you access to the universal 75mm VESA mount on the back of the monitor. This makes it possible to mount the monitor in either landscape or portrait orientation using a wide range of universal mounting options, such as monitor arms, wall brackets, ceiling mounts, or pole brackets.

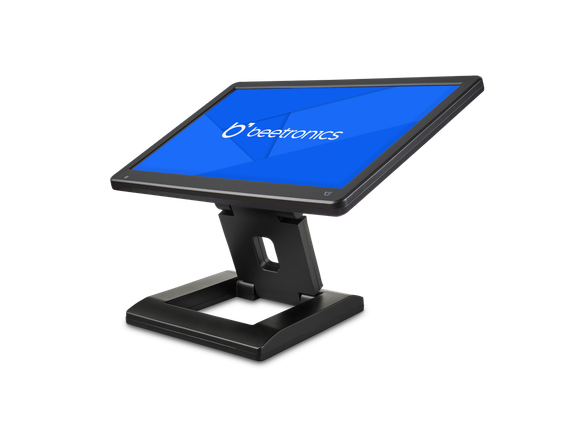

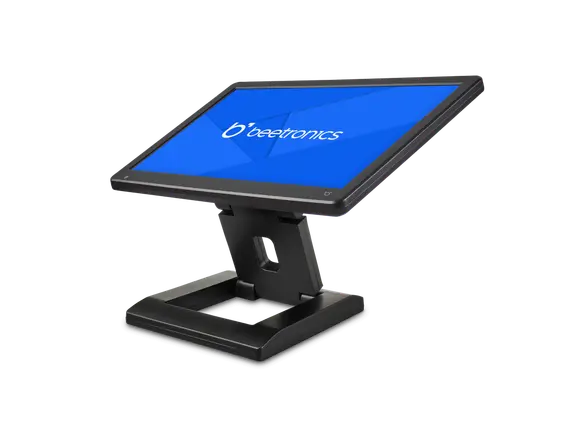

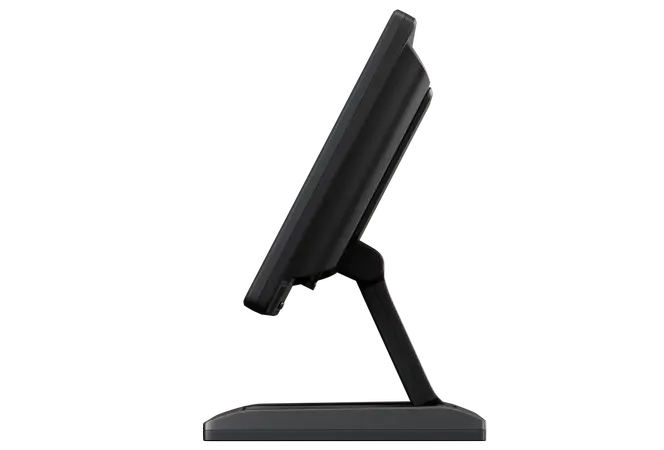

Stand

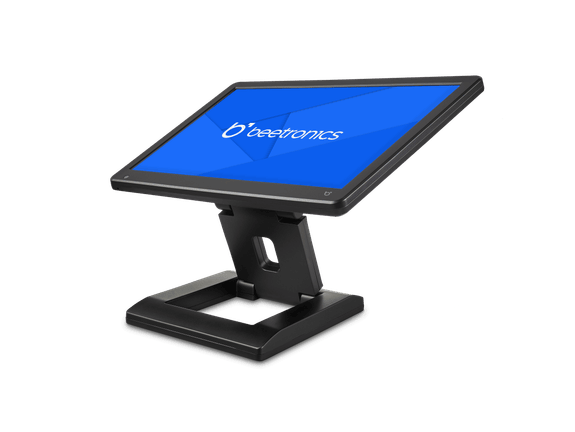

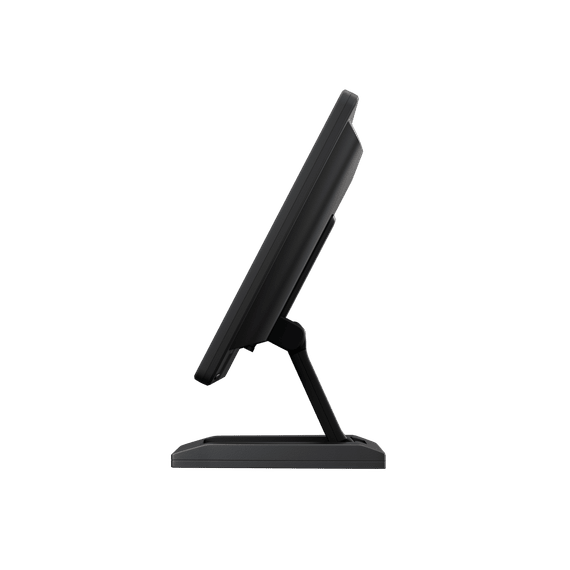

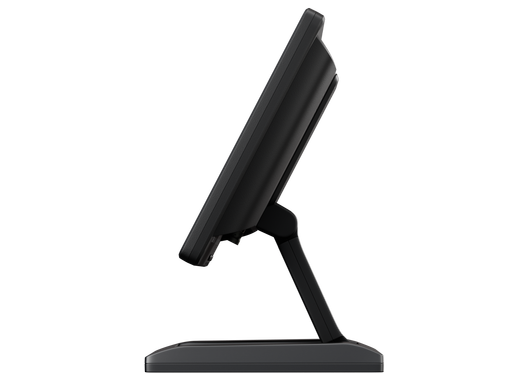

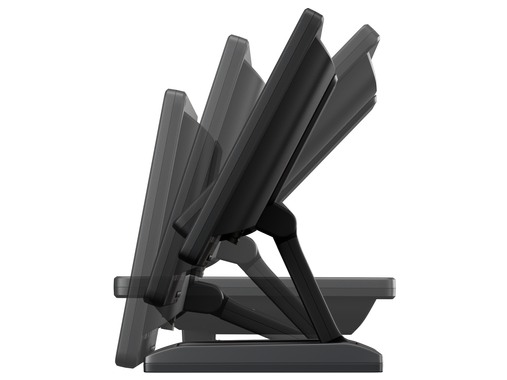

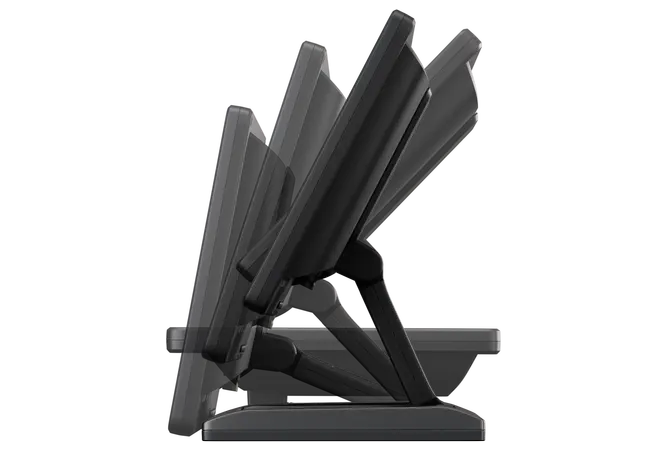

The monitor comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the monitor to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Item Number
10HD7
Previous Model
10HD6
Product Name
10 Inch Monitor
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
10.1 Inches (256 mm)
IPS-LCD
16:10 (16:9, 4:3 Adjustable)
10 ms
50K
1920 x 1200
1920 x 1200 (max), 640 x 480 (min)
224 PPI
LED
300 cd/m2
1500:1
178° Horizontal, 178° Vertical
Connectivity
1x
1x
1x
1x
1x Integrated USB Media Player
1x
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
9.5 x 6.7 x 1.3 Inches
8.5 x 5.4 Inches
1.1 lbs (2.0 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Teleprompter compatible. Image can be horizontally and vertically mirrored.

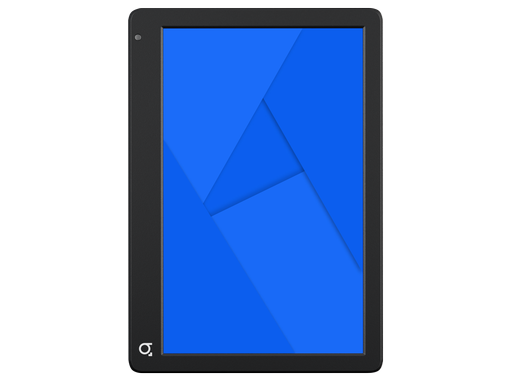

Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 8.6 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

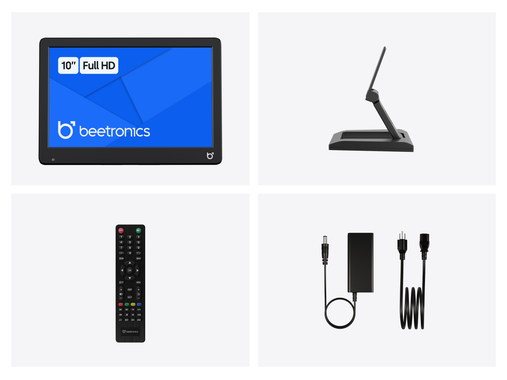

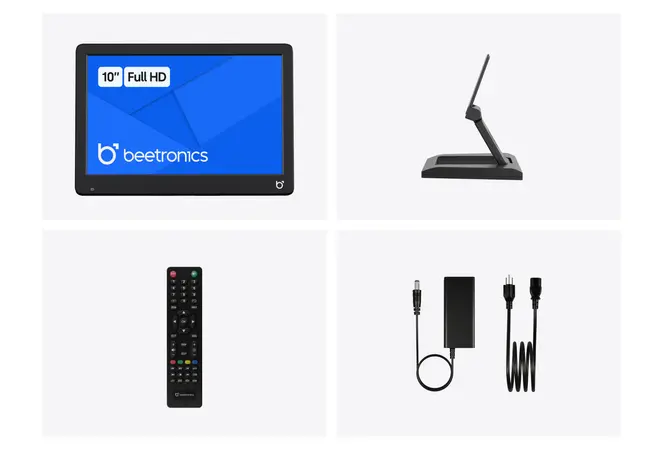

Package Content
Includes
Monitor, Manual, Remote Control, AC Power Adapter, Stand
Compatible Accessories
Rack Mounting
Wall Mounting
Stand
VDK3 Included as Standard
